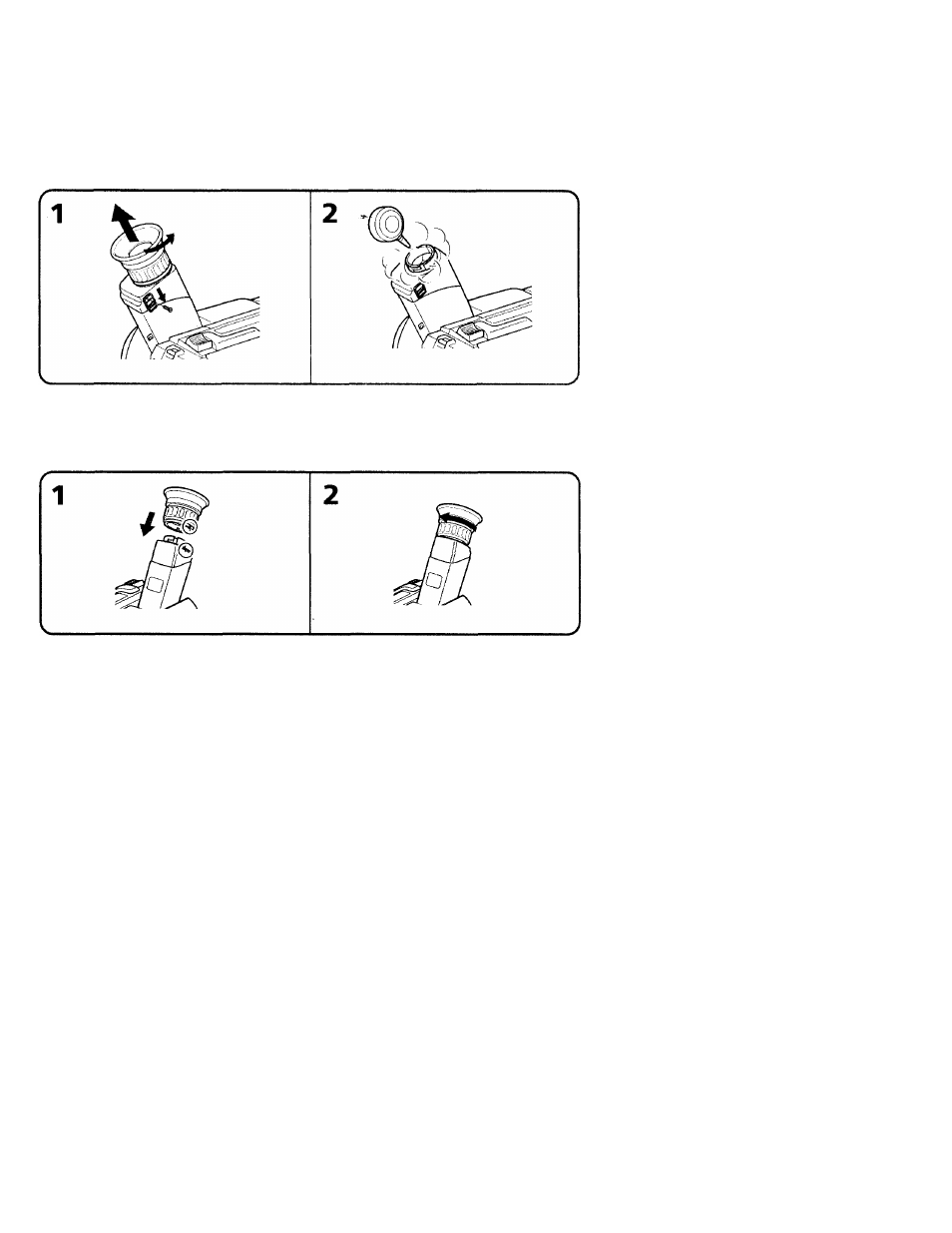

Removing dust from inside the viewfinder
-CCD-TR315 only
(1)
Remove the screw with a screwdri\ er (not supplied). Then, while sliding the
KHhEASE knob, turn the evecup in the direction of the arrow and pull it out.
(
2
) Clean the surface with a blower sold on the market.
To reattach the eyecup
(1)
Align the groove on the eyecup with the • mark on the barrel.
(2)
Turn the eyecup in the direction of the arrow. 1 hen replace the screw.
Caution
Do not remove any other screws. You may remove only the screw to remove the
eyecup.
59
