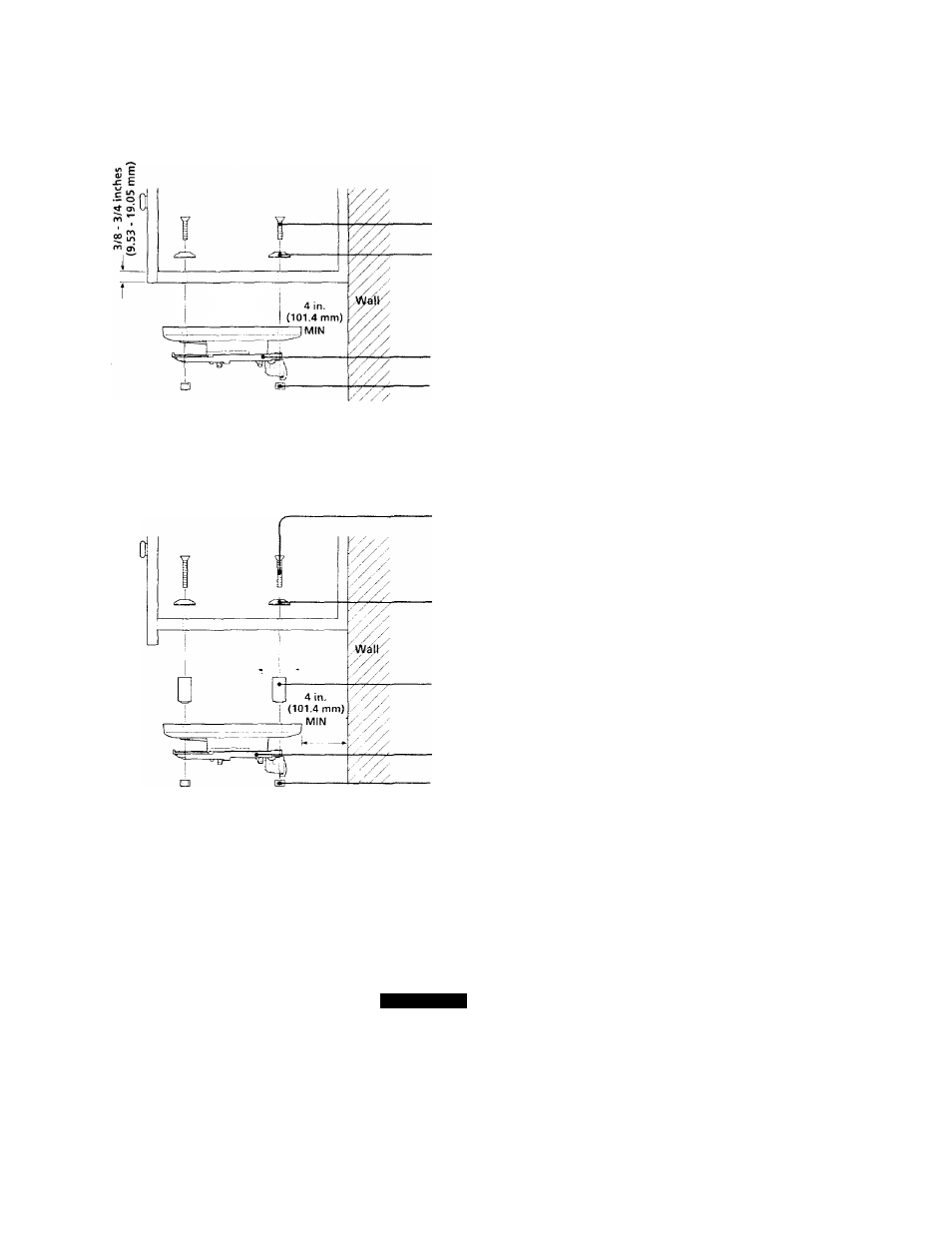

Attaching to a flush type cabinet
- 0 M6
X
40
Phillips screws
B Resin washers
• Shelf installation
bracket
■ H M6 nuts [L=5]
Notes
• You cannot attach the shelf installation bracket to a cabinet with a base thickness of
less than 3/8 inches (9.53 mm).
• If the cabinet base thickness is over 3/4 inches (19.05 mm), purchase longer screws
(#10-32) and nuts at a hardware supply store.
Attaching to an overhanging type cabinet
0 M6 X 70
Phillips screws
B Resin washers
0 Spacers [L=30]
Shelf
installation
bracket
■ B M6 nuts [L=5]
Notes
• The spacer is not needed for the cabinet with an overhang of 0 - 1 inch (0 - 25.4
mm).
• The spacer is needed for the cabinet with an overliang of 1 - 2 inches (25.4 - 51
mm).
• You cannot attach the shelf installation bracket to cabinet with an overhang of over
2 1/8 inches (51 mm).
Cautions
• When using the shelf installation bracket to attach the TV to a kitchen shelf or
cabinet, be sure that the bracket is attached level to the .shelf or cabinet base. If the
TV is installed to a bracket that is not level, it may fall from the bracket.
• To reduce the risk of fire, do not place anv heating or cooking appliance beneath
TV.
