Cassette compartment lid release knob
(P-9)
Power zoom button
(p, 12)
Eject button (under the cover)
(p. 9)
Hooks for shoulder strap
(See below.)
Battery mounting surface
(p. 8)
Cassette compartment
(p. 9)
MIC jack (PLUG IN POWER)
Connect an external microphone (not
supplied). This jack also accepts a "plug-in
power" microphone.
RFU DC OUT (RFU adaptor DC output) jack
(p. 15)
h
ZI
Audio/Video output jacks
(p. 15)
Jack cover
Si LANC
C
control jack
C
stands for Local Application Control Bus
System. The
C
control jack is used for
controlling the tape transport of video
equipment and peripherals connected to it.
This jack has the same function as the jack
indicated as CONTROL L or REMOTE.
S3 0 (Headphones) jack
S]]
Grip strap
(p. 13)
Si Lithium battery compartment
(p. 31)

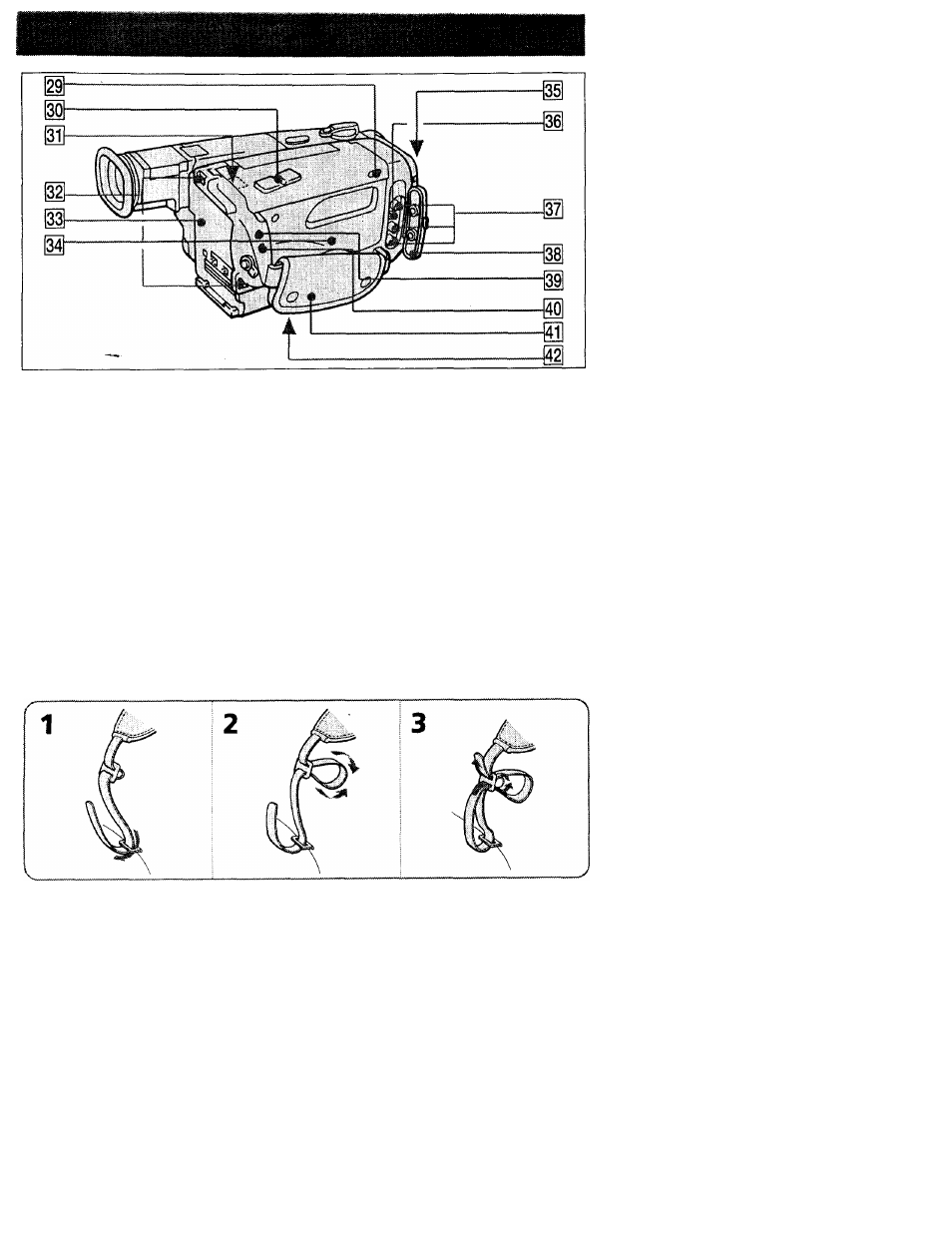

Attaching the Shoulder Strap
Attach the supplied shoulder strap to the hooks for the shoulder strap ([
