Connection

Notes on Connection

• Turn off the amplifier before making connections.
• Be sure to insert the plugs firmly into the jacks. Loose connections may cause hum and noise.
■ Leave a little slack in the connecting cord to allow for inadvertent shock or vibration.
• Connect the red plug of the supplied connecting cord to the right-channel jack (R) of the amplifier and the white plug to the

left-channel jack (L). Otherwise, the right and left channels will be reversed.

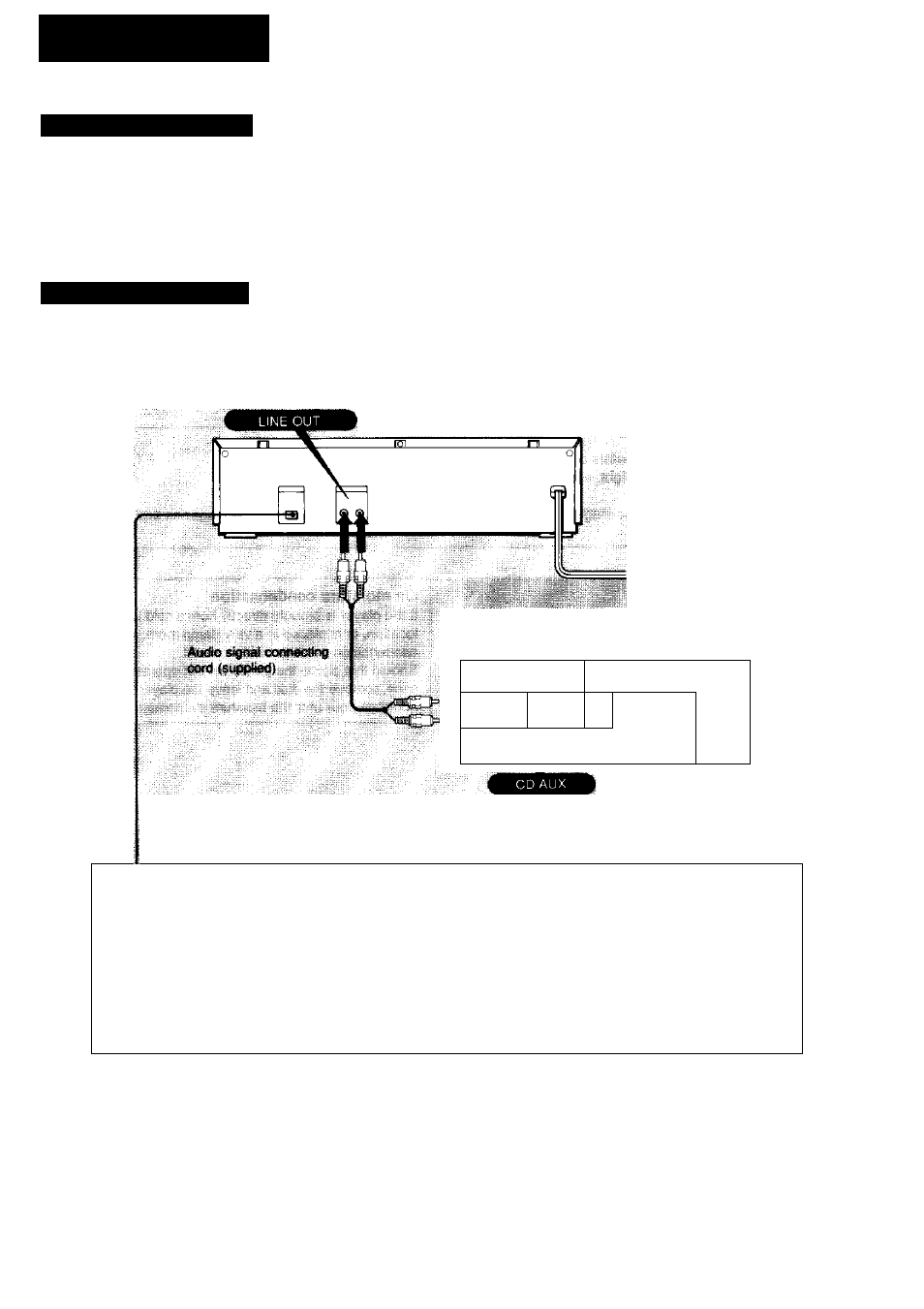

Connection Diagram

Connecting the

directly

COP-C9ESD/COP-C900

to an AC outlet

Amplifier

1 ® ®

® ®

loobol

bolool '

to an AC outlet

Using the DIGITAL OUT jack

Detach the cap.

Optical cable (optional)

r^l to an amplifier or a D/A converter

Note on the DIGITAL OUT jack

Connect the DIGITAL OUT jack to the amplifier or D/A converter

with the optical digital input only. When you connect, use the

optional optical cable POC-15. When only the optical out is

connected, you cannot use fade out and in function.
