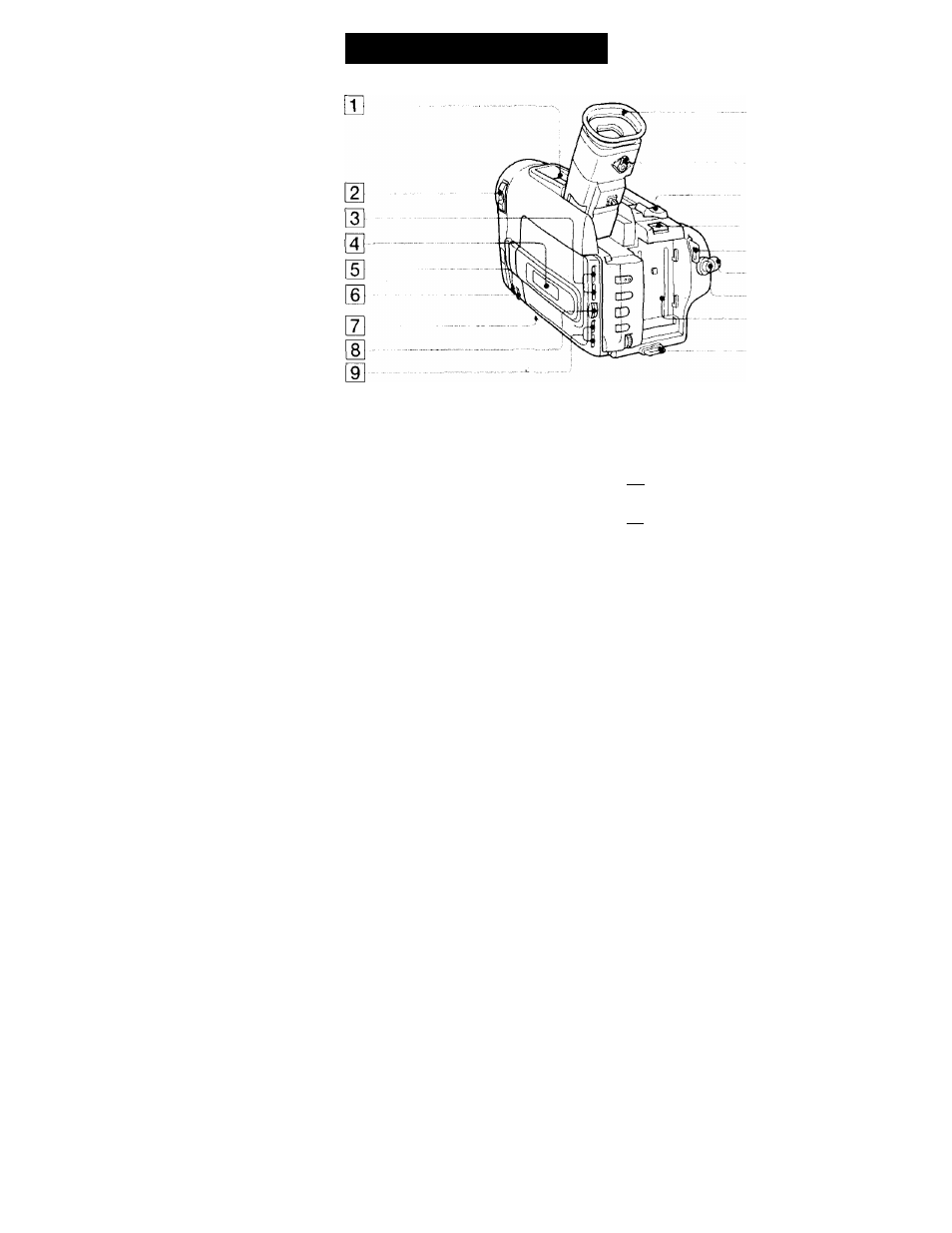

Identifying the parts
1 0
11
-01
-03
15
.01
Intelligent accessory shoe
2
POWER switch
(p. 11)
3 LCD BRIGHT buttons (p lò)
4
Display window
(p. 81)
;1 NEAR/FAR dial
(p. 37)
¡6"
FOCUS switch
(p. 37)
L7
Tripod receptacle
(p. 19)
Make sure that the length of the tripod
screw is less than 9/32 inch (6.5 mm)
otherwise, you cannot attach the tripod
securely and the screw may damage the
camcorder.
(8^
OPEN button
(p. 16)
^ VOLUME buttons
(p. 22)
Л Eyecup
111 Viewfinder lens adjustment lever
(CCD-TRV72/TRV82only) (p. 12)
[12, Power zoom lever
(p. 14)
m
ВАТТ RELEASE (PUSH) lever
(p. 9)
[14; Hook for shoulder strap
(p 80)
m
STANDBY switch
(p. 1 I)
m START/STOP button (p. 11)
[T7 Battery mounting surface
[ll;
Hook for shoulder strap
(p. 80)
Note on the intelligent accessory shoe
Supplies pov\'er to optional acce.s.sories such as a video light or microphone. The
intelligent accessory shoe is linked to the STANDBY switch, allowing you to turn on
and off the power supplied by the shoe. Reter to the instruction manual of the accessory
for further information. To connect an accessory, press down and push it to the end,
and then tighten the screw. To remove an accessory, loosen the screw, and then press
down and fnill out the accessory.
