Chapter 2 Getting Started
11
2. Double-click on the Network icon, the network configuration window shall be
displayed, as shown in Figure 2.2.1-1.
3. Double-click on the TCP/IP that is bound to your network adapter, the TCP/IP
configuration window shall be displayed, as shown in Figure 2.2.2-1.
Type in the IP Address and
Subnet Mask of
192.168.168.X and
255.255.255.0 respectively.

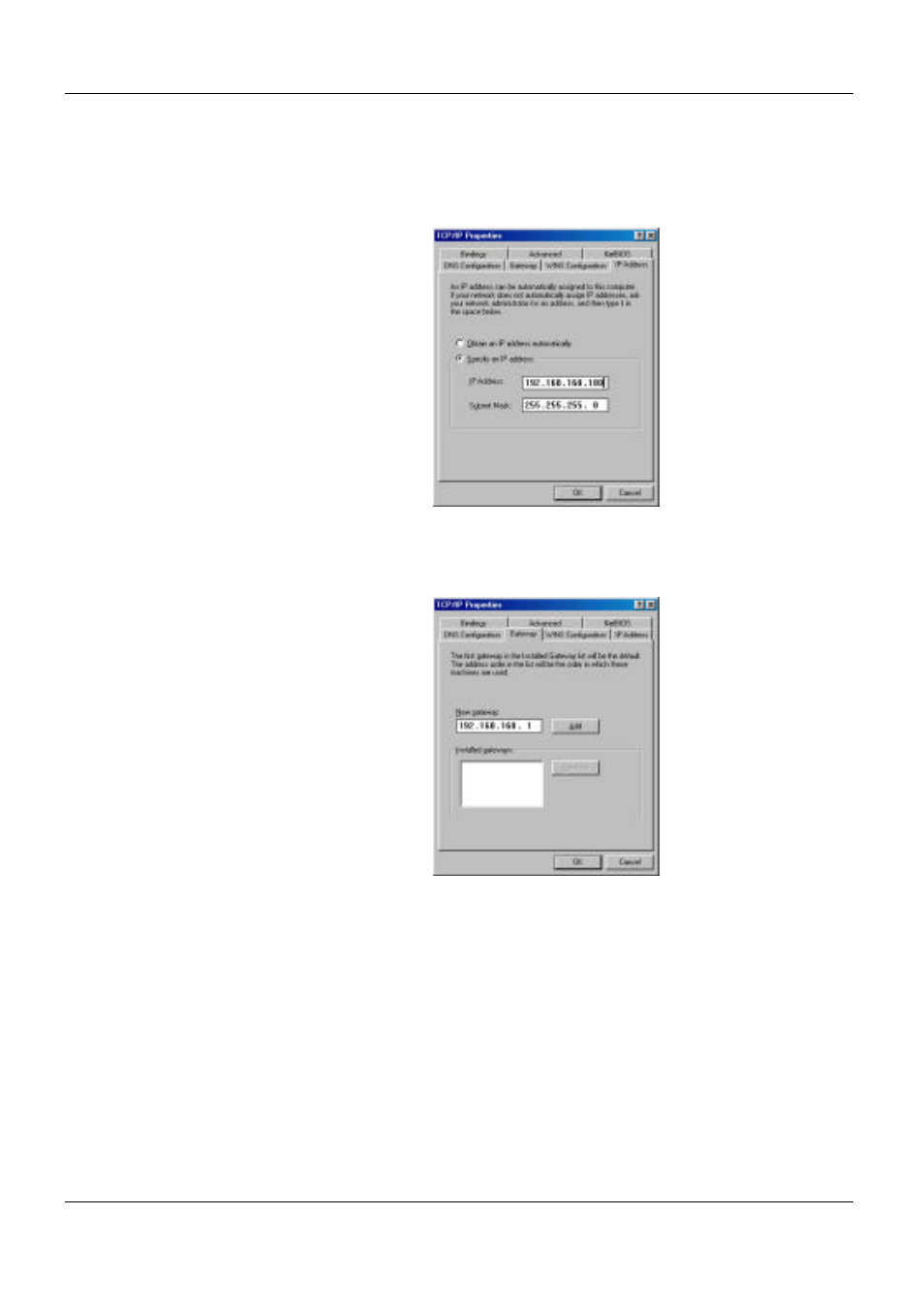

Figure 2.2.2-1
Network Configuration
Window
4. Select Gateway from the menu and the gateway configuration page shall be
displayed, as shown in Figure 2.2.2-2.
Type in the New gateway
as 192.168.168.1 and press
the Add button.
Figure 2.2.2-2
Gateway Configuration
Window
5. Select DNS Configuration from the menu and the DNS configuration page shall
be displayed, as shown in Figure 2.2.2-3.
