Chapter 3: Connecting To The Network
Page 3-2 EMC39-12 User’s Guide
To connect the EMC39-12 to a 10BASE-T compliant Ethernet device:

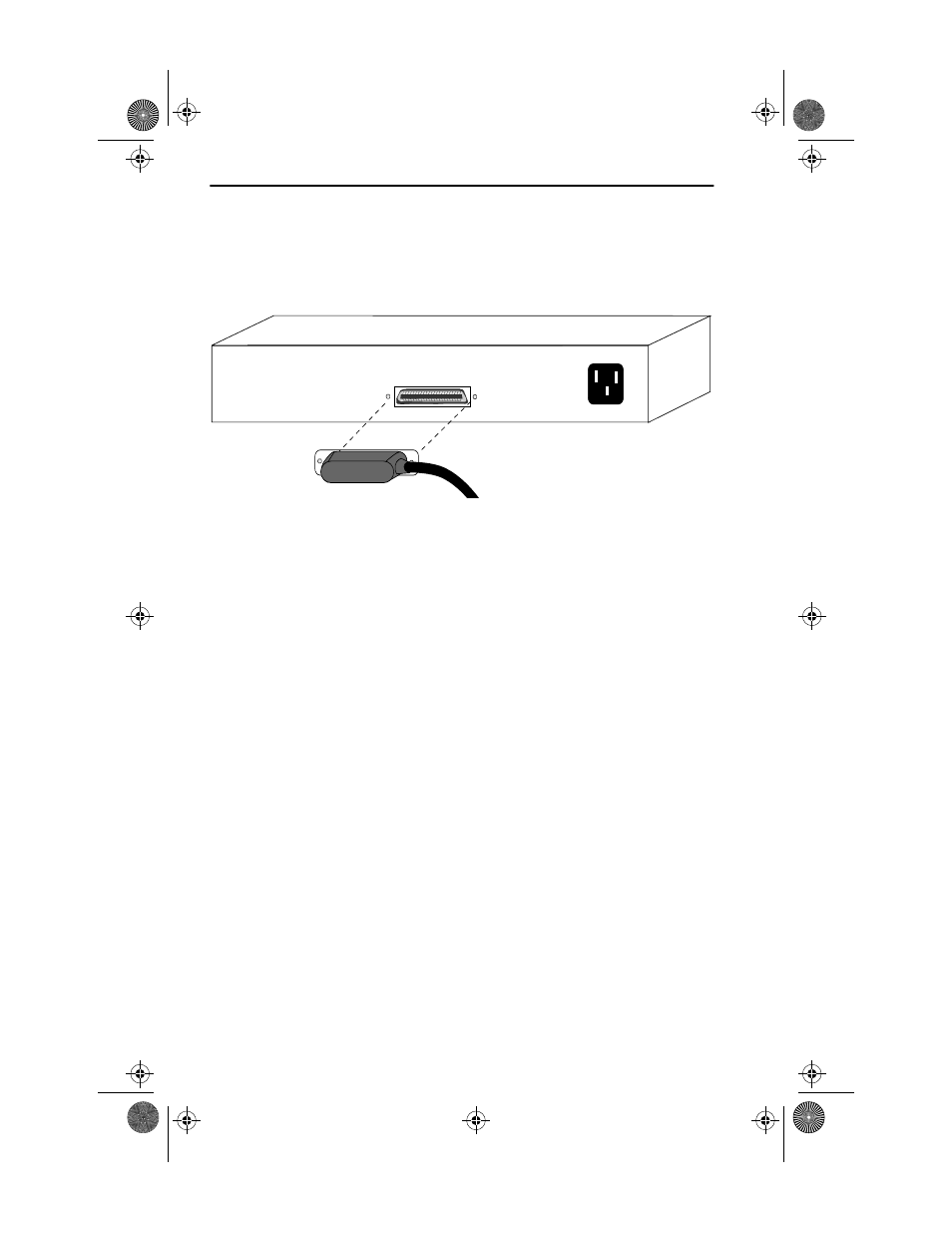

1. Attach a 50-pin feeder cable to the Champ connector on the
EMC39-12 as shown in Figure 3-1.
Figure 3-1 EMC39-12
2. Attach the other end of the 50-pin feeder cable to the Champ connector
on the 10BASE-T compliant Ethernet device.
3. Check that the link LED on the 10BASE-T ethernet device and the
applicable TPLNK LED on the EMC39-12 are on. If the LEDs are not
on, perform each of the following steps until the LEDs are on:
a. Check that the 10BASE-T device and the EMC39-12 have power.
b. Verify the cabling between the EMC39-12 and the 10BASE-T
device.
c. Check the cable for continuity.
If a link has not been established, contact Cabletron Systems Technical
Support.
EMC39-12 Ethernet Media Converter WITH LANVIEW
12X 1X
