Figure 2-1 installing the rackmount brackets, Screws (4) rack mounting brackets (2) – Cabletron Systems EMC39-12 User Manual

Page 13

Chapter 2:

Installation

Page 2-2

EMC39-12 User’s Guide

2.2.1 Rack Mounting the EMC39-12

Before installing the EMC39-12, care must be taken to ensure that the
rack used will support the unit and that the rack remains stable with the
EMC39-12 installed. In order to allow for proper cooling within the rack,
there must be a two-inch clearance on either side of the unit. Refer to
Chapter 1,

Introduction

for power and environmental requirements.

The following procedures explain how to install the EMC39-12 in a
19-inch rack.

1. Remove four cover screws (two from each side) located along the

front edges of each side of the EMC39-12. Figure 2-1 shows the
location of the screws.

2. Using the four cover screws removed in step 1, attach the rack

mounting brackets to each end of the EMC39-12.

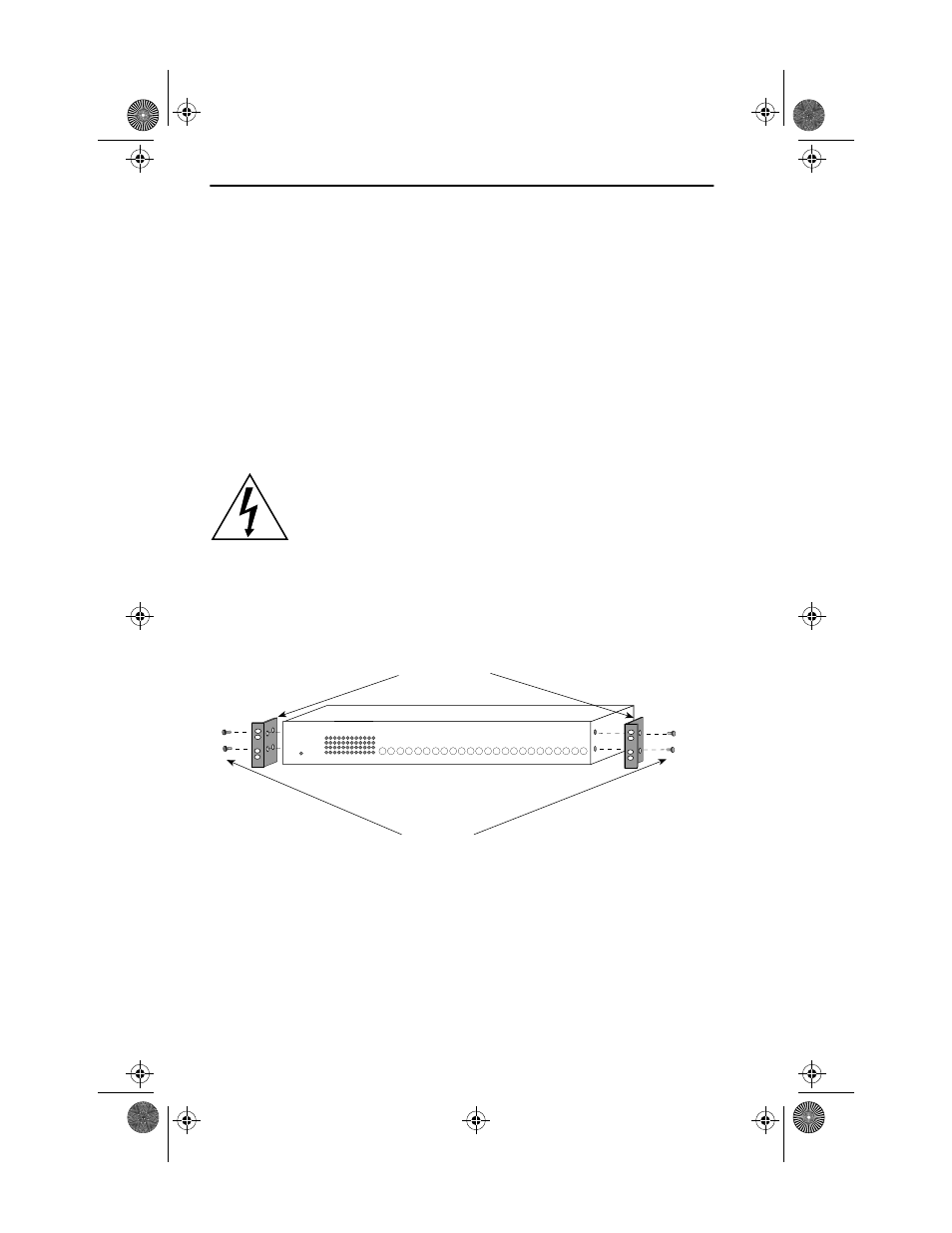

Figure 2-1

Installing the Rackmount Brackets

Do not remove the cover from the EMC39-12. There are no
user configurable devices inside and the electronics are
static sensitive.

Screws (4)

Rack Mounting

Brackets (2)

EMC39-12

Ethernet Media Converter

WITH

LANVIEW

TPLINK

XMT

RCV

FOLNK

12 11 10 9 8 7 6 5 4 3 2 1

PWR

RX TX

emc39bk Page 2 Monday, February 12, 1996 4:21 PM
