Installing The EMC39-12
EMC39-12 User’s Guide Page 2-3
3. With the rack mounting brackets installed, position the EMC39-12
between the vertical frame members of the 19-inch rack and fasten it
securely with the mounting screws as shown in Figure 2-2.

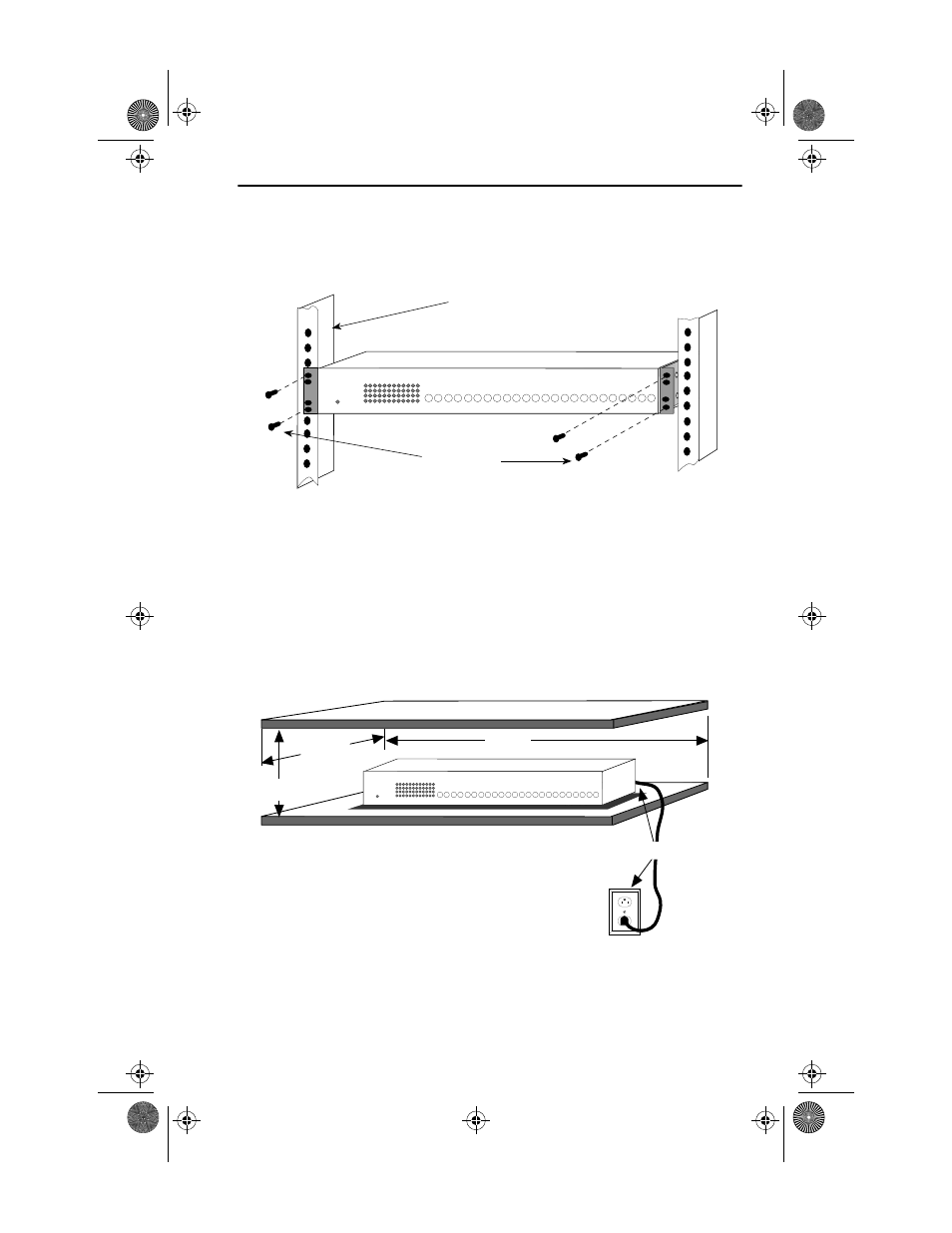

Figure 2-2 Installing the EMC39-12 in a 19-Inch Rack
2.2.2 Free-Standing Shelf or Tabletop Installation
Figure 2-3 shows the surface requirements for installing the EMC39-12
on a shelf or tabletop. Shelving units must support 30 pounds of static
weight. Before you install the EMC39-12, ensure the power source and
environmental conditions meet the requirements specified in Chapter 1,
Introduction .
Figure 2-3 Shelf or Tabletop Installation
Screws (4)
19-Inch Rack
EMC39-12 Ethernet Media Converter WITH LANVIEW
TPLINK
XMT
RCV
FOLNK
12 11 10 9 8 7 6 5 4 3 2 1
PWR
12 10 9 8 7 6 5 4 3 2 1
RX TX RX TX RX TX RX TX RX TX RX TX RX TX RX TX RX TX RX TX RX TX RX TX
11
21 IN.
6 IN.
18 IN.
EMC39-12 Ethernet Media Converter WITH LANVIEW
RX TX RX TX RX TX RX TX RX TX RX TX RX TX RX TX RX TX RX TX RX TX RX TX
1
TPLINK
XMT
RCV
FOLNK 12 11 10 9 8 7 6 5 4 3 2 1 PWR
12 11 10 9 8 7 6 5 4 3 2
7 FT.
