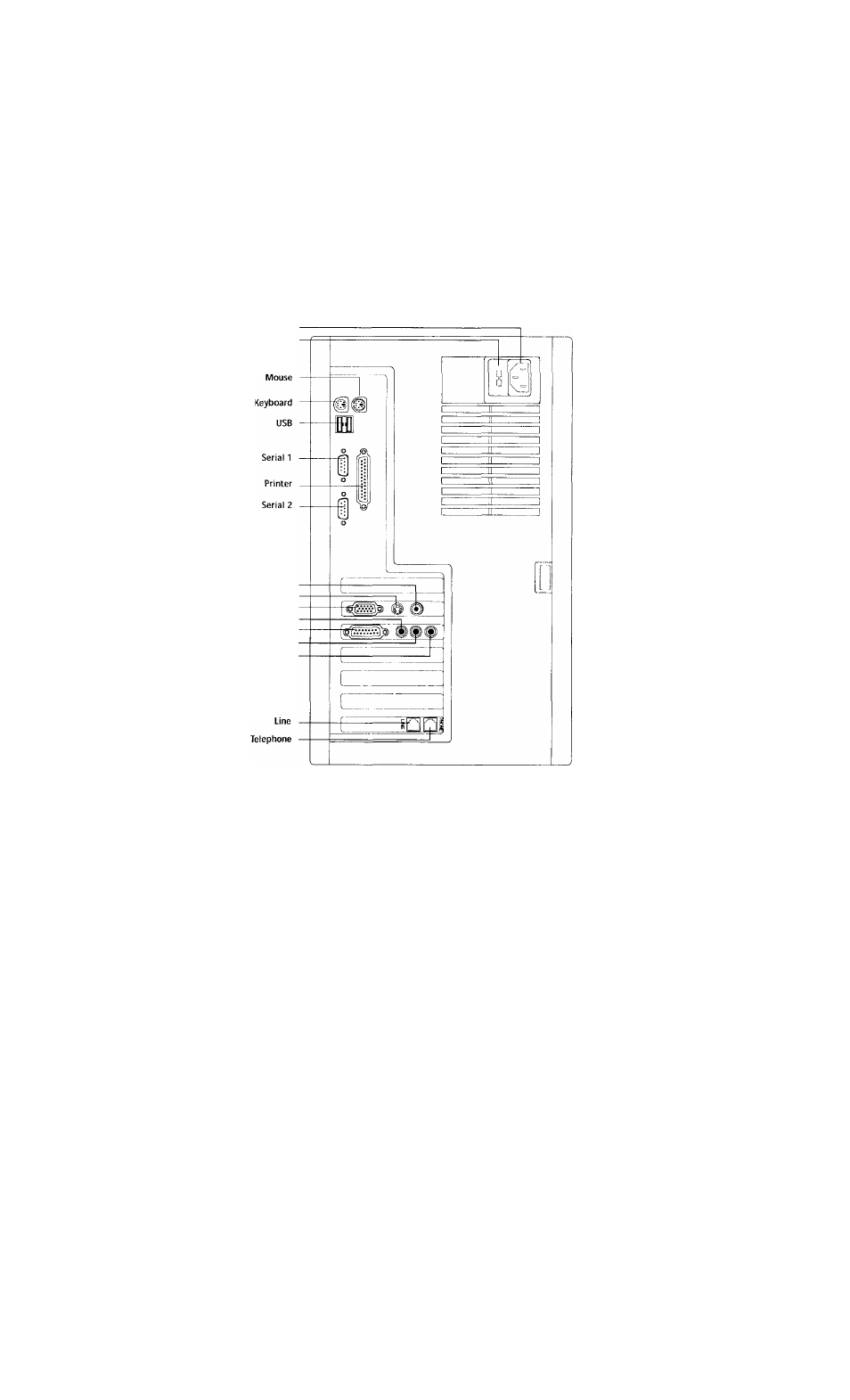

Back Panel Overview
The back panel of your Sony PC contains the connectors where you plug
in supplied and optional accessories. The icons on the back panel serve as
a map to help you locate the connectors on your PC.
Power
Voltage Switch
Composite Video Out
■ S VIDEO Out
Monitor
Microphone
Game/MIDI
Line In
Phones
^ To maximize available resources, the Serial 2 port on your Sony PC is disabled by default. You
can enable the Serial 2 port by using the BIOS setup utility. For detaih^ee "Accessing the
BIOS Setup Utility" in the online Sony PC Reference Manual.
