Connecting a Display, Speakers,
and a Microphone
If you did not purchase the Sony Multimedia Computer Display, you
need speakers and a microphone to use the Sony PC’s audio features.
^ If you're connecting the Sony PC to a TV or other video component, see "Connecting a
Television (Audio/Video Out)" on page 14.
Make sure your speakers are designed for computer use. See the manuals that came with your
display, speakers, and microphone for more information on setting them up and using them.

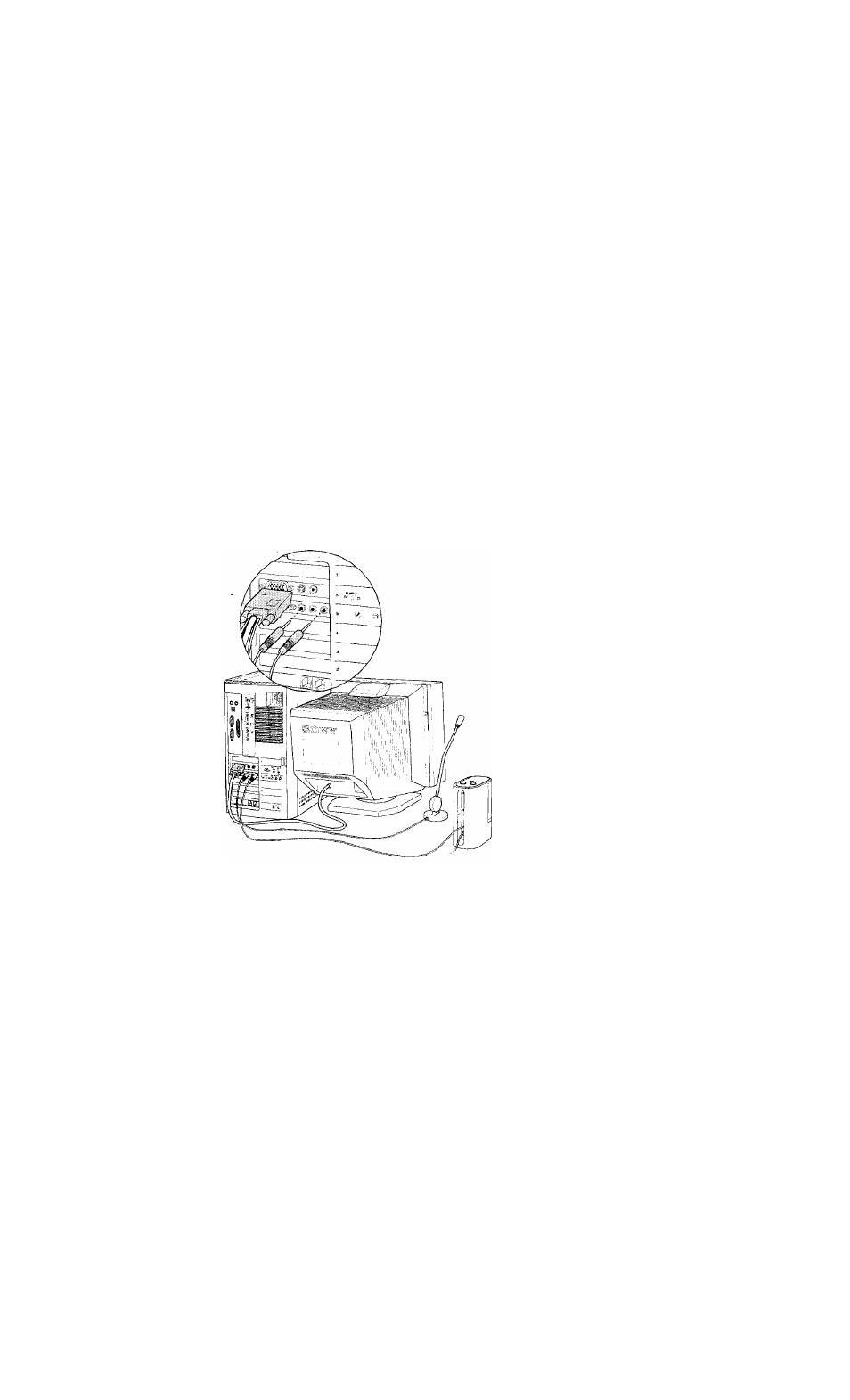

1
Use the blue Q symbol to locate the
MONITOR
connector. Plug the
display cable into this connector, and then tighten the two screws to
secure the cable.
2
Use the green
H
symbol to locate the
PHONES
connector. Plug the
speaker cable into this connector.
3
Use the red
y*
to locate the
MIC
connector. Plug the microphone cable
into this connector.
