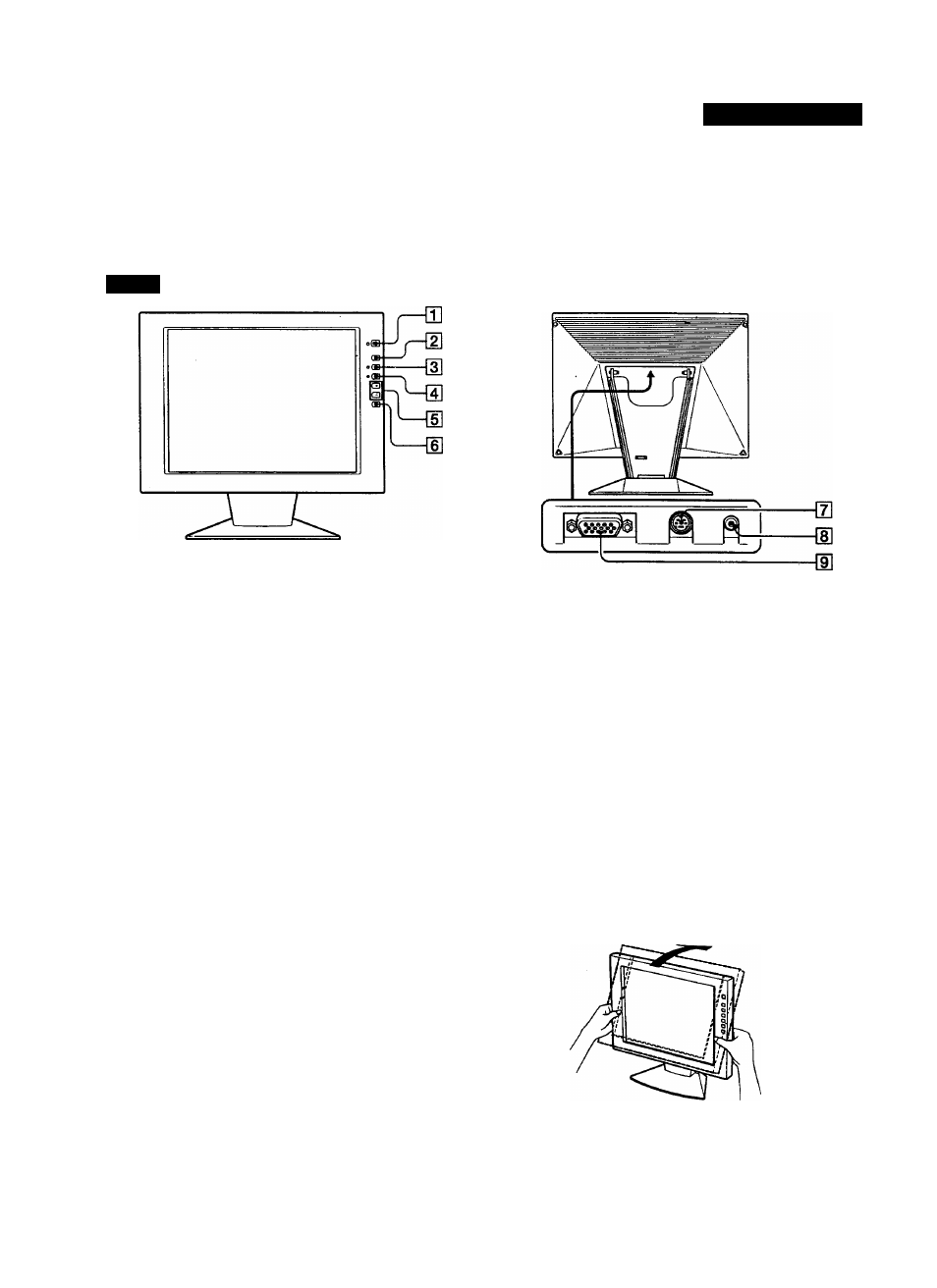

Identifying Parts and Controls
See the pages in parentheses for further details.
CPD-L150 is used for illustration purposes throughout this
manual.
Getting Started
Front
[T| 0 (power) switch and indicator (pages 8,
17)
Turns the monitor on or off. .
The indicator lights up in green when the monitor is
turned on, and either flashes in green and orange or
lights up in orange When the monitor is in power
saving mode.
d] MENU (menu) button (pages 8,11 -15,17)
Displays the MENU OSD (On-Screen Display).
[3] ^
(brightness) ((h) button (pages 8 - 9,11
-15)
Adjusts the picture brightness.
Functions as the ^ button when selecting menu items.
3 (contrast) ((^) button (pages 8 - 9,11 -
15)
Adjusts the contrast.
Functions as the button when selecting menu items.
[5] +/- (adjust) buttons (pages 9,11 -15)
Adjusts the selected menu item.
[6] AUTO button (pages 8,11)
After you have connected this monitor, press the AUTO
button to automatically adjust the picture to the
computer.
You also should press this button if the picture is not
centered or if it is fuzzy.
External control connector
Inputs the external control signal of RS-232 format.
Consult your dealer for further information.
[8] DC IN connector (page 6)
Provides DC power to the monitor from the AC
adaptor.
[U RGB input connector (HD15) (page 6)
Inputs analog RGB video signals (0.714 Vp-p, positive)
and SYNC signals.
Use the tilt feature to adjust the monitor to the desired angle
within 30° vertically.
To turn die monitor vertically, hold it at the bottom widi
both hands as illustrated below.
30“
