Getting Started
Setup
Before using this monitor, check that the following items are
included in your carton:
• LCD monitor (1)
• AC adaptor (1)
• Rear cover (1)
• Power cord (1)
• HD15 video signal cable (1)
• Macintosh adapter (1)
• Windows Monitor Information Disk/Utility Disk (1)
• Macintosh Utility Disk (1)
• TCO'95 Eco-document (1)
• Warranty card (1)
• TTrese operating instructiorjs (1 )
This monitor works with
Although this monitor works with other platforms running
at horizontal frequencies between 30 and 70 kHz, including
Macintosh and Power Macintosh systems, a cable adapter is
required. Please consult your dealer for advice on which
adapter is suitable for your needs. This monitor also can
receive die RGB signals of the PAL and NTSC systems.

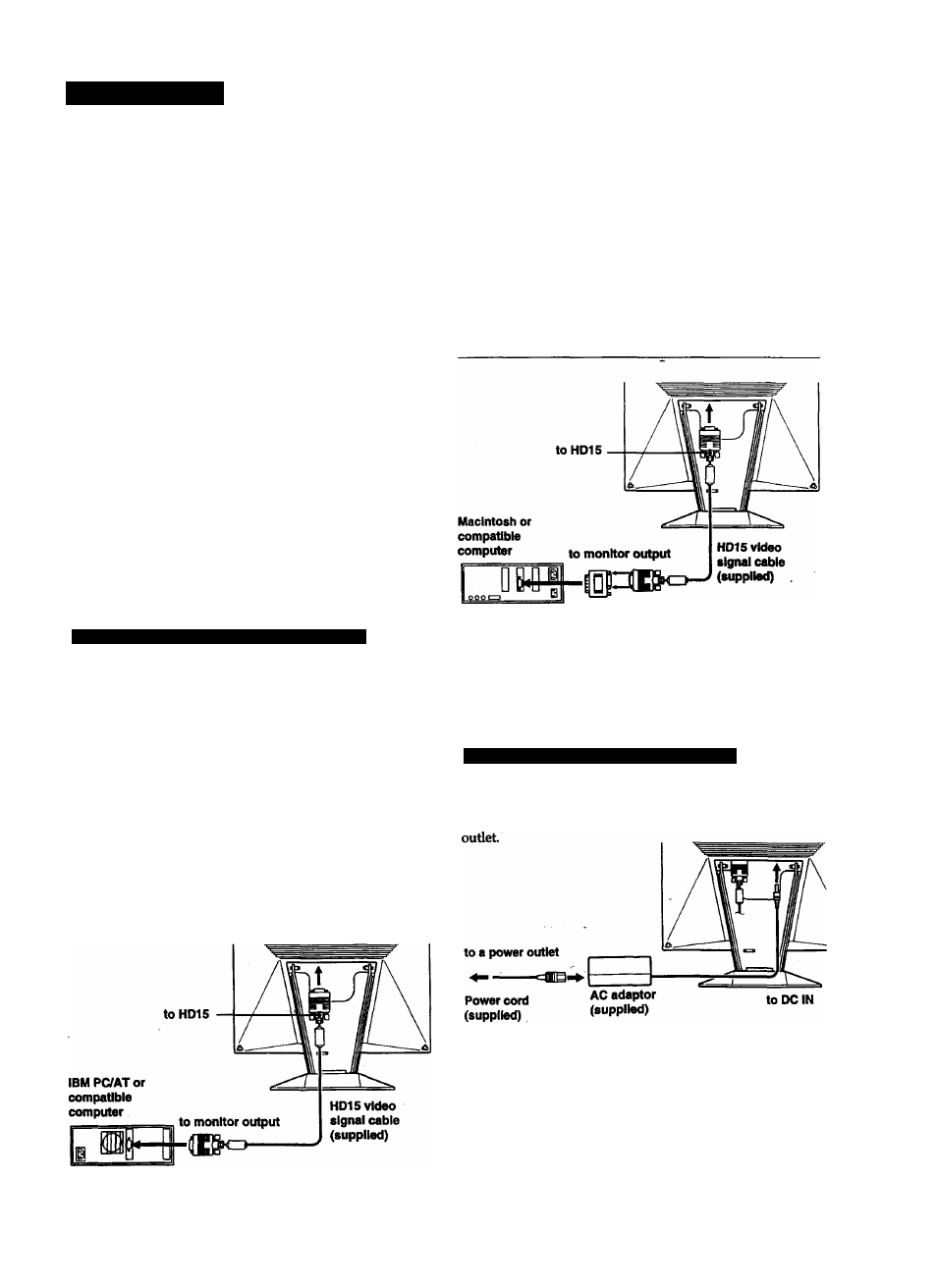

With the computer switched off, connect the video signal
cable to die monitor using the supplied HD15 video signal
cable.
• If you are using an IBM PC/AT or compatible computer,
refer to the section below.
• If you are using a Macintosh or compatible computer,
refer to the following section, "Connecting to a Macintosh
or compatible computer."
Connecting to an IBM POAT or compatible
computer
If your PC system is not compatible with DDC1 and
DDC2B
This monitor uses the No. 9 pin in the video signal connector for
DDCl and DDC2B compatibility.
Some PC systems which are not compatible with either DDCl or
DDC2B may not accept the No. 9 pin. If you are not sure whether
your PC system accepts the No. 9 pin or not, use the HD15 (Female)
- HD15 (Male without the No. 9 pin) adapter (not supplied). Make
sure the male side (without the No. 9 pin) is connected to the
computer.
Connecting to a Macintosh or compatible
computer
Macintosh adapter
(supplied)
About the supplied Macintosh adapter
The supplied Macintosh adapter is compatible with Macintosh LQ
Performa, Quadra and Power Macintosh series computers.
Macintosh n series and some older versions of Power Book models
may need an adapter with micro switches (not supplied).
With the monitor switched off, connect one end of the DC
power cord to the monitor and the other end to a power
