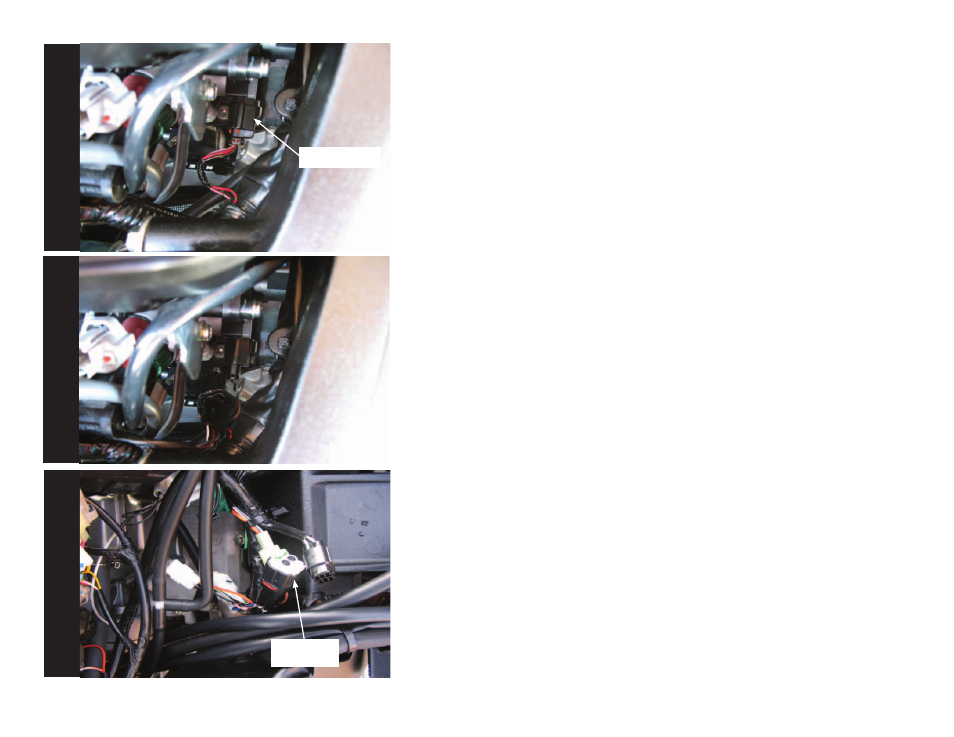

8. Locate the throttle position sensor (TPS) connector on the far right hand side of
the throttle bodies as shown in Figure D.
The TPS connector has pink/black - red - black/brown colored wires.
9. Unplug the TPS connector.
10. Attach the 3-pin connectors from the Juice Box Pro to the stock TPS and wiring
harness as shown in Figure E.
11. Locate where the stock O2 sensor connects to the main wiring harness.
The O2 connector is a black 4-pin connector located under the fuel tank as shown
in Figure F.
12. Unplug this connector.
13. Attach the O2 optimizer into the main wiring harness.
Note: The stock O2 sensor will not be connected to anything at this time.
Note: Skip steps 11-13 for the 2006-2007 models as they do NOT have an O2
sensor.
