ITBR001-213 www.twobros.com 2006-2010 Suzuki GSXR600 - 3

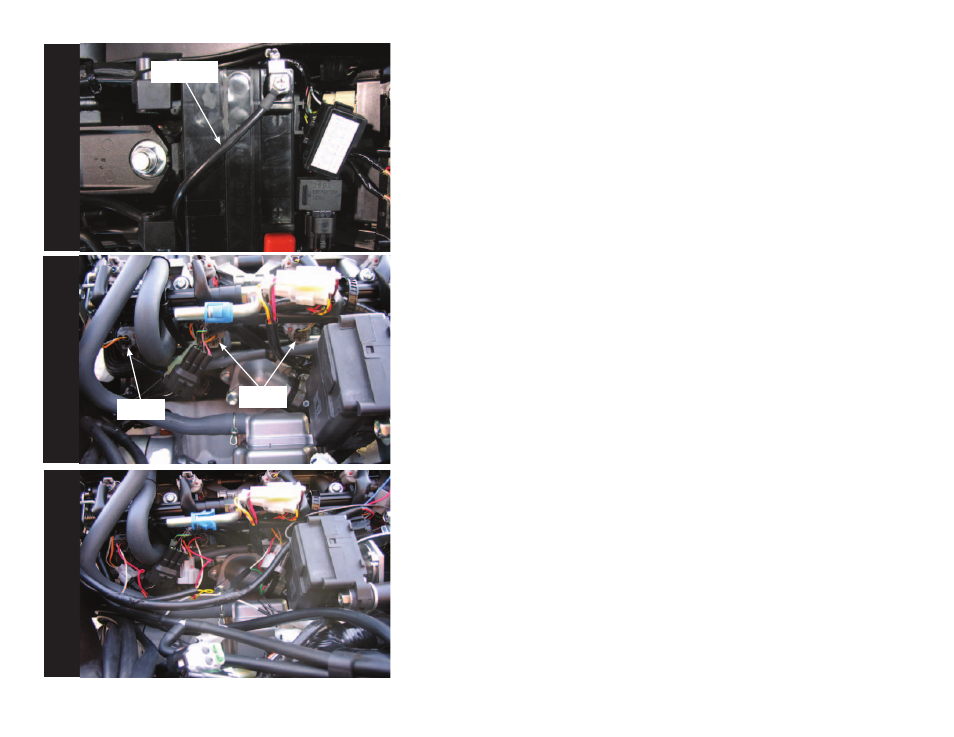

Figure
A
Figure B
Figure C
6. Unplug the stock wiring harness from each of the lower injectors as shown in
Figure B.
The lower injectors are much harder to access than the upper injectors. Using a
set of needle nose pliers will aid in removing the connectors.
Note: The #4 cylinder connector is not visible in this picture.
7. Attach the Juice Box Pro connectors to the stock lower injectors and stock wiring
harness as shown in Figure C.
ground wire
unplug
unplug
1. Remove the main seat and the passenger seat or solo cover.
2. Prop the fuel tank up using the prop rod in the tail section.
3. Lay the Juice Box Pro in the tail section.
4. Route the wiring harness from the Juice Box Pro under the tail section and go
towards the engine down the left hand side of the bike.
5. Attach the ground wire from the Juice Box Pro to the negative side of the battery
as shown in Figure A.
