Two Brothers Racing Kawasaki KX450F User Manual
Page 3
ITBR001-236 www.twobros.com
2009-2010 Kawasaki KX450F - 3

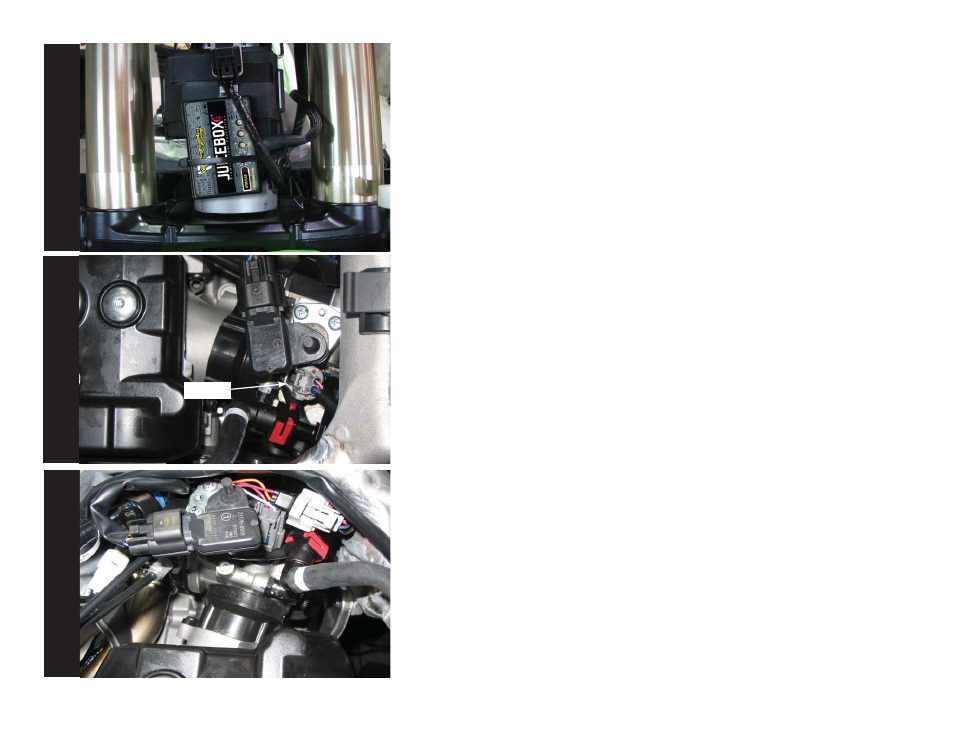

Figure A
Figure B
Figure C
6. Unplug the stock wiring harness from the injector as shown in Figure B.
7. Attach the connectors from the Juice Box Pro to the stock injector and the stock
wiring harness as shown in Figure C.
unplug
1. Remove the seat.
2. Remove the fuel tank.
3. Remove the front number plate.
4. Using the supplied zip tie, secure the Juice Box Pro to the stock ECU as shown in
Figure A.
5. Route the Juice Box Pro harness to the left side of the frame following the throttle
cable.
