iTBR001-166 2008-10 Kawasaki KFX450R - 3

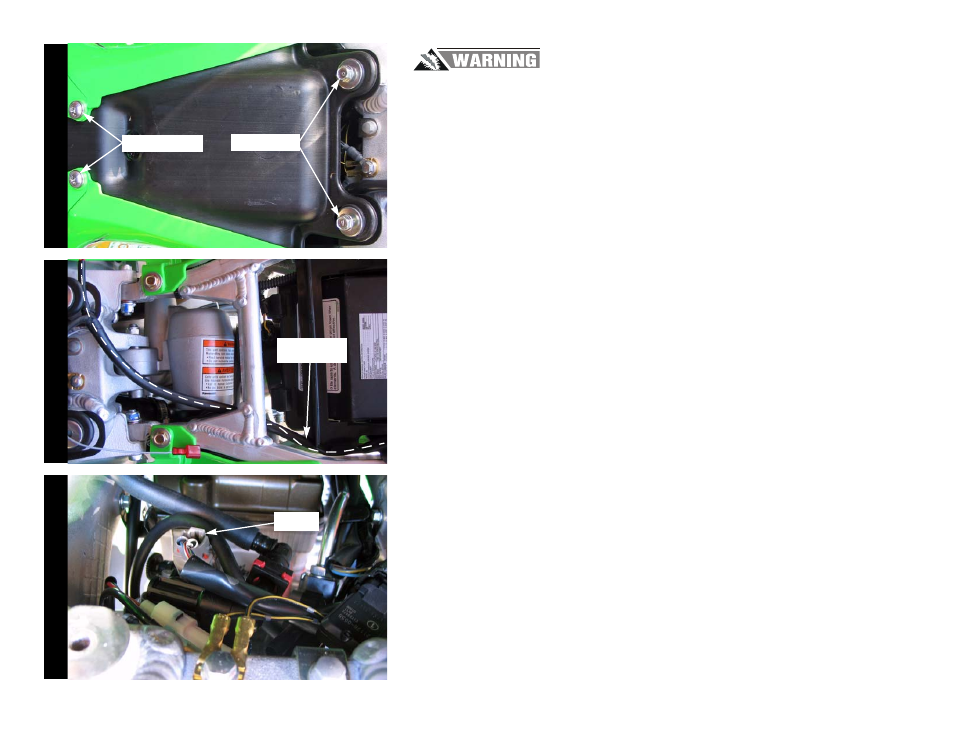

Fi
gu
re
A
Fi
gur
e B
Fi
gu
re
C
remove bolts removed screws
Juice Box Pro
harness
unplug
The ignition must be turned OFF before installation.
1 Remove the seat.
2 Remove the two screws securing the side covers to the fuel tank as shown in
Figure A.
3 Remove the two bolts at the rear of the fuel tank as shown in Figure A.
This allows the rear of the fuel tank to be raised up enough to install the Juice Box
Pro.
4 Lay the Juice Box Pro in the tail section.
5 Route the wiring harness from the Juice Box Pro towards the throttle body.
6 Route the harness underneath the cross member of the sub-frame as shown in
Figure B.
7 Unplug the stock wiring harness from the injector as shown in Figure C.
This connection is under the rear of the fuel tank.
