Two Brothers Racing Honda CBR1000RR User Manual
Page 4
ITBR001-181
2006-07 Honda CBR1000RR - 4
Fi
gu
re
D
Fi
gu
re
E
Fi
gu
re
F
ground wire from
Juice Box Pro
Juice Box Pro
harness
stock connectors
stock connectors
Juice Box Pro
connectors

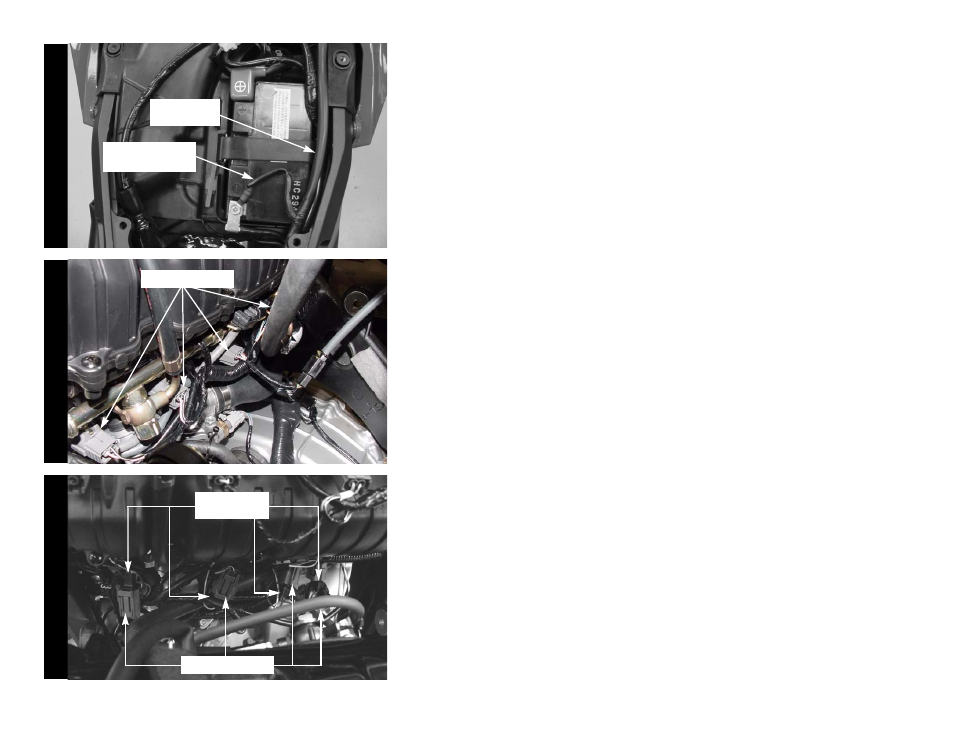

10 Attach the ground wire from the Juice Box Pro to the negative side of the battery as
shown in Figure D.
11 Reinstall the fuel tank stop bracket.
12 Rotate the fuel tank upwards and hold in this position.
13 Unplug the stock wiring harness connectors from the throttle bodies as shown in
Figure E.
Note:This bike has a set of upper and lower injectors. Make sure to connect the
Juice Box Pro to the lower set of injectors at the throttle bodies.
14 Attach the Juice Box Pro connectors to the stock wiring harness and throttle bodies
as shown in Figure F.
Connect the orange Juice Box Pro wires to the far left cylinder (cylinder #1) and
continue to the right.
