Figure D
Figure E
Figure F

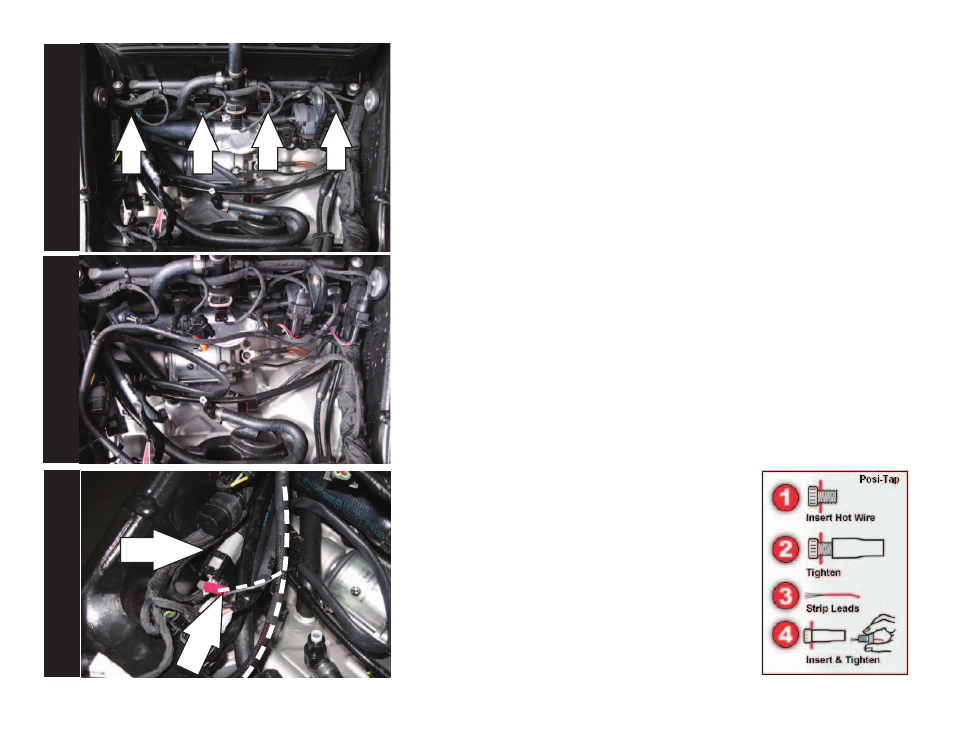

8 Unplug the stock wiring harness from each injector (Fig. D).
9 Plug the Juicebox Pro harness in-line of the stock wiring harness and injectors
(Fig.E).
Juicebox Pro harness:
ORANGE - cylinder #1
YELLOW - cylinder #2
GREEN - cylinder #3
BLUE - cylinder #4
10 Locate the Throttle Position Sensor connector from
the throttle blade on the left, inside of the frame
(Fig. F).
11 Attach the GREY wire of the Juicebox Pro to the
WHT/GRY wire of the TPS connector (Fig. F).
It is recommended to use dielectric grease on these
connections.
TPS connector
Gr
ey
w
ire
