Two Brothers Racing BMW S1000RR - Manual (Page 3)

TBR001-281 www.twobros.com 10-11 BMW S1000RR

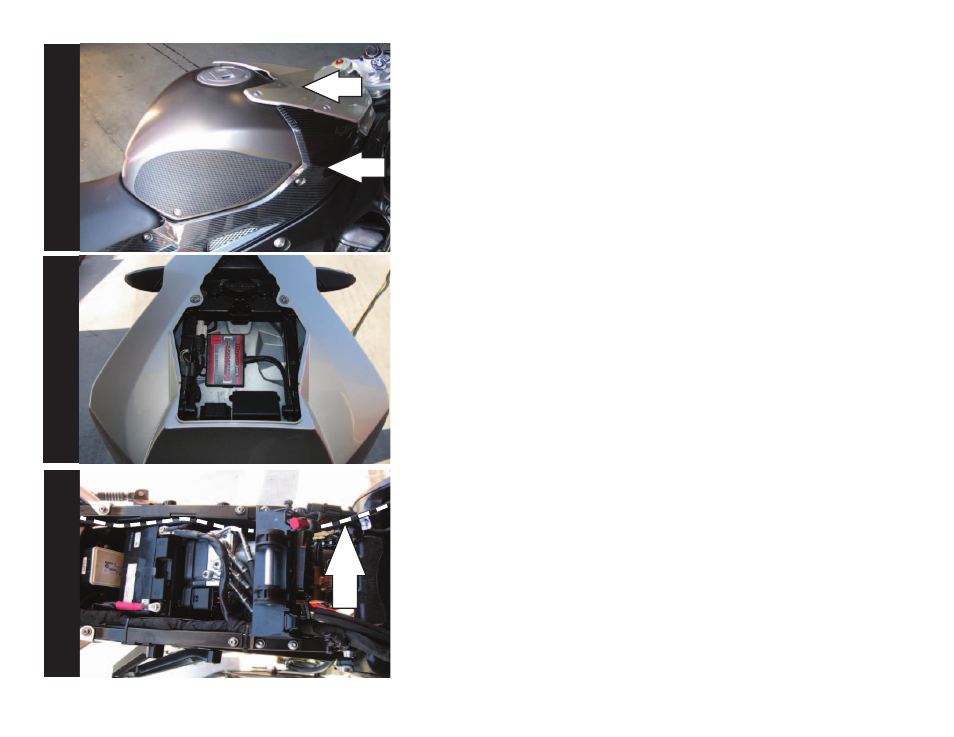

Figure
A
Figure B
Figure C
5 Install the Juicebox Pro in the tail section using the supplied velcro (Fig. B).
Make sure to use the alcohol swab to clean both surfaces before attaching.
6 Route the Juicebox Pro harness down the left side of the bike. Route the
harness underneath the fuel tank bracket and go towards the throttle bodies
(Fig. C).
7 Attach the ground wire of the Juicebox Pro to the negative side of the battery.
ha
rn
es
s
1 Remove the seat.
2 Remove the fuel tank covers (Fig. A).
3 Remove the fuel tank or prop it up out of the way.
4 Remove the left and right side fairings.
