Two Brothers Racing BMW K1300S - Manual (Page 4)

ITBR001-265 2009-2010 BMW K1300S - 4
F
igur
e
D
F
igur
e
E
Fig
u
re F
unplug unplug
TPS connector

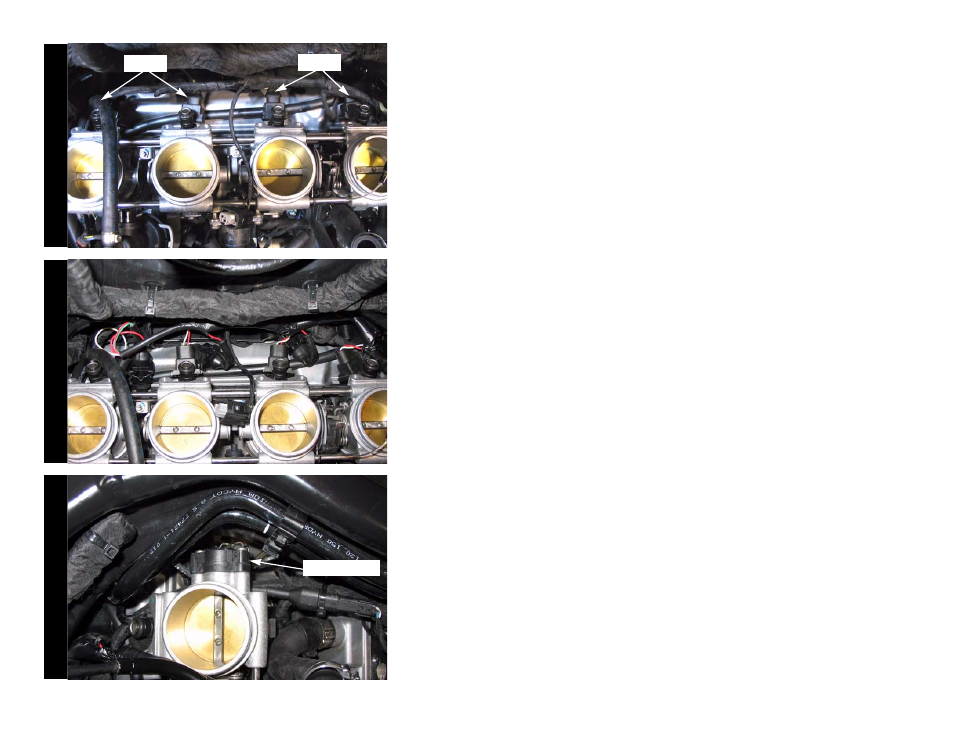

3 Unplug the stock wiring harness from each injector as shown in Figure D.
4 Lay the Juice Box Pro in the tail section and route the harness down the right hand
side of the bike towards the throttle bodies.
5 Attach the connectors from the Juice Box Pro to the stock wiring harness and the
fuel injectors as shown in Figure E.
• orange wire connects to cylinder #1
• yellow wire connects to cylinder #2
• green wire connects to cylinder #3
• blue wire connects to cylinder #4
6 Locate the stock throttle position sensor (TPS) connector.
The TPS connector is on the right side of the throttle bodies as shown in Figure F.
7 Unplug the stock TPS connector and attach the Juice Box Pro harness.
Note:Removing the right hand fairing will make this step easier.
