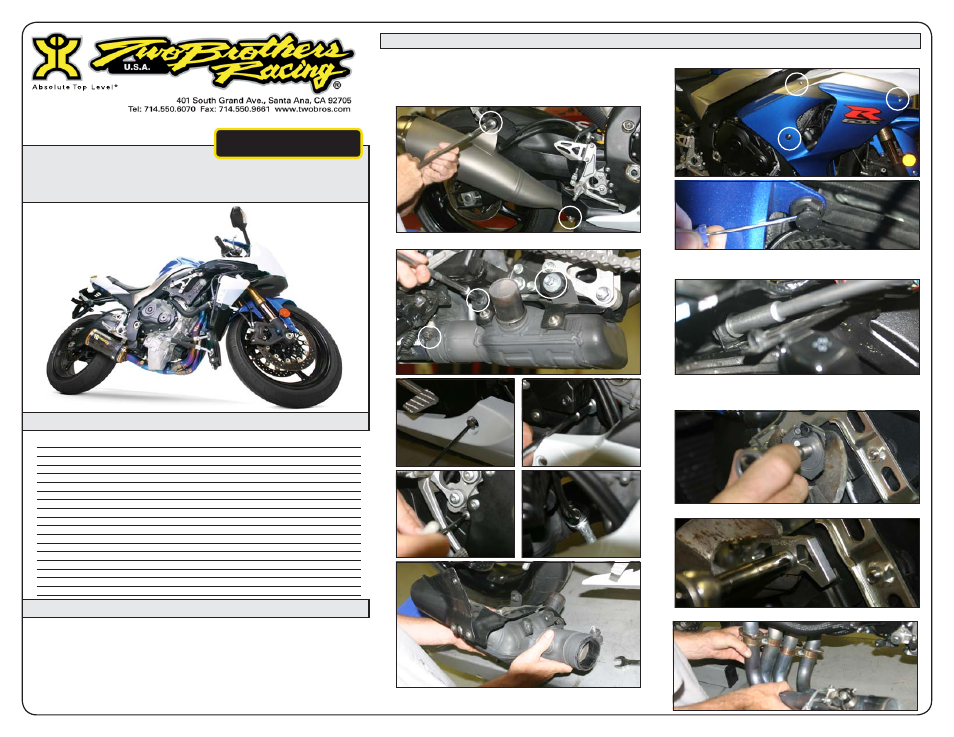

Two Brothers Racing Suzuki GSX-R1000 User Manual
V.a.l.e, Gsx-r1000

V.A.L.E.
V a r i a b l e a x i s l o c k i n g e x h a u s t
TM
Parts List
IMPORTANT - PLEASE READ CAREFULLY
We recommend that this performance part be installed by a qualified
motorcycle technician. If you have any doubts as to your ability to install this
performance part, please consult with your local motorcycle dealer. Read all
instructions first before starting installation. Make sure the motorcycle and
exhaust system are completely cool before starting the installation. Also,
make sure the bike is secure on a centerstand or ideally a service lift during
installation. Be sure to save all stock components for possible use later.
Installation Instructions
1. Make sure the bike is completely cool before starting the
installation. Make sure the bike is secure on a centerstand
or ideally a service lift.
2. Remove left and right mufflers.
3. Remove OEM plenum box and O2 Sensor.
4. Remove left and right fairings.
5. Remove radiator mounting bolts and let radiator sit against
front fender.
6. Remove servo cables and pully wheel from servo motor on
left side of motorcycle. You must use a suitable tool to hold
pully wheel in place while removing retaining bolt.
7. Install supplied servo stop bracket as shown.
8. Remove OEM header assembly.
2009-10 Suzuki
GSX-R1000
V.A.L.E.™ Full Titanium Exhaust System with M-2 Exhaust Canister
Part # 005-2420606V / 005-2420607V / 005-2420608V
Qty. Description
Part Number
1
M-2 Muffler Canister
005-146-207
1
Header Kit Ti
005-24206HK
1
Muffler Clamp
Varies
1
HARDWARE KIT
005-24206-3C
2
X-Ring (half)
005-7-2-3
1
Hanger Bracket
005-147-19-3
1
Servo Stop
005-125-05-01
1
8x35mm Socket Head Cap Screw
005-SH835
1
8x20mm Socket Head Cap Screw
005-SH820
4
6x14mm Socket Head Cap Screw
005-SH614
4
6mm Split Washer
005-WL6
3
8mm Flange Nut
005-FN8
6
62mm Spring Hooks
005-S62
1
5mm Long Handle Ball End Hex Key
005-9-18610
1
T20 Torx Screw Hex Key
005-9-15820
1
Permatex Ultra Black Gasket Maker
005-P22072
1
TBR Sticker Kit
015-10212
