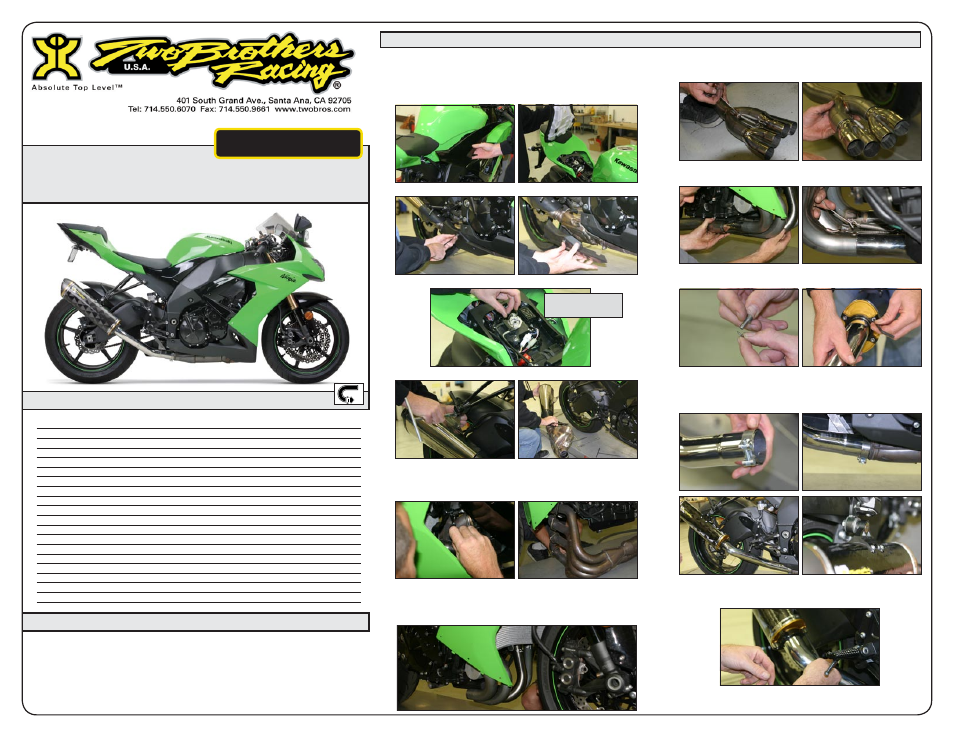

Two Brothers Racing Kawasaki ZX-10R - Manual

Install the main collector to the 2 merge collectors
using the supplied springs and a small bead of high
temp silicon.
Install the collectors to the headers using the supplied
springs and a small bead of high temp silicon.
Attach TBR muffler to slip-on tube using the 4 6x14mm
S.H.C.S. and lock washers provided. Leave loose for now.
Slide supplied barrel clamp on end of slip tube where it
will meet TBR header assembly. Install the TBR muffler
assembly and attach using the S.H. flat bolt and OEM nut
to secure the rear muffler mount.
Check alignment and tighten muffler and the 4 6x14mm
V.A.L.E.™ S.H.C.S.
9.
10.
11.
12.
13.
Parts List
IMPORTANT - PLEASE READ CAREFULLY
We recommend that this performance part be installed by a qualified motorcycle
technician. If you have any doubts as to your ability to install this performance
part, please consult with your local motorcycle dealer. Read all instructions first
before starting installation. Make sure the motorcycle and exhaust system are
completely cool before starting the installation. Also, make sure the bike is secure
on a centerstand or ideally a service lift during installation. Be sure to save all stock
components for possible use later.
Installation Instructions
Make sure the bike is completely cool before starting the
installation. Make sure the bike is secure on a centerstand
or ideally a service lift.
Remove side covers and seat.
Remove lower rear exhaust cover.
Remove exhaust valve cables from servo under seat.
Remove OEM muffler assembly.
Remove lower left and right fairings
Remove OEM header assembly (remove lower radiator
support bracket to swing radiator out for more room to
remove header nuts).
Install Headers 1,2,3,4 to the engine starting with 1 on
the left side of the engine as if you are sitting on the bike
facing forward. Make sure the OEM copper gasket is
between cylinder head and exhaust pipes.
1.
2.
3.
4.
5.
6.
7.
8.
Qty. Description Part Number
1 Muffler Canister Varies
1 4-2-1 Header Assembly 005-19901H
1 Slip-on Tube 005-19904S
1 HARDWARE KIT 005-199-3C
1 Fender Bracket 005-19904B
2 Lighted License Plate Bolt 005-8504LTZ
1 Turn Signals (set of 2) 005-88T2
6 But Splice Connectors 005-BS1614
1 Barrel Clamp 005-27-66MSH
6 80mm Swivel Hook Springs 005-S80
1 Zip Ties 005-ZT458B
1 Zip Tie Tab 005-ZTM4
1 8x50mm Socket Head Flat (Black) 005-SHF850
8 6x14mm Socket Head Cap Screw 005-SH614
1 5mm Long Handle Ball End Hex Wrench 005-9-18610
4 6mm Split Lock Washer 005-WL6
4 6mm Flange Nut 005-FN6
1 High Temp Silicone 031-P22072
V.A.L.E.
V a r i a b l e a x i s l o c k i n g e x h a u s t
TM
Continued on pg. 2
2008 Kawasaki
ZX-10R
V.A.L.E.™ Full Exhaust System with M-2 Canister
Part # 005-1990106V, 005-1990107V, 005-1990108V
*Keep servo plugged
into harness but cables
will not be used.
