7
A07755

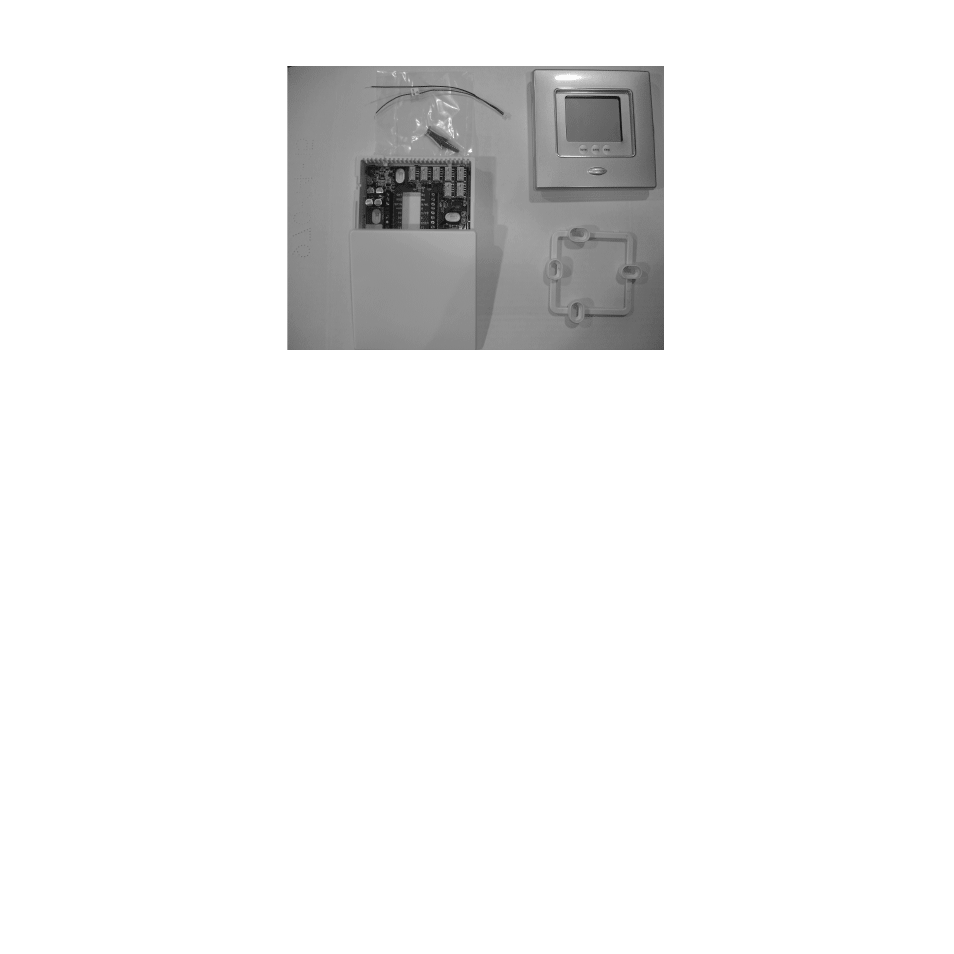

Fig. 3 − TP−NAC / TP−NHP Carton Contents
1. Display Module
2. Stand−off for Equipment Control Module
3. Screws and pig tail
4. Equipment Control Module
AC/HP Control Location
AC/HP Control should be mounted:
S Approximately 5 ft (1.5m) from floor.
S Close to or in a frequently used room, preferably on an inside parti-
tioning wall.
S On a section of wall without pipes or duct work.
