Dell XPS M2010 (MXP061, Mid 2006) User Manual
Page 67
System Board Assembly: Dell XPS M2010 Service Manual
file:///C|/Users/santhosh_v.ASIA-PACIFIC/Desktop/Hawke/New%20folder/sysboard.htm[2/21/2014 11:26:29 AM]

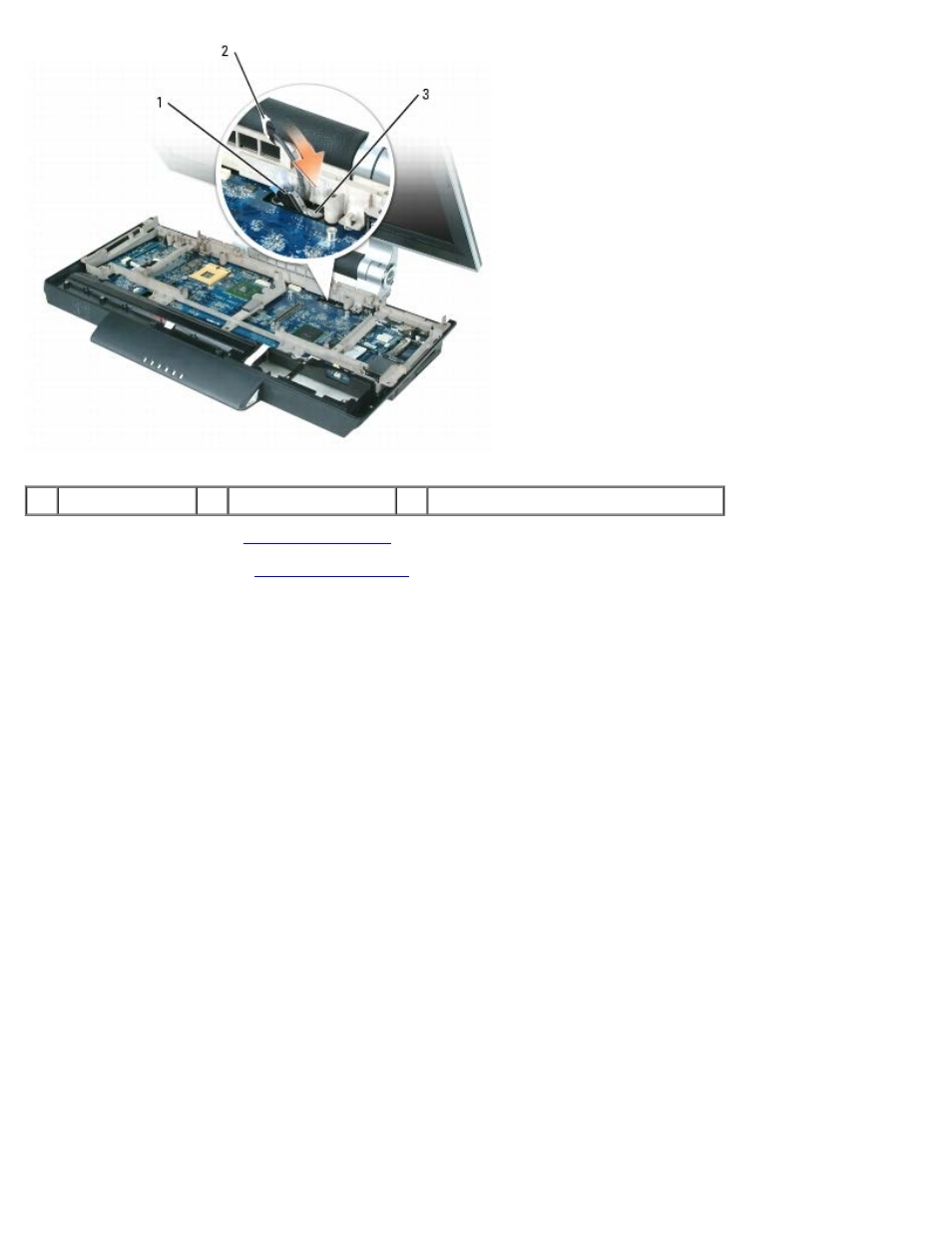

1
video cable
2
solenoid cable
3
opening in computer base
19. Remove the frame (see
).
20. Remove the modem (see
21. Remove the USB/audio port board from the system board:
a. Disconnect the USB/audio cable from the system board.
b. Remove the four M2.5 x 5-mm screws that attach the USB/audio port board to the system board.
c. Grasp the black connector on the USB/audio port board with one hand, hold the black connector on the system
board in place with the other hand, and pull up and angle the USB/audio port board out of the computer.
