System Board Assembly: Dell XPS M2010 Service Manual
file:///C|/Users/santhosh_v.ASIA-PACIFIC/Desktop/Hawke/New%20folder/sysboard.htm[2/21/2014 11:26:29 AM]

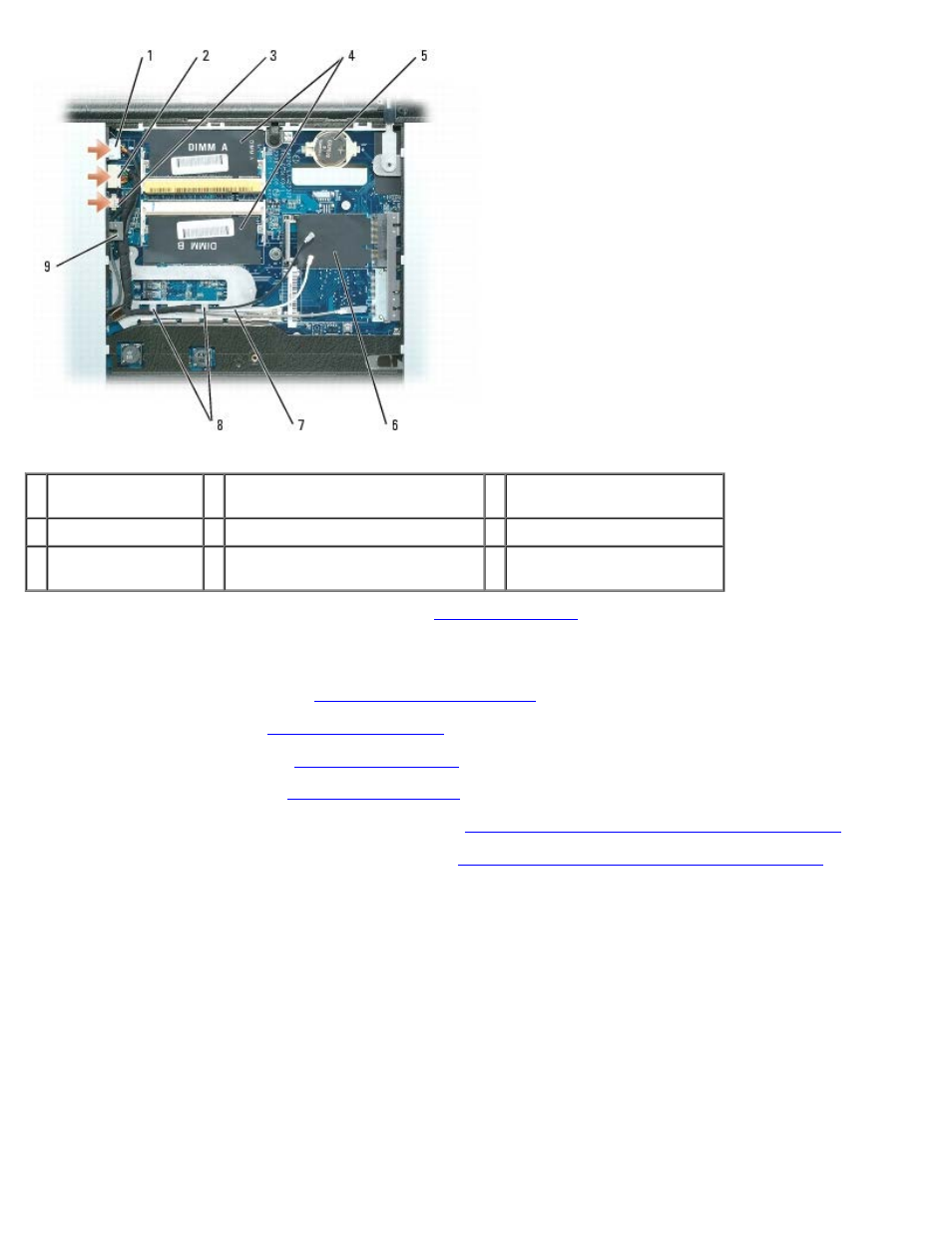

1 speaker cable 2 infrared cable 3 suspend and solenoid
function cable
4 memory modules 5 coin-cell battery 6 mini card
7 mini card antenna
cables
8 routing hooks for mini card
antenna cables
9 routing hook
7. Turn the computer over and open the display (see Opening the Display ).
8. Detach the keyboard by grasping the sides of the keyboard and pulling it straight out from the computer base. Set the
keyboard aside.
9. Remove the cosmetic covers (see Removing the Cosmetic Covers ).
10. Remove the top cover (see Removing the Top Cover ).
11. Remove the hard drive(s) (see Removing a Hard Drive ).
12. Remove the system fans (see Removing a System Fan ).
13. Remove the video card/thermal-cooling assembly (see Removing the Video Card/Thermal-Cooling Assembly ).
14. Remove the processor thermal-cooling assembly (see Removing the Processor Thermal-Cooling Assembly ).
15. Disconnect the solenoid cable on the solenoid card.
