Subwoofer: Dell XPS M2010 Service Manual
file:///C|/Users/santhosh_v.ASIA-PACIFIC/Desktop/Hawke/New%20folder/subwoof.htm[2/21/2014 11:26:03 AM]

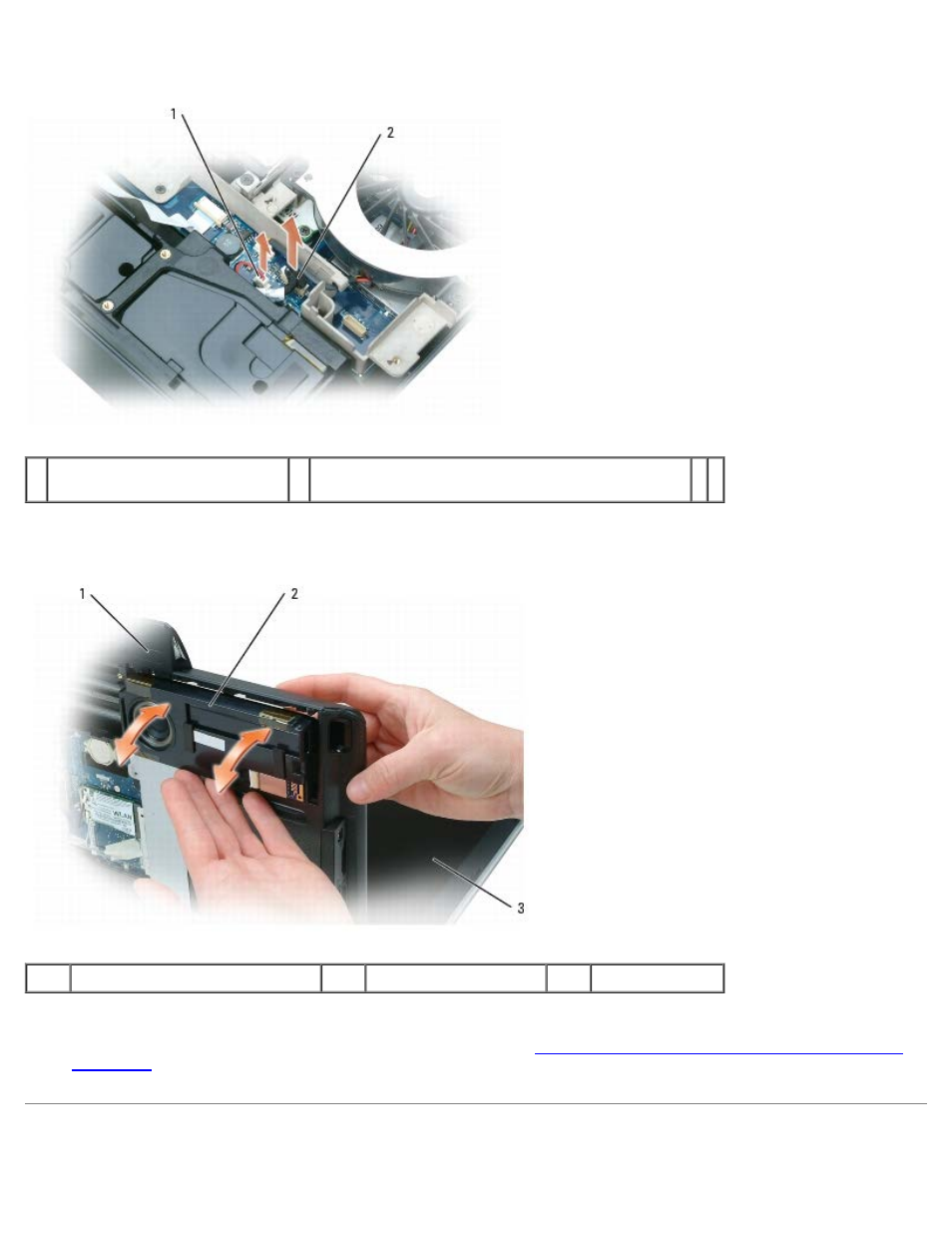

9. Disconnect the cable for the internal card with Bluetooth® wireless technology from the connector on the system board
(JBT).
1 subwoofer cable and system
board connector
2 cable for the card with Bluetooth technology and
system board connector
10. To easily access the bottom of the computer, lean the display backwards and lay it on a flat surface so that the base is
facing you.
1 computer base 2 subwoofer 3 display
11. Push the subwoofer through the top of the computer to remove the subwoofer from its compartment.
12. Detach the internal card with Bluetooth wireless technology (see Removing the Internal Card with Bluetooth Wireless
Technology ). Set the card and cable aside to adhere them to the new subwoofer.
Replacing the Subwoofer
