Mini Card: Dell XPS M2010 Service Manual
file:///C|/Users/santhosh_v.ASIA-PACIFIC/Desktop/Hawke/New%20folder/cards.htm[2/21/2014 11:26:00 AM]

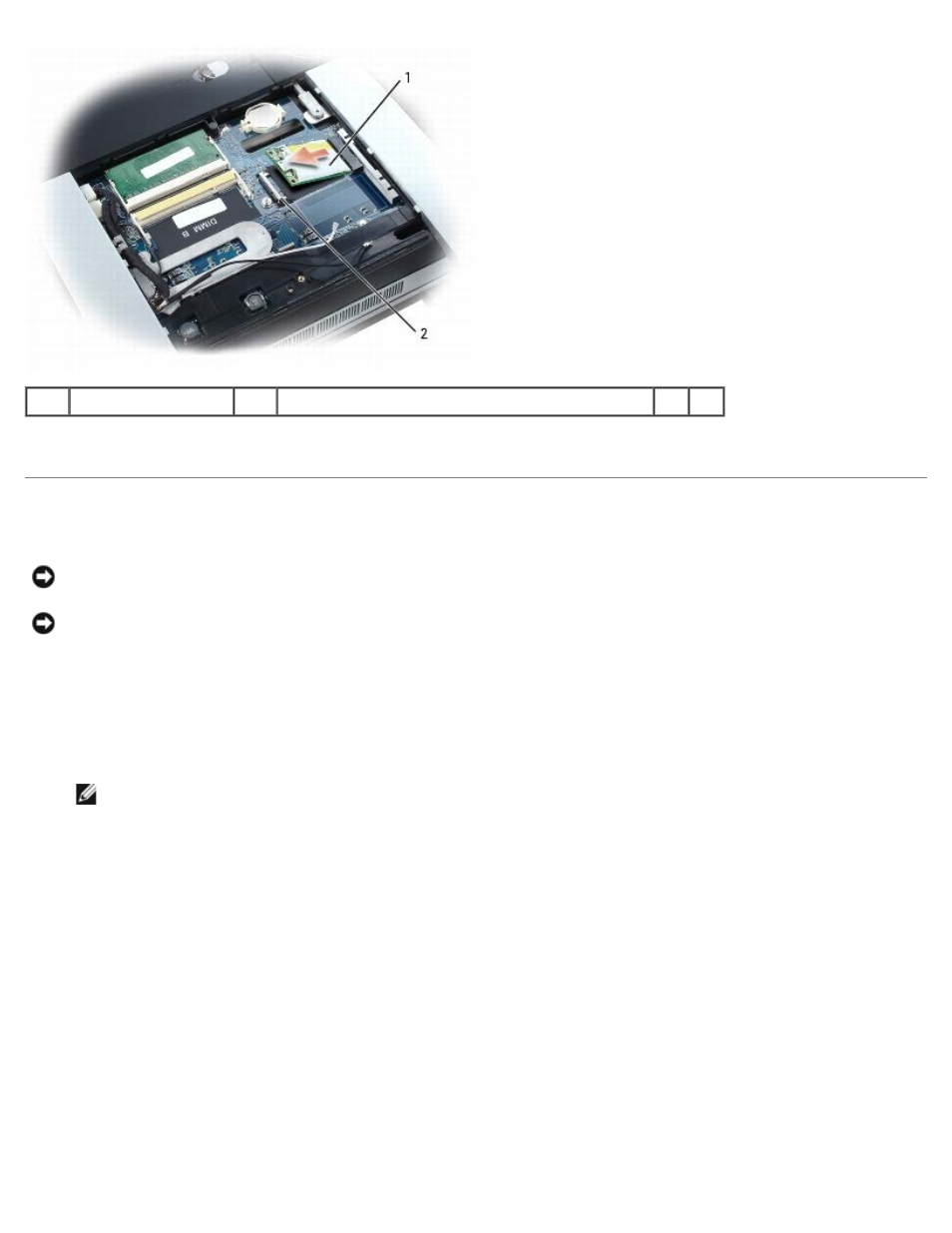

1 mini card 2 metal securing tabs (2)
5. Lift the card out of its connector.
Replacing a Mini Card
NOTICE: To avoid damaging the card, ensure that the antenna cable is not under the card when you click the card
into place.
NOTICE: The connectors are keyed to ensure correct insertion. If you feel resistance, check the connectors and realign
the card.
1. Align the card with the system board connector at a 45-degree angle, and press down to insert the card into the
connector.
2. Connect the antenna cables to the antenna connectors on the mini card. Connect the white cable to the connector with
the white arrow, and connect the black cable to the connector with the black arrow.
NOTE: If your computer has a gray cable, connect it to the connector with the gray arrow if one is available on
your card.
