Status Light Board
Dell™ Inspiron™ N7010 Service Manual
Removing the Status Light Board
Replacing the Status Light Board
Removing the Status Light Board
1.
Follow the instructions in
Before You Begin
.
2.
Remove the battery (see
Removing the Battery
).
3.
Remove the optical drive (see
Removing the Optical Drive
).
4.
Remove the module cover (see
Removing the Module Cover
).
5.
Follow the instructions from
step 4
to
step 6
in
Removing the Hard Drive
.
6.
Remove the keyboard (see
Removing the Keyboard
).
7.
Remove the palm rest (see
Removing the Palm Rest
).
8.
Lift the connector latch to disconnect the status light board cable from the connector on the system board.
9.
Remove the screw that secures the status light board to the computer base.
10.
Lift the status light board off the computer.
Replacing the Status Light Board
WARNING:
Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.
CAUTION:
Only a certified service technician should perform repairs on your computer. Damage due to servicing that is not authorized by Dell™
is not covered by your warranty.
CAUTION:
To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal
surface (such as a connector on your computer).
CAUTION:
To help prevent damage to the system board, remove the main battery (see
Removing the Battery
) before working inside the
computer.

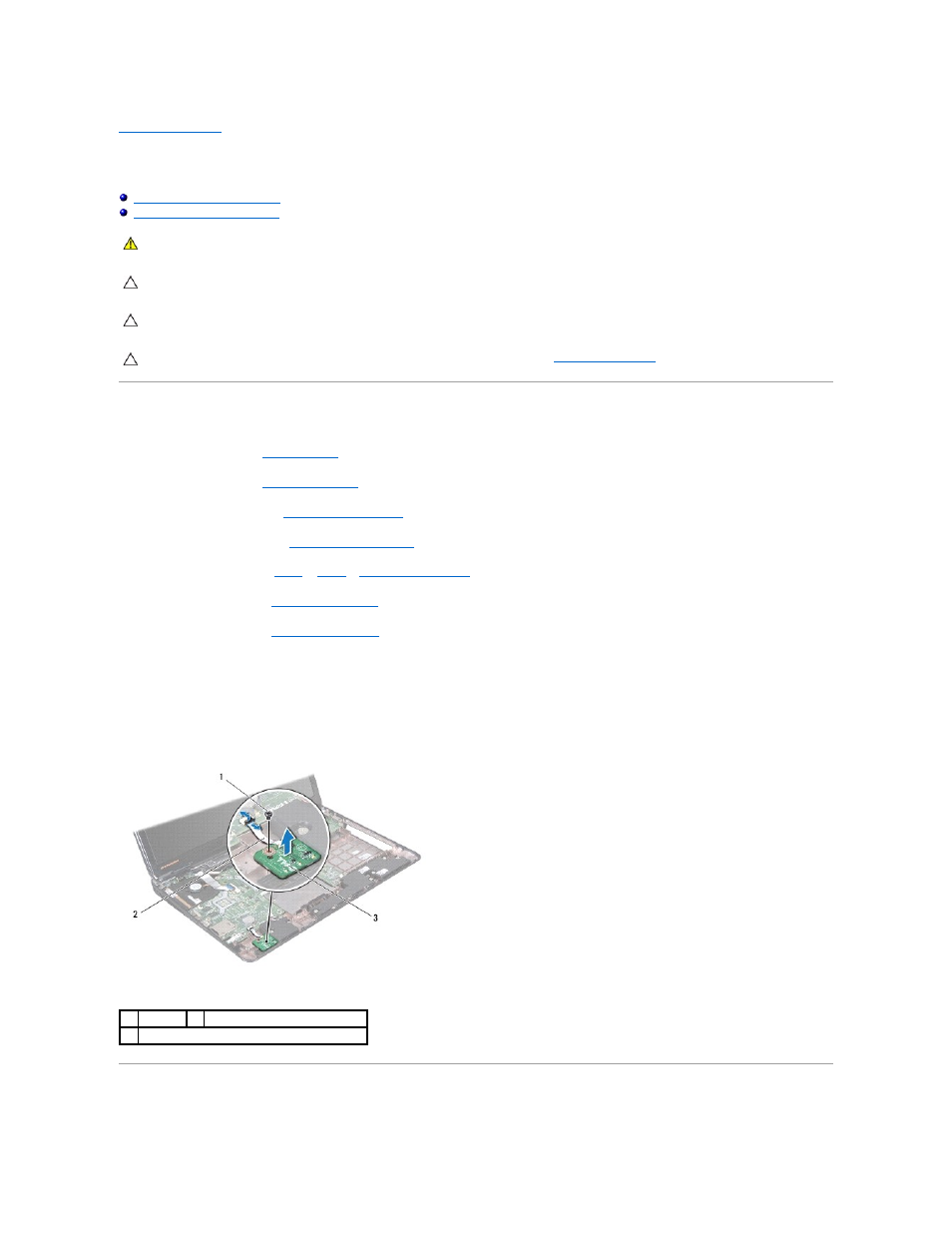

1
screw
2
status light board cable
3
status light board
