Display
Dell™ Inspiron™ N7010 Service Manual
Display Assembly
Removing the Display Assembly
1.
Follow the instructions in
Before You Begin
.
2.
Remove the battery (see
Removing the Battery
).
3.
Remove the optical drive (see
Removing the Optical Drive
).
4.
Remove the module cover (see
Removing the Module Cover
).
5.
Follow the instructions from
step 4
to
step 6
in
Removing the Hard Drive
.
6.

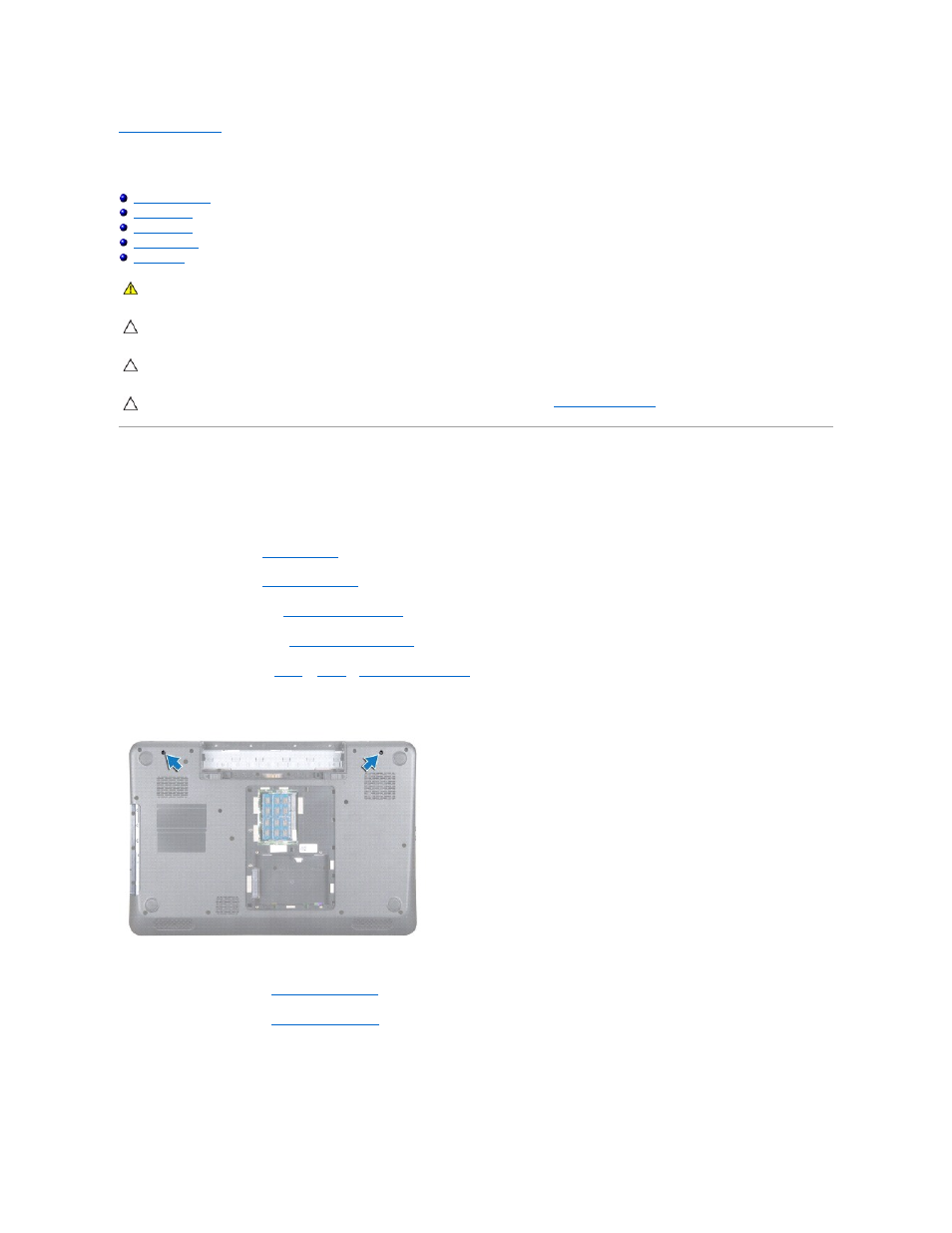

Remove the two screws that secure the display assembly to the computer base.
7.
Remove the keyboard (see
Removing the Keyboard
).
8.
Remove the palm rest (see
Removing the Palm Rest
).
9.
Disconnect the antenna cables from the Mini-Card.
10.
Disconnect the display cable from the connector on the system board, and remove the display cable grounding screw.
11.
Hold the display assembly in place and remove the four screws (two on each side) that secure the display assembly to the computer base.
