3 drive panel tabs
7. Rotate the drive panel toward the computer until it snaps into place on the drive panel.
8. Replace the computer cover (see Replacing the Computer Cover ).
Replacing a Floppy Drive (XPS 730 Only)
1. Follow the procedures in Before You Begin .
2. Remove the computer cover (see Replacing the Computer Cover ).
3. Remove the drive panel (see Replacing the Drive Panel ).
4. Disconnect the power and data cables from the back of the floppy drive.

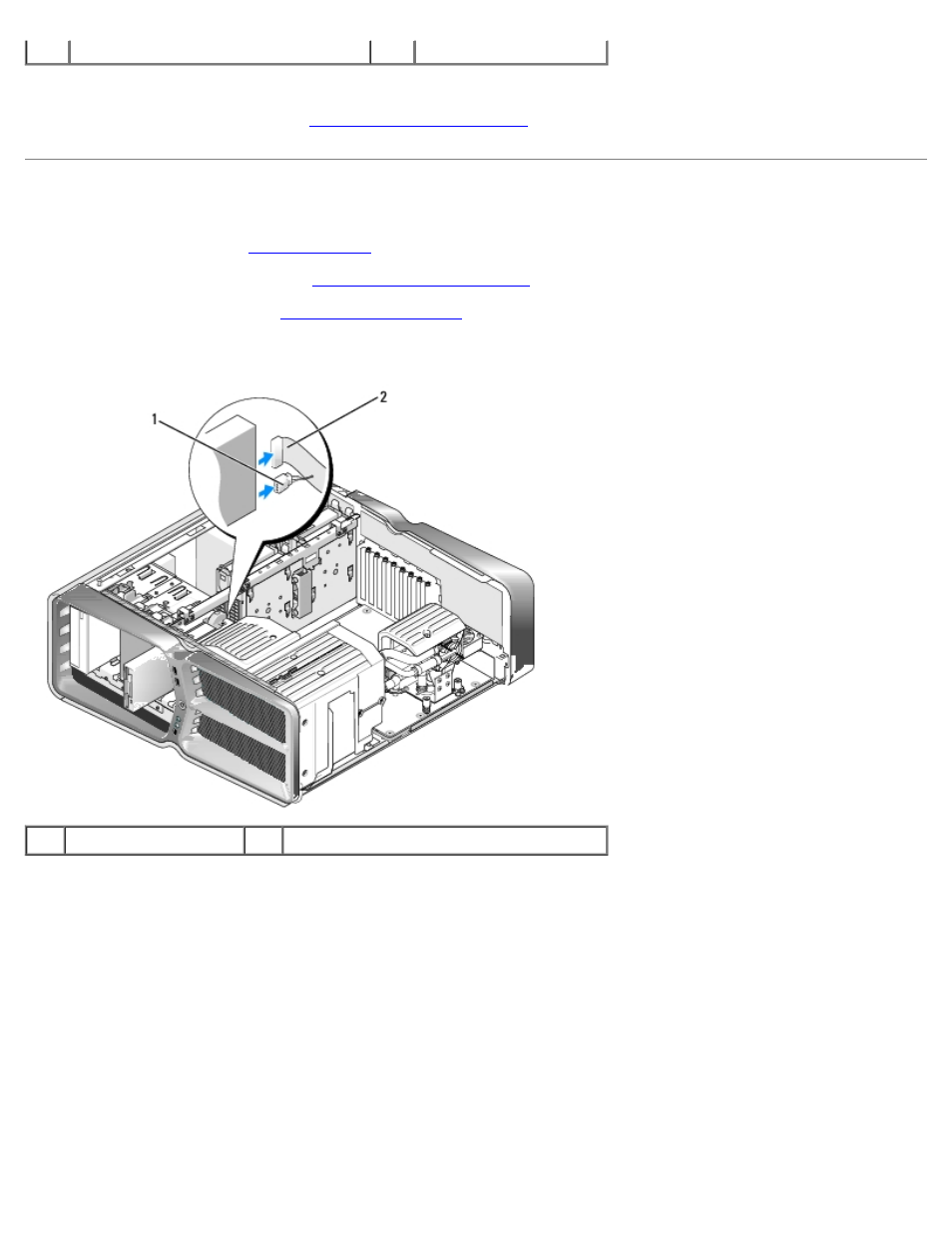

1 power cable 2 floppy drive data cable
5. Slide the drive release latch towards the base of the computer to release the shoulder screw, and then slide the drive
out of the drive bay.
