Using CDs, DVDs, and Other Multimedia
57
1 Turn off the computer and the TV and/or audio device that you want to connect.
NOTE:
You can connect an S-video cable directly to the S-video TV-out connector on the computer
(without the TV/digital audio adapter cable) if your TV or audio device supports S-video but not S/PDIF
digital audio.
2 Plug one end of the S-video cable in to the S-video output connector on the computer.
3 Plug the other end of the S-video cable in to the S-video input connector on your TV.
4 Plug the single-connector end of the audio cable in to the headphone connector on your
computer.
5 Plug the two RCA connectors on the other end of the audio cable in to the audio input
connectors on your TV or other audio device.

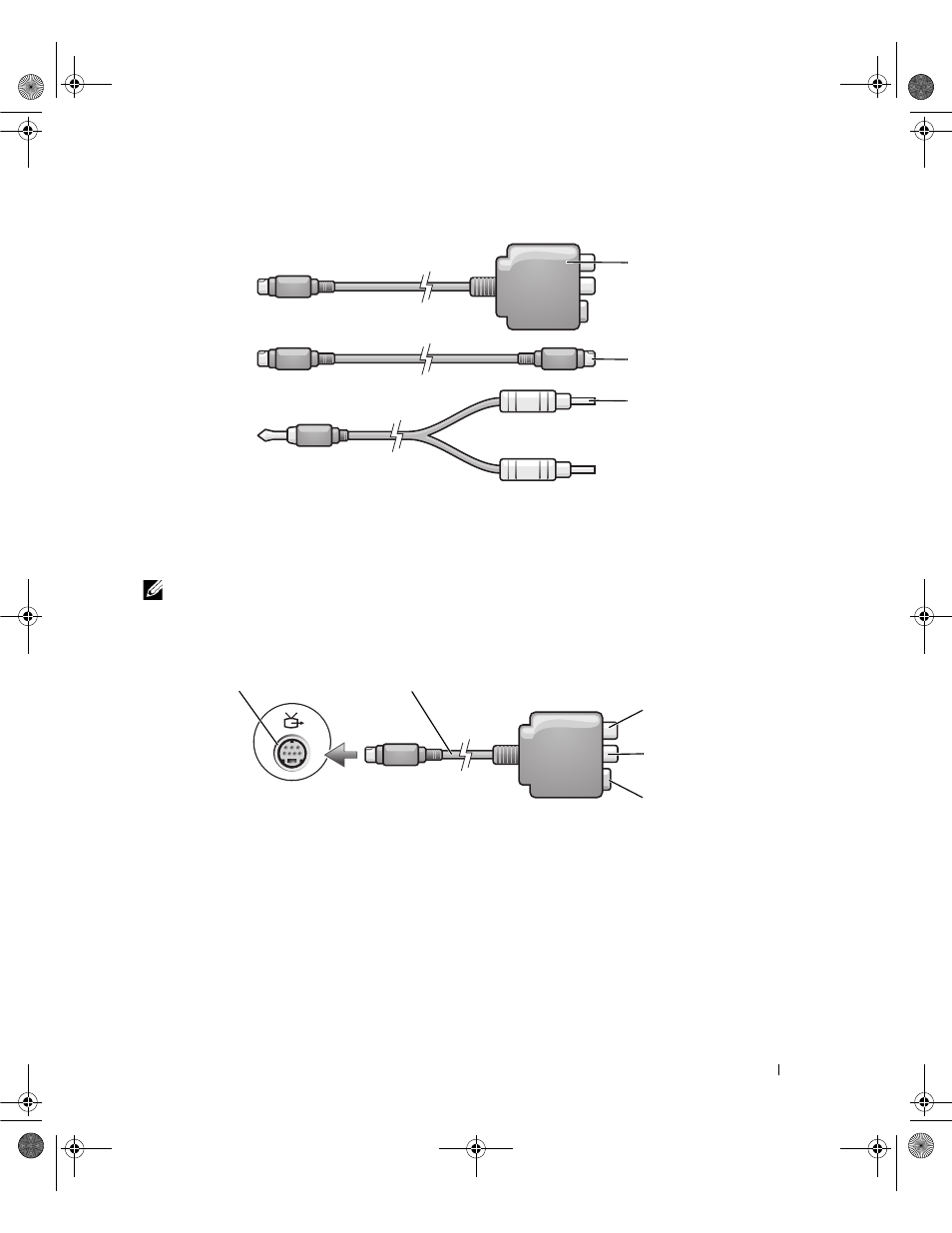

1 TV/digital audio adapter
cable 2 standard S-video cable 3 standard audio cable
1 S-video TV-out connector 3 S/PDIF digital audio
connector 5 S-video connector
2 TV/digital audio adapter
cable 4 composite video-output
connector
1
2
3
5
4
3
1 2
