A Tour of Your Computer
23
CAUTION:
The AC adapter works with electrical outlets worldwide. However, power connectors and
power strips vary among countries. Using an incompatible cable or improperly connecting the cable to
the power strip or electrical outlet may cause fire or equipment damage.
NOTICE:
When you disconnect the AC adapter cable from the computer, grasp the connector, not the
cable itself, and pull firmly but gently to avoid damaging the cable.
Bottom View
BATTERY
—
When a battery is installed, you can use the computer without connecting the computer to
an electrical outlet. For more information, see "Using a Battery" on page 45.
MEMORY
MODULE
COVER
—
Covers the compartment that contains the memory modules. For more
BATTERY
-
BAY
LATCH
RELEASE
—
Releases the battery from the battery bay. See "Battery" on page 108.
FAN
—
The computer uses a fan to create airflow through the vents, which prevents the computer from
overheating.
PROCESSOR
AND
THERMAL
MODULE
COVER
—
Covers the processor and thermal module.

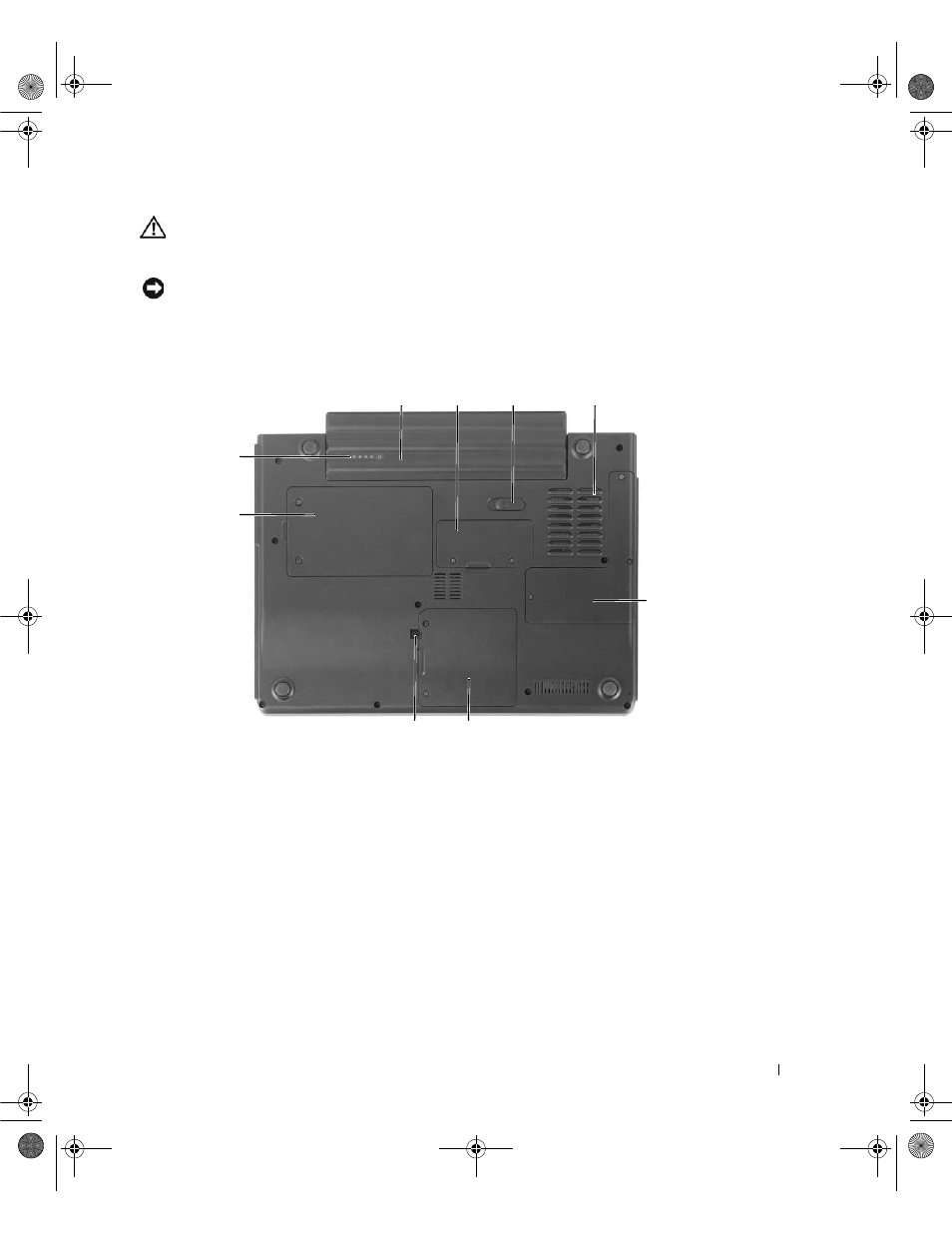

1
battery
4
fan
7
optical-drive locking screw
2
memory module cover
5
processor and thermal
module cover
8
hard drive
3
battery-bay latch release
6
modem/Mini PCI/
wireless cover
9
battery charge gauge
6
5
7
4
1
3
2
8
9
