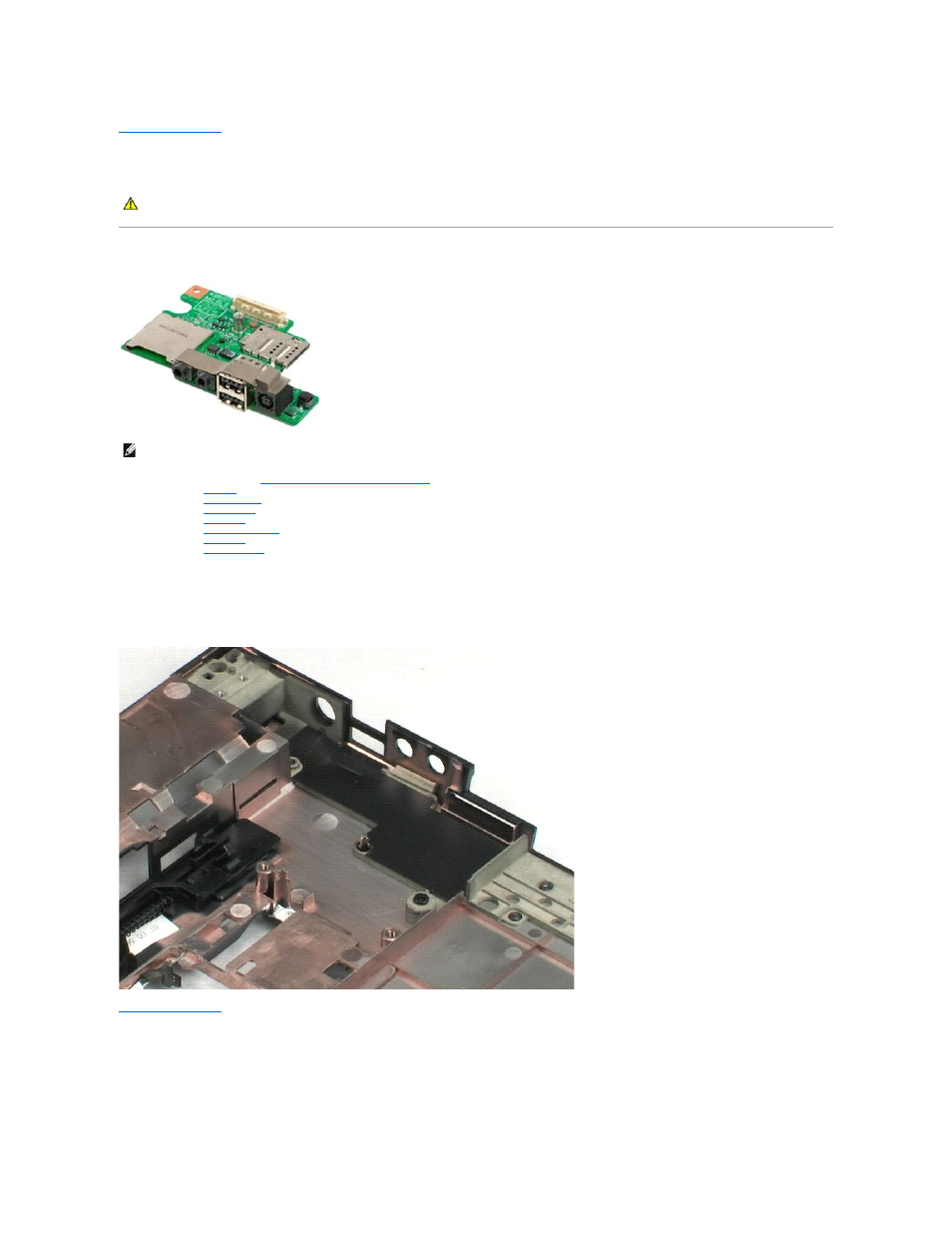

I/O Board
Dell™ Latitude™ E5400 Discrete Service Manual
Removing the I/O Board
1.
Follow the procedures in
Before Working Inside Your Computer
.
2.
Remove the
battery
from the computer.
3.
Remove the
access panel
from the computer.
4.
Remove the
hinge cover
from the computer.
5.
Remove the
keyboard
from the computer.
6.
Remove the
display assembly
from the computer.
7.
Remove the
palm rest
from the computer.
8.
Remove the
system board
from the computer.
9.
Remove the screw that secures the I/O board to the computer.
10.
Lift up the left edge of the I/O board, and remove the I/O board from the computer.
