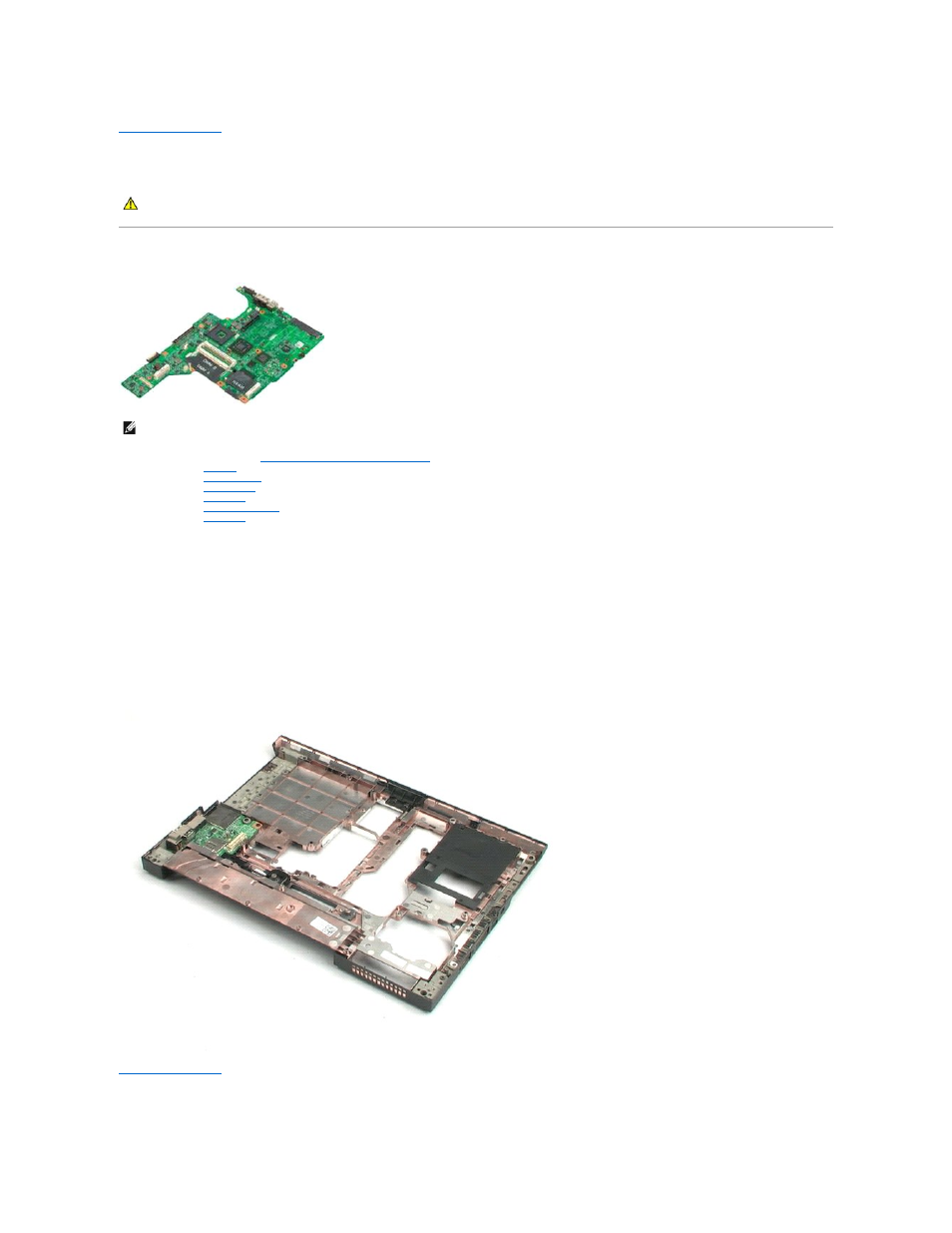

System Board
Dell™ Latitude™ E5400 Discrete Service Manual
Removing the System Board
1.
Follow the procedures in
Before Working Inside Your Computer
.
2.
Remove the
battery
from the computer.
3.
Remove the
access panel
from the computer.
4.
Remove the
hinge cover
from the computer.
5.
Remove the
keyboard
from the computer.
6.
Remove the
display assembly
from the computer.
7.
Remove the
palm rest
from the computer.
8.
Disconnect the modem data cable from the system board.
9.
Turn the computer right-side up on the work surface.
10.
Remove the two screws that secure the system board to the computer chassis.
11.
Lift the left side of the system board to disengage it from the I/O board, then remove the system board from the computer and set it aside.
Back to Contents Page
WARNING:
Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.
NOTE:
You may need to install Adobe Flash Player from Adobe.com in order to view the illustrations below.
