the microprocessor/heat sink assembly.
You must use up to 25 pounds of force to seat the new microprocessor package. Do not rock the package while inserting it into the
connector.
5.
, and reconnect your computer and peripherals to their electrical outlets and turn them on.

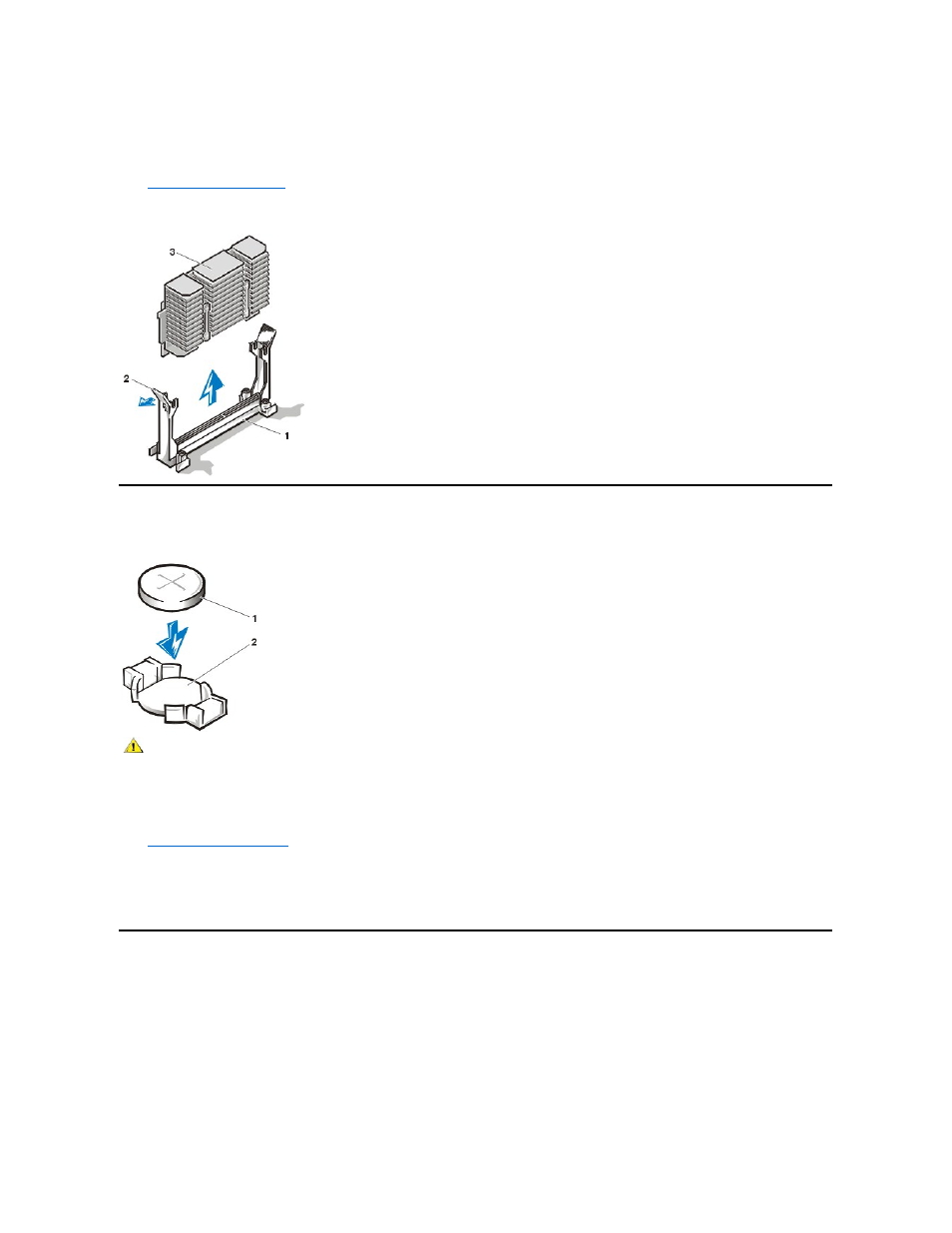

Figure 23. Microprocessor Removal
System Battery
Figure 24. System Battery Removal
To remove the system battery, perform the following steps:
1. If possible, enter System Setup and print the System Setup screens.
2.
3. Remove the system battery by carefully prying it out of its socket with your fingers or with a blunt, nonconducting object such as a plastic
screwdriver.
When you replace the system battery, orient the new battery with the "+" facing up. Insert the battery into its socket and snap it into place.
System Board
Figure 25. System Board Removal
1 Guide bracket assembly
2 Guide bracket assembly latch
3 Heat sink
1 Battery
2 Socket
CAUTION: There is a danger of the new battery exploding if it is incorrectly installed. Replace the battery only with the same or
equivalent type recommended by the manufacturer. Discard used batteries according to the manufacturer
’s instructions.
