Dell INSPIRON 2600 User Manual
Page 32
2.
Remove the four M2.5 x 4-mm screws at the top of the keyboard.
3.
Lift the keyboard straight up until it clears the top of the bottom case.
4.
Rotate the keyboard forward toward the front of the computer.
5.
Rest the key face of the keyboard on the palm rest.
6.
Pull up on the keyboard connector to disconnect it from the interface connector on the system board.

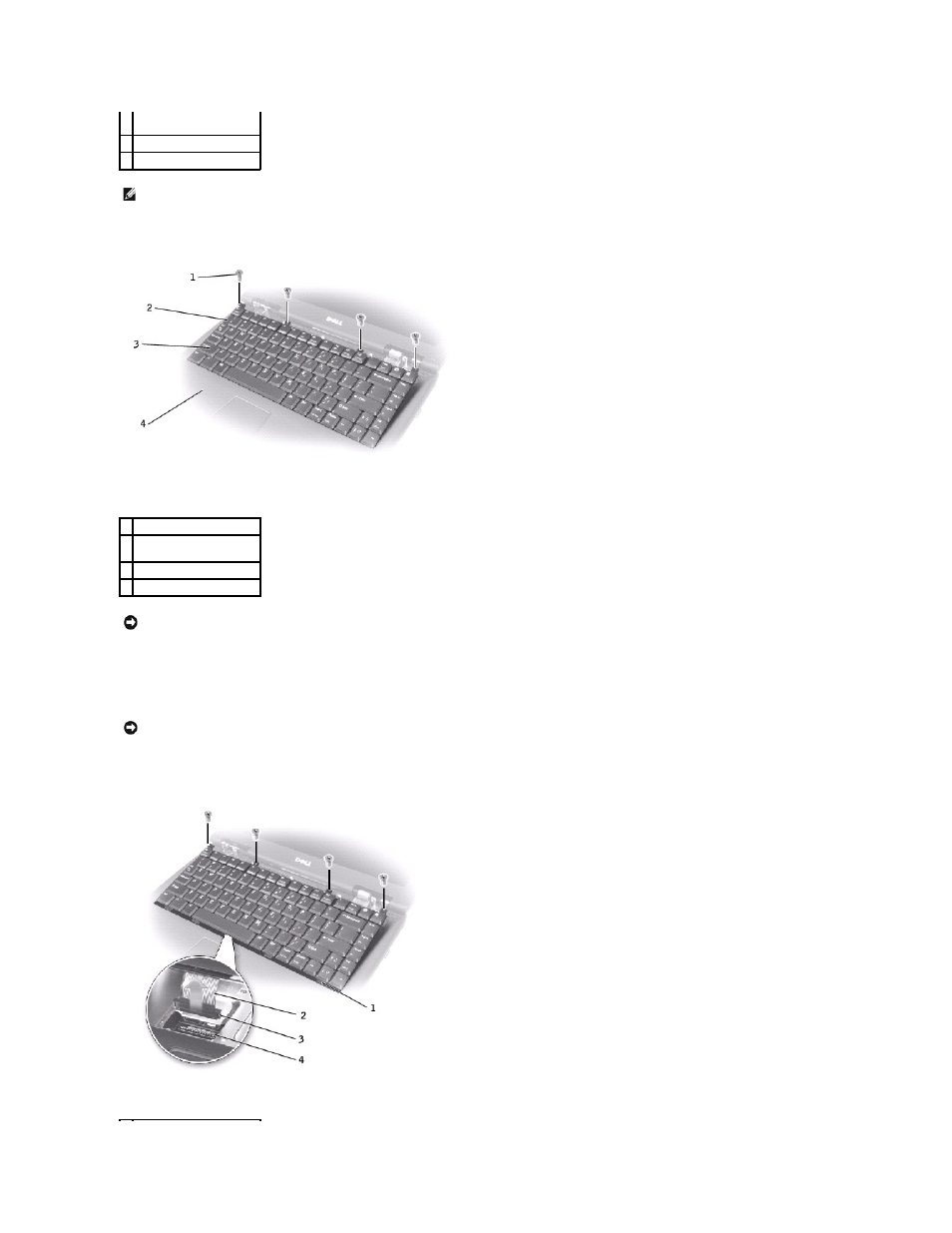

1 scalloped edge of center
control cover
2 center control cover
3 display assembly
HINT:
The M2.5 x 4-mm screws are silver.
1 M2.5 x 4-mm screws (4)
2 scalloped edge of blank
key
3 keyboard
4 palm rest
NOTICE:
The keycaps on the keyboard are fragile, easily dislodged, and time-consuming to replace. Be careful when removing and handling the
keyboard.
NOTICE:
Do not pull on the keyboard flex cable.
