PC Card Reader
Dell™ Latitude™ ATG D620 Service Manual
1.
Follow the instructions in
Before Working Inside Your Computer
.
2.
Remove the hinge cover (see
Hinge Cover
).
3.
Remove any installed media bay device (see
Media Bay Devices
).
4.
Remove the keyboard (see
Keyboard
).
5.
Remove the palm rest (see
Palm Rest
).
6.

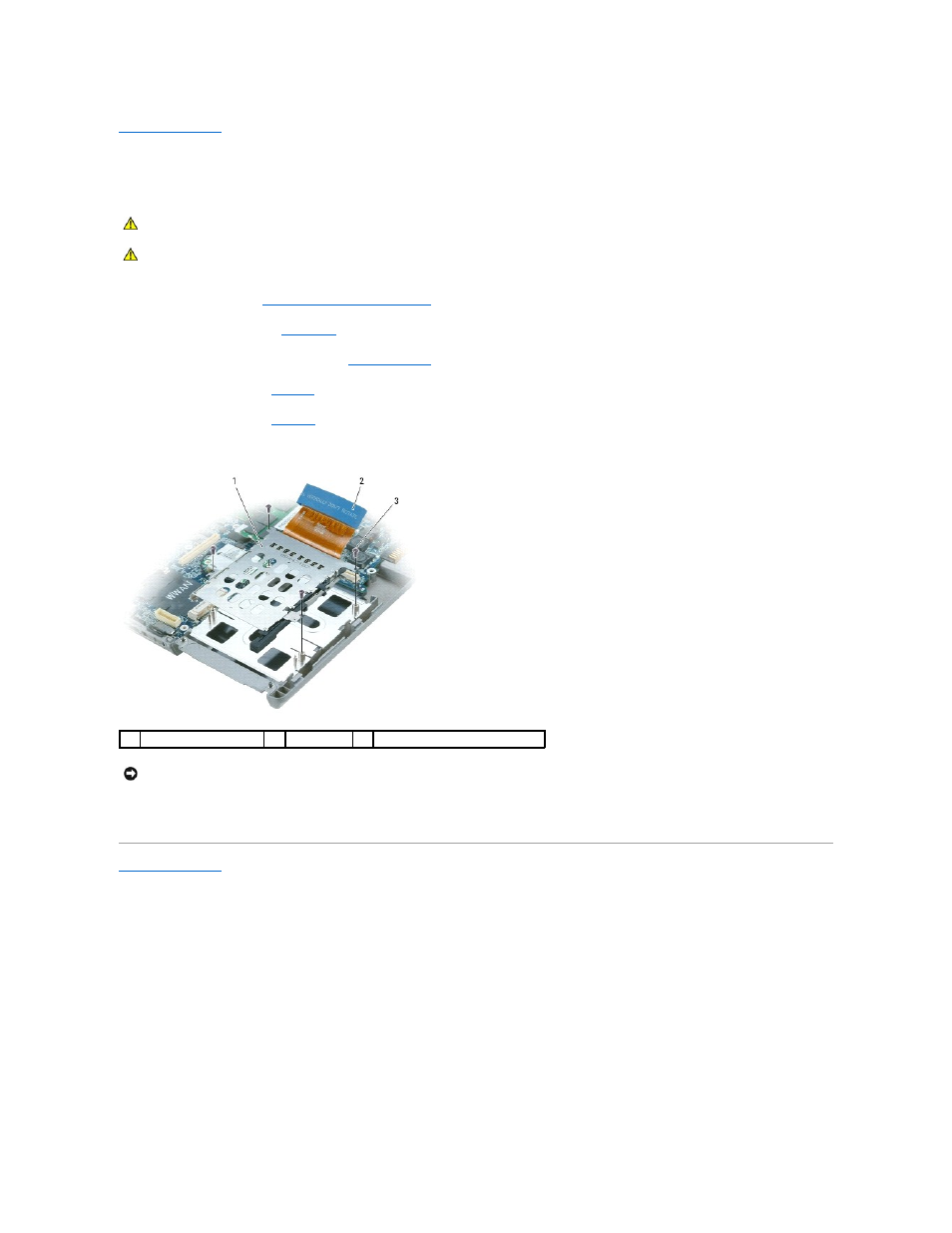

Remove the four M2 x 3-mm screws that secure the PC Card reader to the computer.
7.
Use the pull-tab to disconnect the PC Card reader connector from the system board.
Back to Contents Page
CAUTION:
Before working inside your computer, follow the safety instructions in the Product Information Guide.
CAUTION:
To prevent static damage to components inside your computer, discharge static electricity from your body before you touch any of
your computer's electronic components. You can do so by touching an unpainted metal surface.
1
PC Card reader
2
pull-tab
3
M2 x 3-mm screws (4)
NOTICE:
To avoid damaging the PC Card reader connector, do not rotate or rock the connector as you remove it. Use firm and even pressure to lift the
pull-tab vertically.
