Display Assembly
Dell™ Latitude™ ATG D620 Service Manual
Removing the Display Panel Brackets
Removing the Display Panel Cable
Removing the Display Assembly
1.
Follow the instructions in
Before You Begin
.
2.
Remove the hinge cover (see
Hinge Cover
).
3.
Remove the keyboard (see
Keyboard
).
4.
Pull straight up on the pull-tab that is attached to the display-feed flex cable to disconnect the cable from the system board.
5.
Disconnect the antenna cables from their card(s) (see
Communications Cards
).
6.
Carefully remove the antenna cables and the display cable from their routing guides.
7.
Close the display.
8.
Turn the computer upside-down with the back of the computer facing you.
CAUTION:
Before working inside your computer, follow the safety instructions in the Product Information Guide.
CAUTION:
To prevent static damage to components inside your computer, discharge static electricity from your body before you touch any of
your computer's electronic components. You can do so by touching an unpainted metal surface.

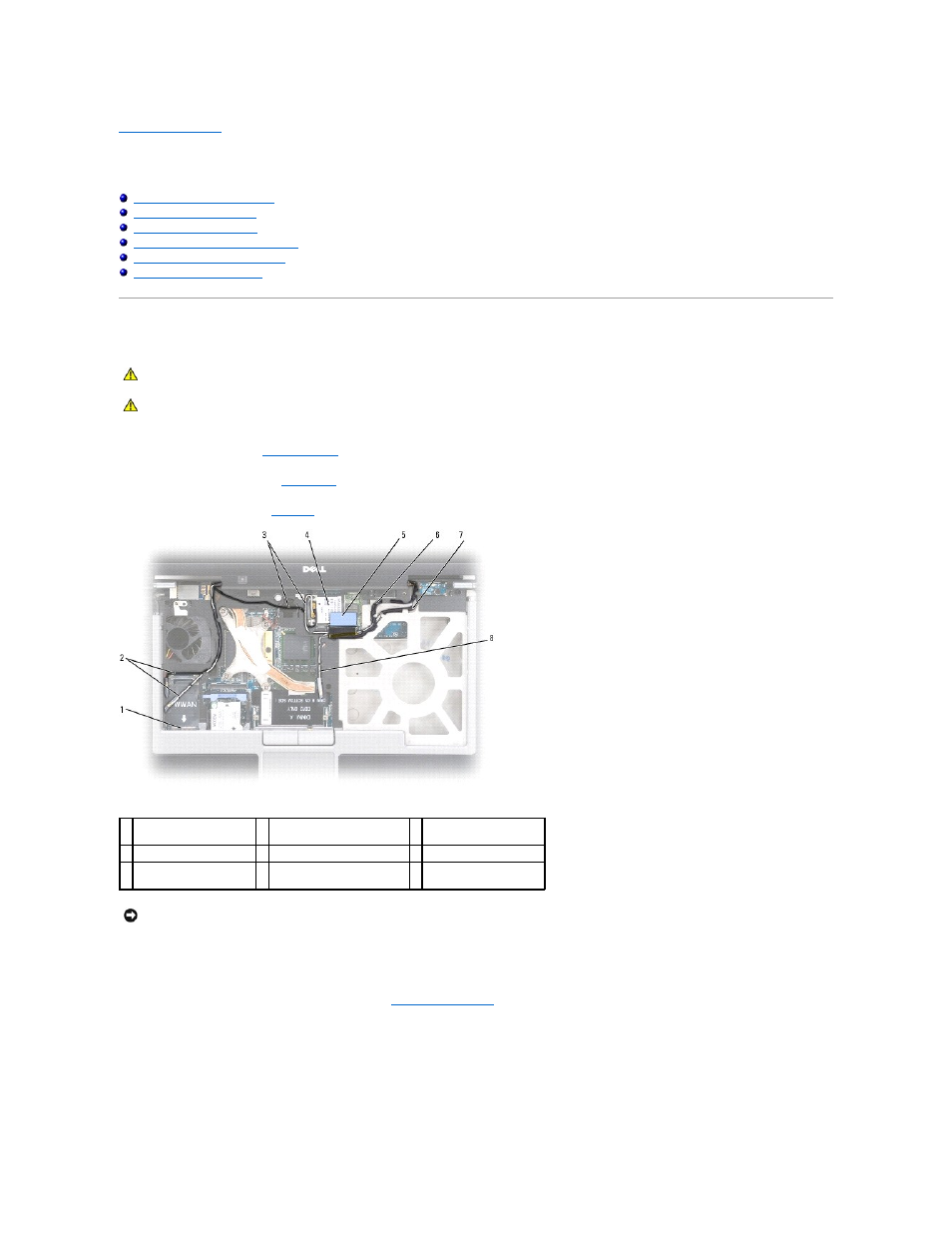

1 WWAN card connector
2 WWAN antenna cables
3 WLAN antenna cables
(black and white)
4 WLAN card
5 pull-tab
6 display cable
7 WLAN antenna cables
(white and gray)
8 WLAN antenna cable
(currently unused) (gray)
NOTICE:
To avoid damage to your computer, use the illustration above when replacing the display assembly to carefully reroute the cables in the
appropriate cable channels. Route the gray and black antenna cables beneath the white antenna cable, and the black display cable on top of the white
antenna cable.
