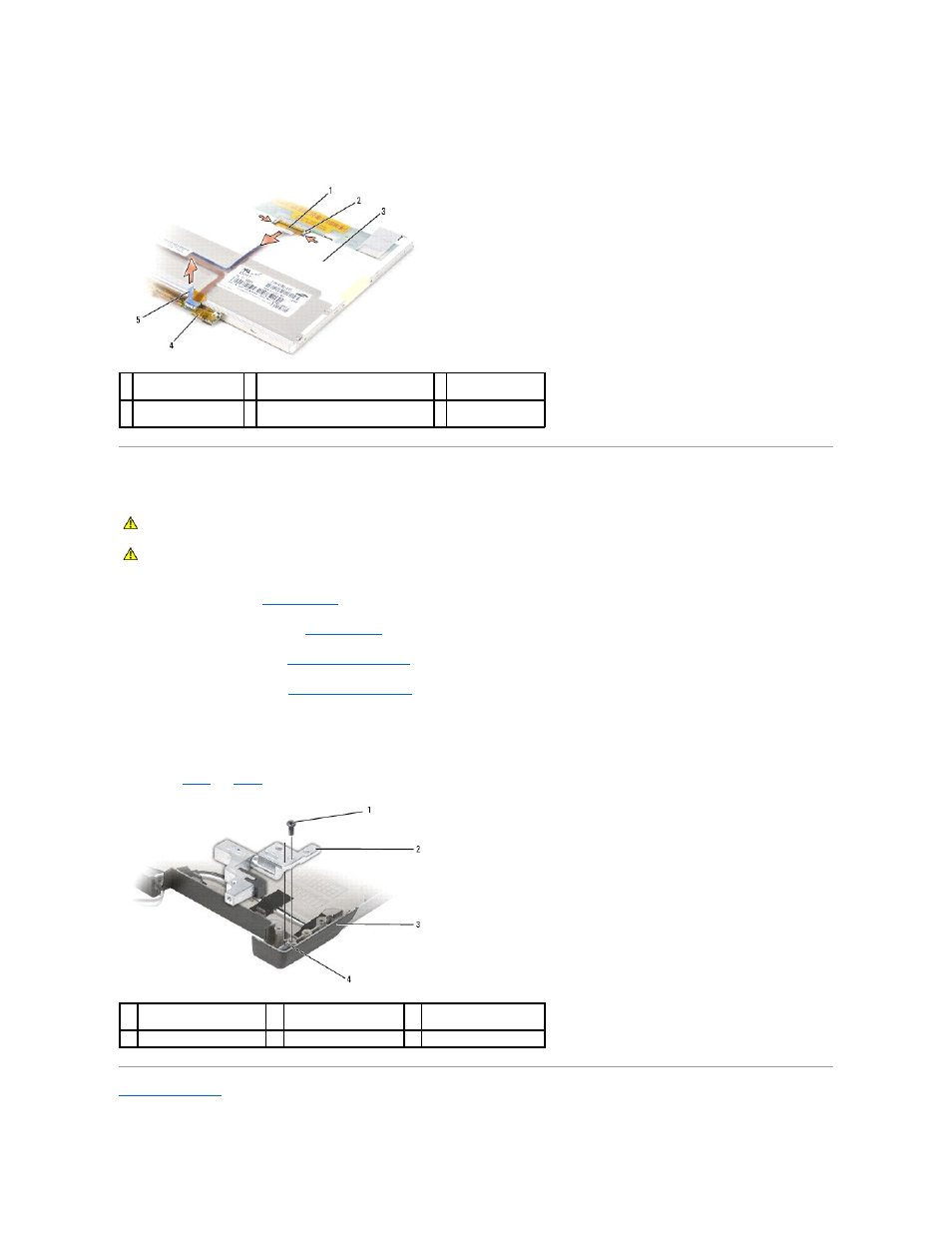

6. Gently pull the pull-tab on the bottom flex-cable connector to release the cable from the inverter board.
7. Squeeze the flex-cable release levers at either side of the top flex-cable connector, releasing the connector.
Removing the Display Hinges
1. Follow the instructions in Before You Begin .
2. Remove the display assembly (see Display Assembly ).
3. Remove the display bezel (see Removing the Display Bezel ).
4. Remove the display Panel (see Removing the Display Panel ).
5. Remove the M2.5 x 5-mm screw from the right display hinge.
6. Lift the right display hinge off the two alignment pins and out of the display back cover.
7. Repeat step 5 and step 6 for the left display hinge.
Back to Contents Page
1 top flex-cable
connector
2 flex-cable release levers (2) 3 back of display
panel
4 inverter board 5 pull-tab on bottom flex-cable
connector
CAUTION: Before working inside your computer, follow the safety instructions in the Product Information Guide.
CAUTION: To prevent static damage to components inside your computer, discharge static electricity from your body before you touch any of
your computer's electronic components. You can do so by touching an unpainted metal surface.
1 M2.5 x 5-mm screw 2 display hinges (2)
(left and right) 3 display back cover
4 alignment pin
