Page 14
5.
Lift the display panel a few inches from the display back cover.
6.
Draw the LED ribbon-cable release tab away from the display panel to release the ribbon cable, and lift the display panel fully from the display back
cover.

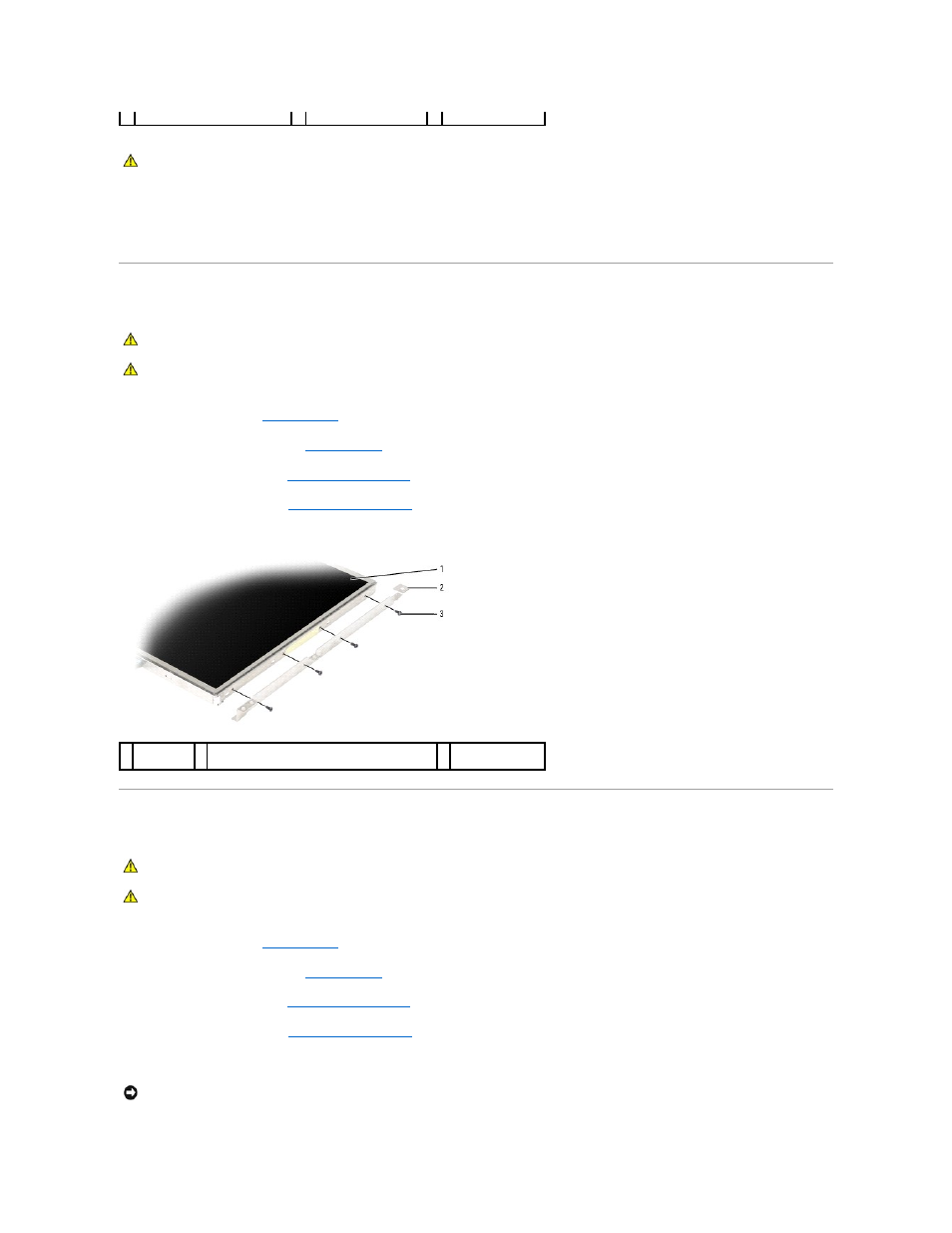

Removing the Display Panel Brackets
1.
Follow the instructions in
Before You Begin
.
2.
Remove the display assembly (see
3.
).
4.
Remove the display panel (see
5.
Remove the four M2 x 3-mm screws from each side of the display panel.
Removing the Display Panel Cable
1.
Follow the instructions in
Before You Begin
.
2.
Remove the display assembly (see
3.
).
4.
Remove the display panel (see
5.
Turn over the display panel, placing it on a clean surface.
4 LED ribbon-cable release tab
5 LED ribbon cable
6 bracket tabs (4)
CAUTION:
To avoid damage to your display panel, handle the panel by the bracket tabs only.
CAUTION:
Before working inside your computer, follow the safety instructions in the Product Information Guide.
CAUTION:
To prevent static damage to components inside your computer, discharge static electricity from your body before you touch any of
your computer's electronic components. You can do so by touching an unpainted metal surface.
1 display
panel
2 display panel brackets (2) (left and right of
display panel)
3 M2 x 3-mm screws
(4)
CAUTION:
Before working inside your computer, follow the safety instructions in the Product Information Guide.
CAUTION:
To prevent static damage to components inside your computer, discharge static electricity from your body before you touch any of
your computer's electronic components. You can do so by touching an unpainted metal surface.
NOTICE:
To avoid damage to the computer when replacing the bottom flex cable, gently support the bottom of the inverter board with one finger as
you reseat the bottom flex-cable connector. Do not bend the inverter board.
