Palm Rest
Dell™ Latitude™ ATG D620 Service Manual
1.
Follow the instructions in
Before You Begin
.
2.
Remove the hinge cover (see
Hinge Cover
).
3.
Remove any installed media bay device (see
Media Bay Devices
).
4.
Remove the keyboard (see
Keyboard
).
5.
Remove the display assembly (see
Display Assembly
).
6.
Disconnect the coin-cell battery from the system board (see
Coin-Cell Battery
).
7.

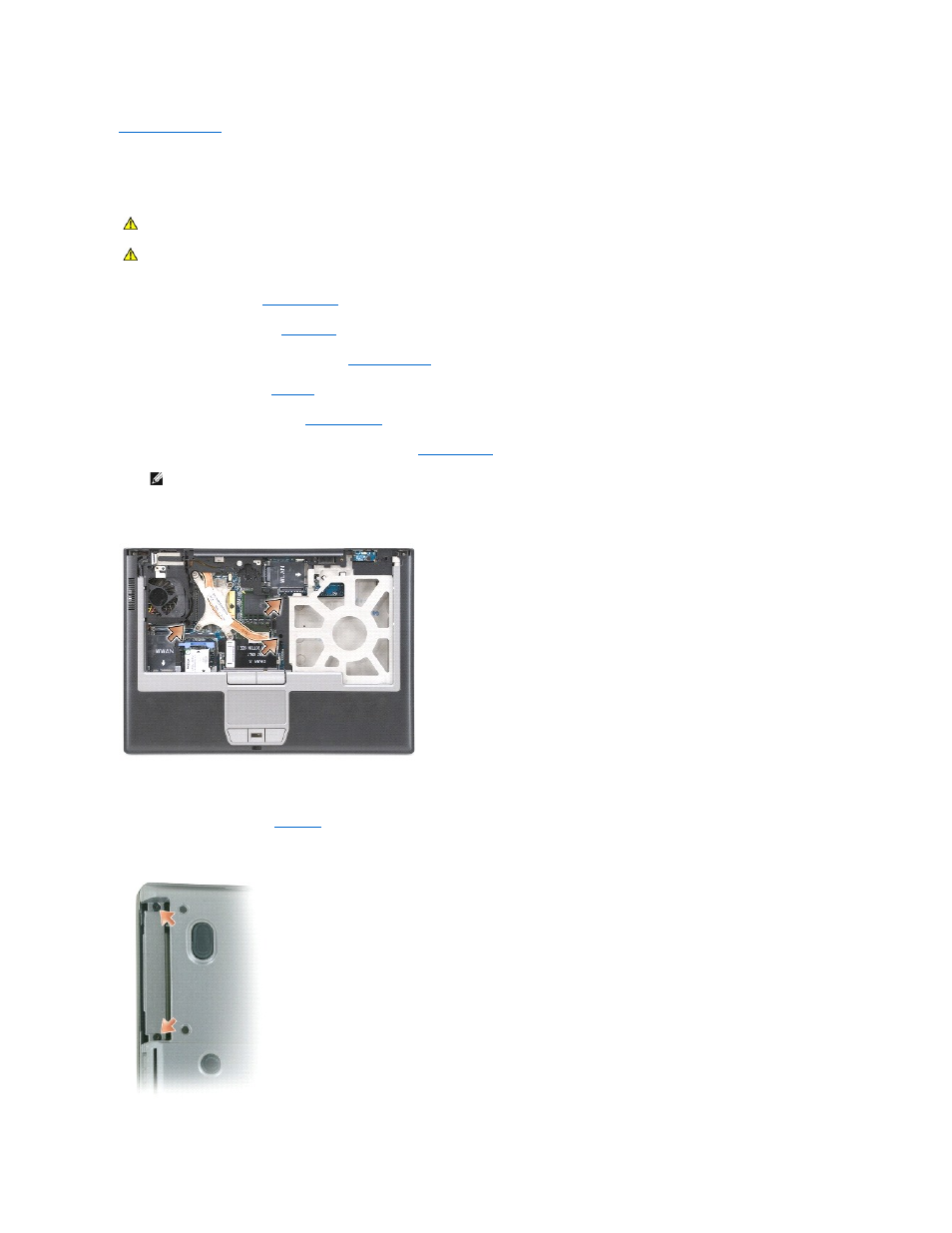

Remove the three M2.5 x 8-mm screws labeled "P" from the top of the palm rest.
8.
Turn the computer upside-down.
9.
Remove the hard drive (see
Hard Drive
).
10.
Loosen the two captive screws located at the front of the hard drive bay.
CAUTION:
Before working inside your computer, follow the safety instructions in the Product Information Guide.
CAUTION:
To prevent static damage to components inside your computer, discharge static electricity from your body before you touch any of
your computer's electronic components. You can do so by touching an unpainted metal surface.
NOTE:
You can leave the coin-cell battery in place (on the palm rest) unless you are installing a replacement palm rest, in which case you need to
remove the coin-cell battery and place it in the replacement palm rest.
