b) SD card
c) base cover
d) keyboard
e) palmrest
f) display assembly
g) power connector
h) system board
3.
4.

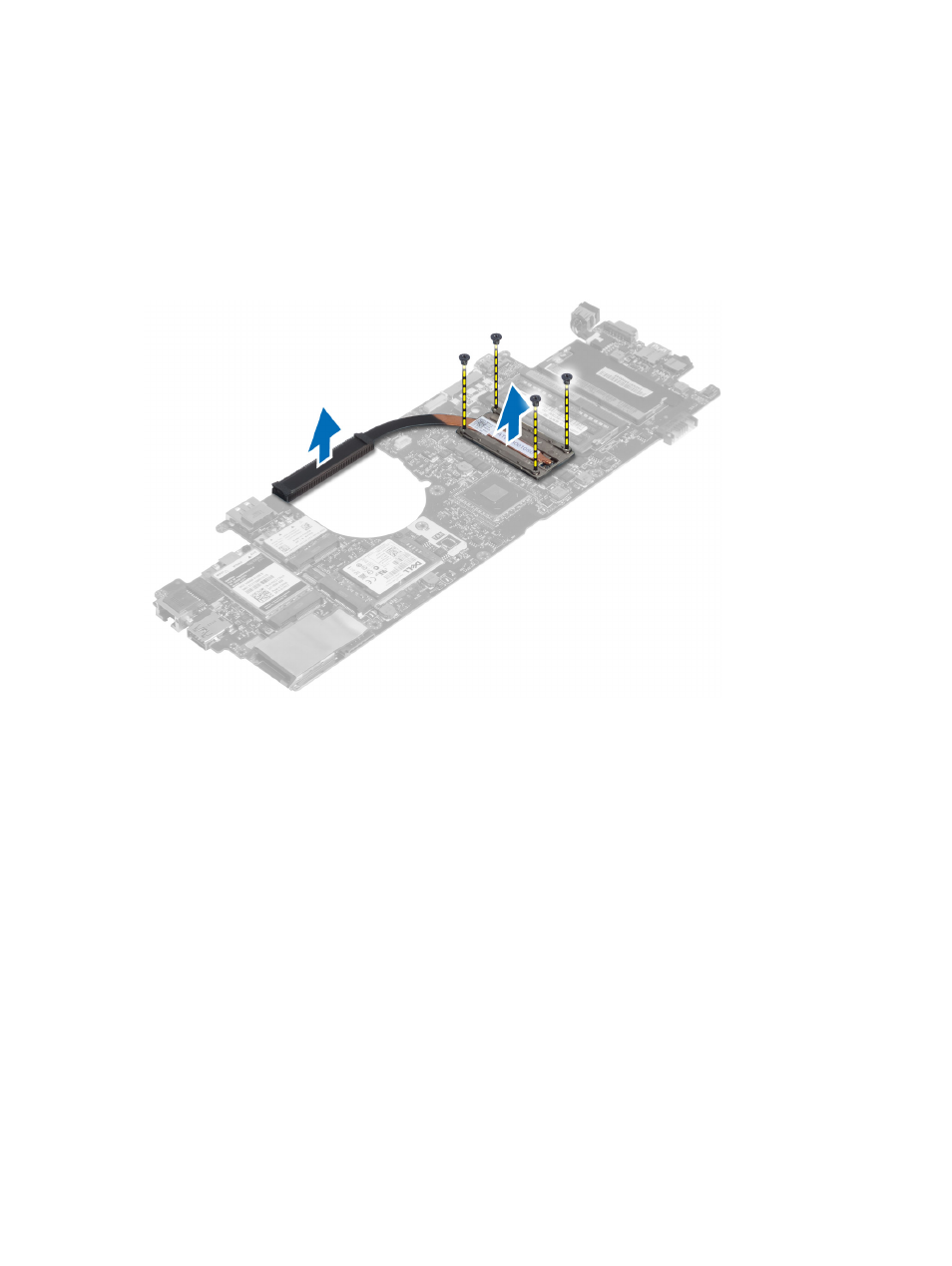

Remove the screws that secure the thermal module to the system board and lift it from the system board.
Installing the Thermal Module
1. Place the thermal module on the system board.
2. Tighten the screws to secure the thermal module to the system board.
3. Install:
a) system board
b) power connector
c) display assembly
d) palmrest
e) keyboard
f) base cover
g) SD card
h) battery
4. Follow the procedures in After Working Inside Your Computer .
