Dell Latitude 6430u (Late 2012) - Manual (Page 37)

e) palmrest assembly
f) display assembly
g) system board
3. Disconnect the power-connector cable from the computer.
Installing the Power Connector
1. Connect the power-connector cable to the computer.
2. Install:
a) system board
b) display assembly
c) palmrest assembly
d) keyboard
e) base cover
f) SD card
g) battery
3. Follow the procedures in After Working Inside Your Computer .
Removing the System Board
1. Follow the procedures in Before Working Inside Your Computer .
2. Remove:
a) battery
b) SD card
c) base cover
d) keyboard
e) palmrest assembly
f) sniffer board
g) display assembly

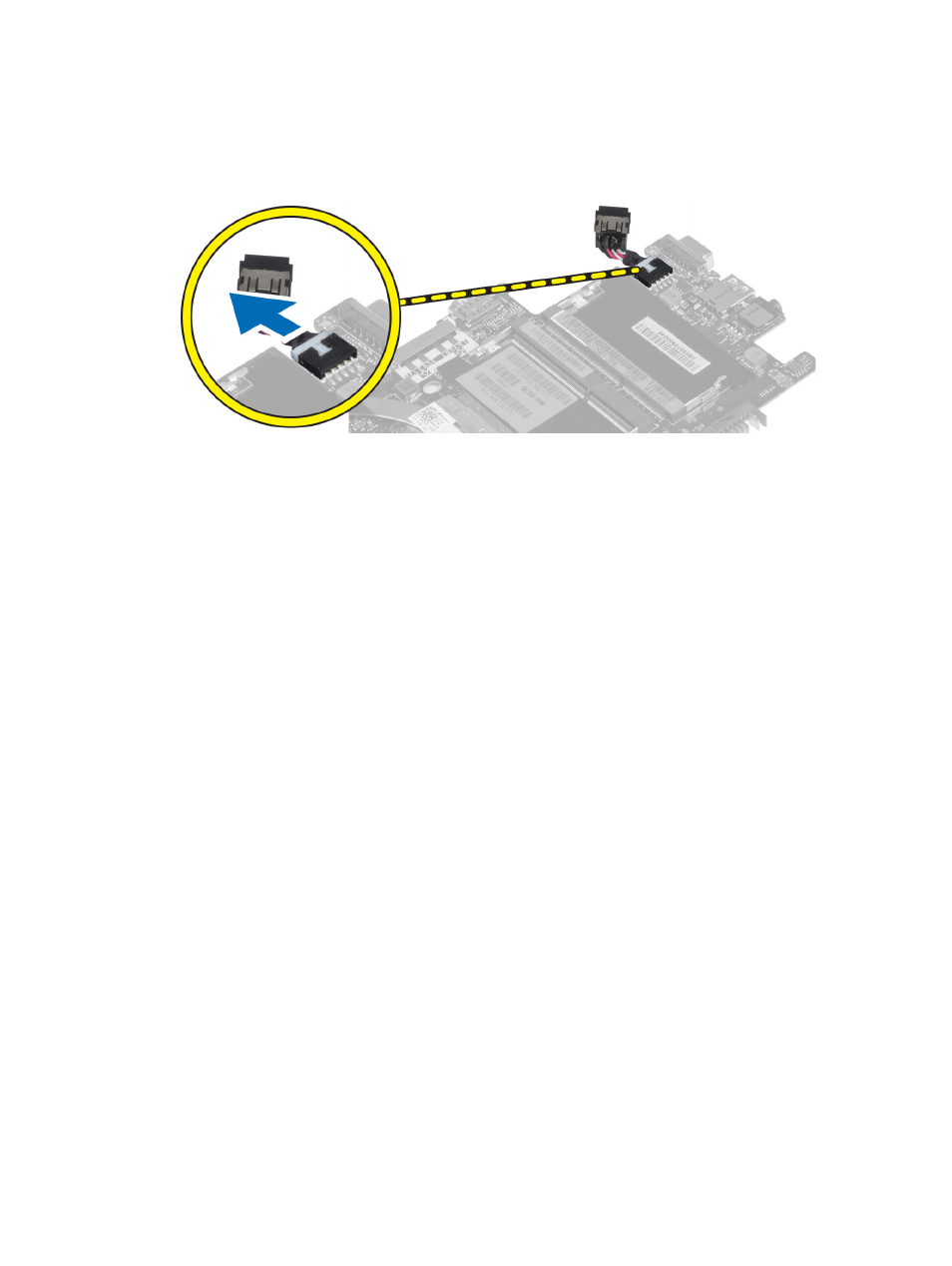

3. Disconnect the system-fan cable.
37
