a) palmrest assembly
b) keyboard
c) base cover
d) SD card
e) battery
5. Follow the procedures in After Working Inside Your Computer .
Removing the Hall Sensor
1. Follow the procedures in Before Working Inside Your Computer .
2. Remove:
a) battery
b) SD card
c) base cover
d) keyboard
e) palmrest assembly

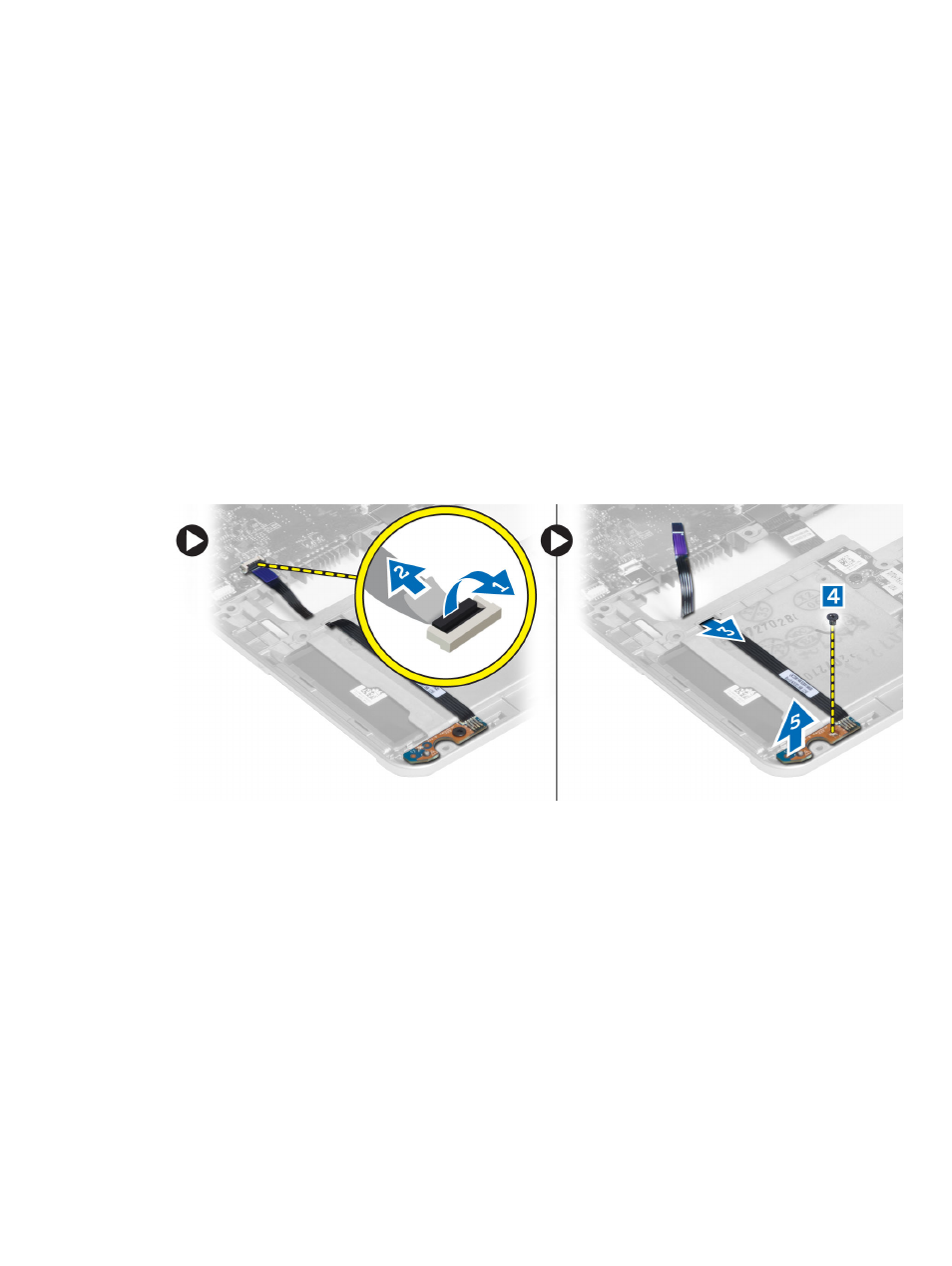

3. Disconnect the hall-sensor cable and remove it from the routing channel.
4. Remove the screw that secures the hall sensor to the computer and remove it.
Installing the Hall Sensor
1. Place the hall sensor in its place on the computer.
2. Tighten the screw to secure the hall sensor to the computer.
3. Route and connect the hall-sensor cable.
4. Remove:
a) palmrest assembly
b) keyboard
c) base cover
d) SD card
e) battery
5. Follow the procedures in After Working Inside Your Computer .
