Removing the Power LED Board
1. Follow the procedures in Before Working Inside Your Computer .
2. Remove:
a) battery
b) display bezel
c) display panel

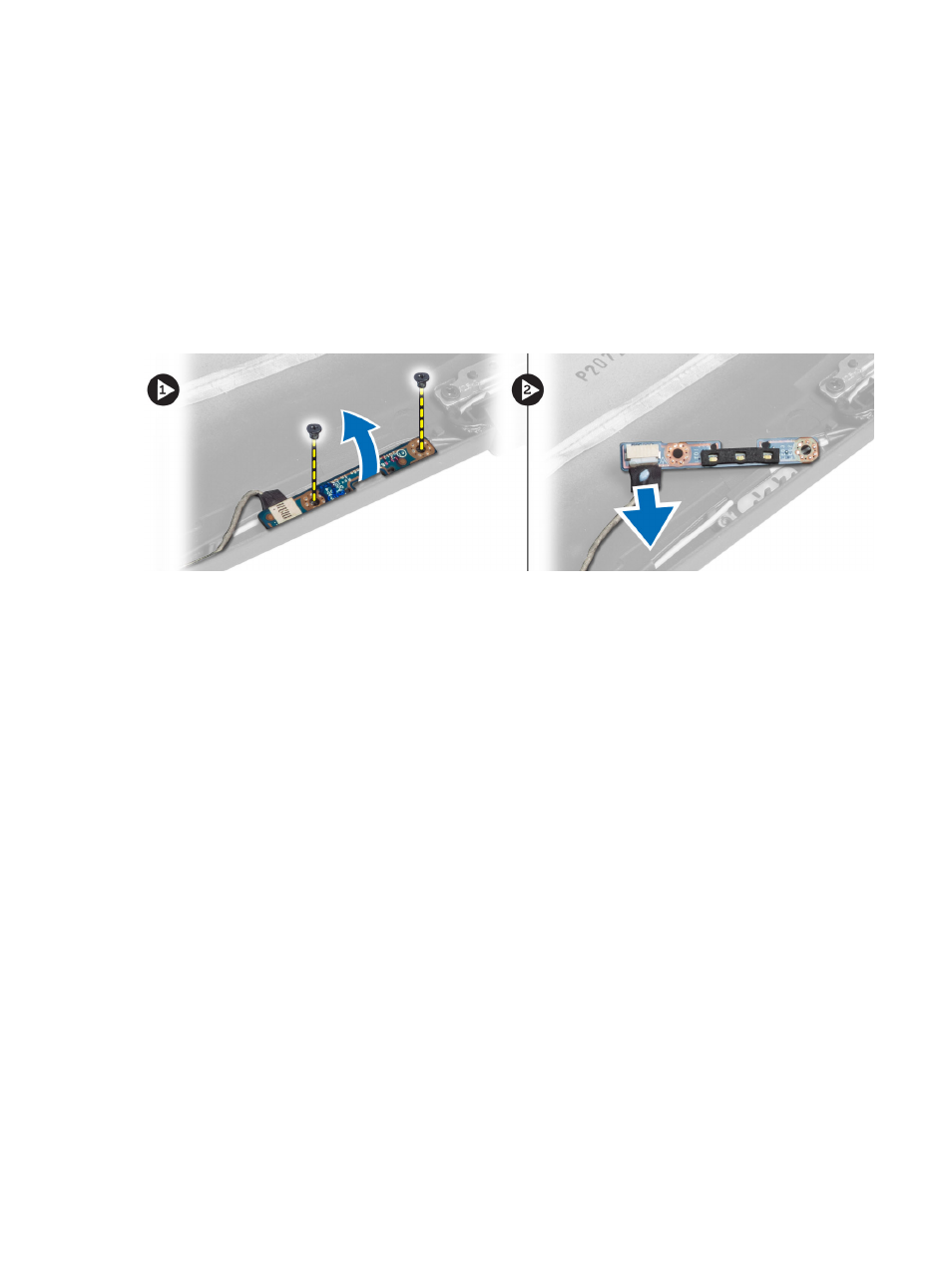

3. Remove the screws that secure the power LED board to the computer and flip the power LED board over.
4. Disconnect the power LED cable from the power LED board.
Installing the Power LED Board
1. Connect the power LED cable to the power LED board.
2. Place the power LED board in its place on the computer.
3. Tighten the screws to secure the power LED board to the computer.
4. Install:
a) display panel
b) display bezel
c) battery
5. Follow the procedures in After Working Inside Your Computer .
Removing the Camera
1. Follow the procedures in Before Working Inside Your Computer .
2. Remove:
a) battery
b) display bezel
3. Disconnect the LVDS and camera cable.
4. Remove the screw that secures the camera module in place and remove it.
