c) base cover
d) keyboard
e) palmrest assembly

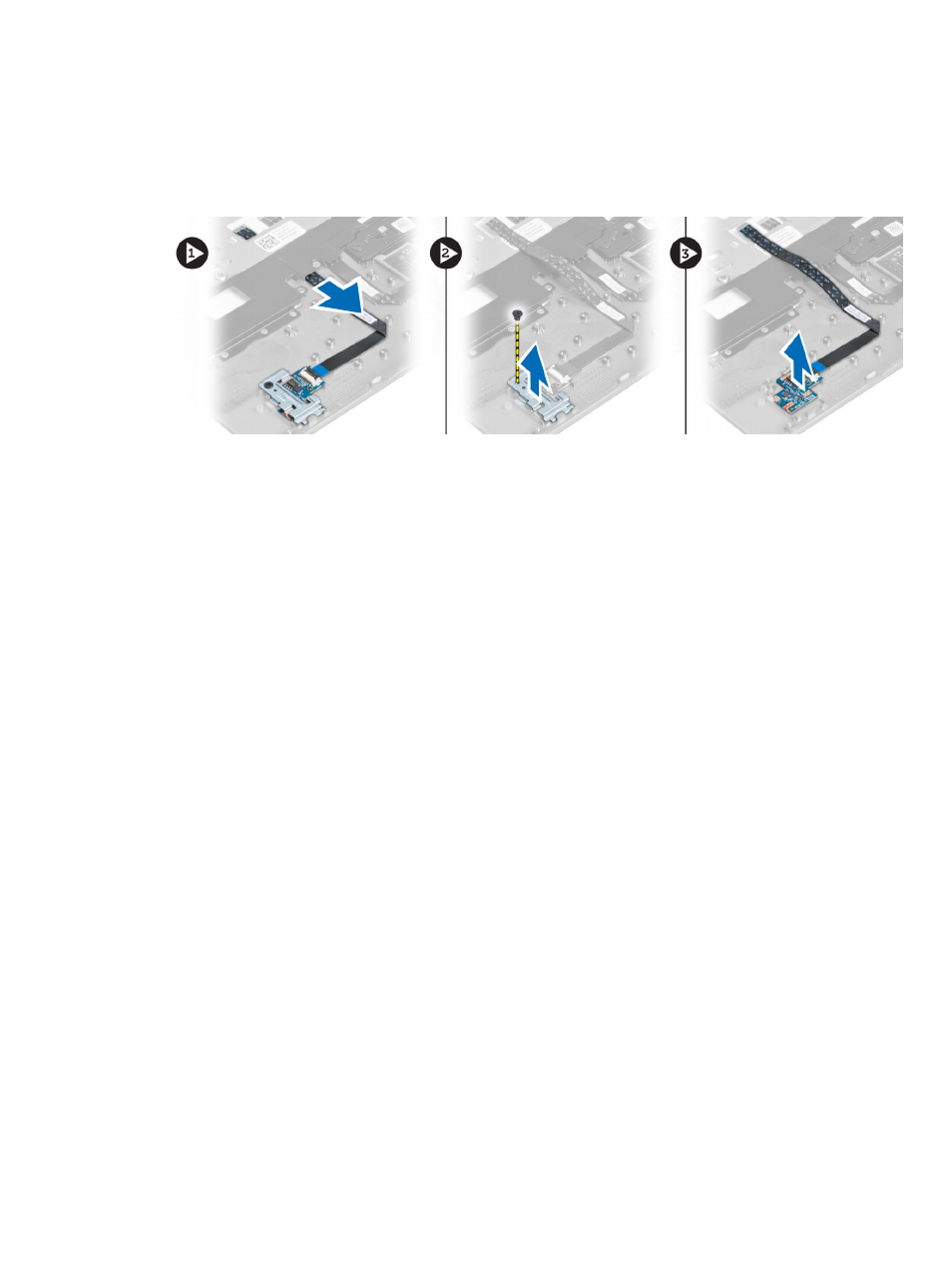

3. Un-route the fingerprint-scanner cable. Remove the screw that secures the fingerprint-scanner bracket to the
computer and remove the fingerprint-scanner bracket. Remove the fingerpint-scanner board from the computer
Installing the Fingerprint-Scanner Board
1. Place the fingerprint-scanner in its slot on the computer.
2. Place the fingerprint-scanner bracket on it and tighten the screw to secure the fingerprint-scanner bracket to the
computer.
3. Route the fingerprint scanner cable.
4. Install:
a) palmrest assembly
b) keyboard
c) base cover
d) SD card
e) battery
5. Follow the procedures in After Working Inside Your Computer .
Removing the Display Bezel
1. Follow the procedures in Before Working Inside Your Computer .
2. Remove the battery.
3. Pry the sides and work around the corners of the display bezel and remove it from the display assembly.
