Speakers
Dell Inspiron™ 6000 Service Manual
Removing the Speakers
1.
Follow the instructions in "
Preparing to Work Inside the Computer
."
2.
Remove the
Mini PCI card
(if applicable) and the
optical drive
.
3.
Remove the hard drive.
4.
Remove the
hinge cover
.
5.
Remove the
keyboard
.
6.
Remove the
display assembly
.
7.
Remove the
palm rest
.
8.
Remove the two M2.5 x 5-mm screws from the speakers (one on each speaker).
9.
Remove the speakers and lift the speaker cable away from the cable guides.
10.
Disconnect the speaker connector from the system board connector.
CAUTION:
Before you perform the following procedures, see the safety instructions in the Product Information Guide.
NOTICE:
To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal surface (such
as the back panel) on the computer.
NOTICE:
To avoid damaging the system board, you must remove the main battery before you begin working inside the computer.
NOTICE:
Handle the speakers with care to avoid damaging them.
NOTE:

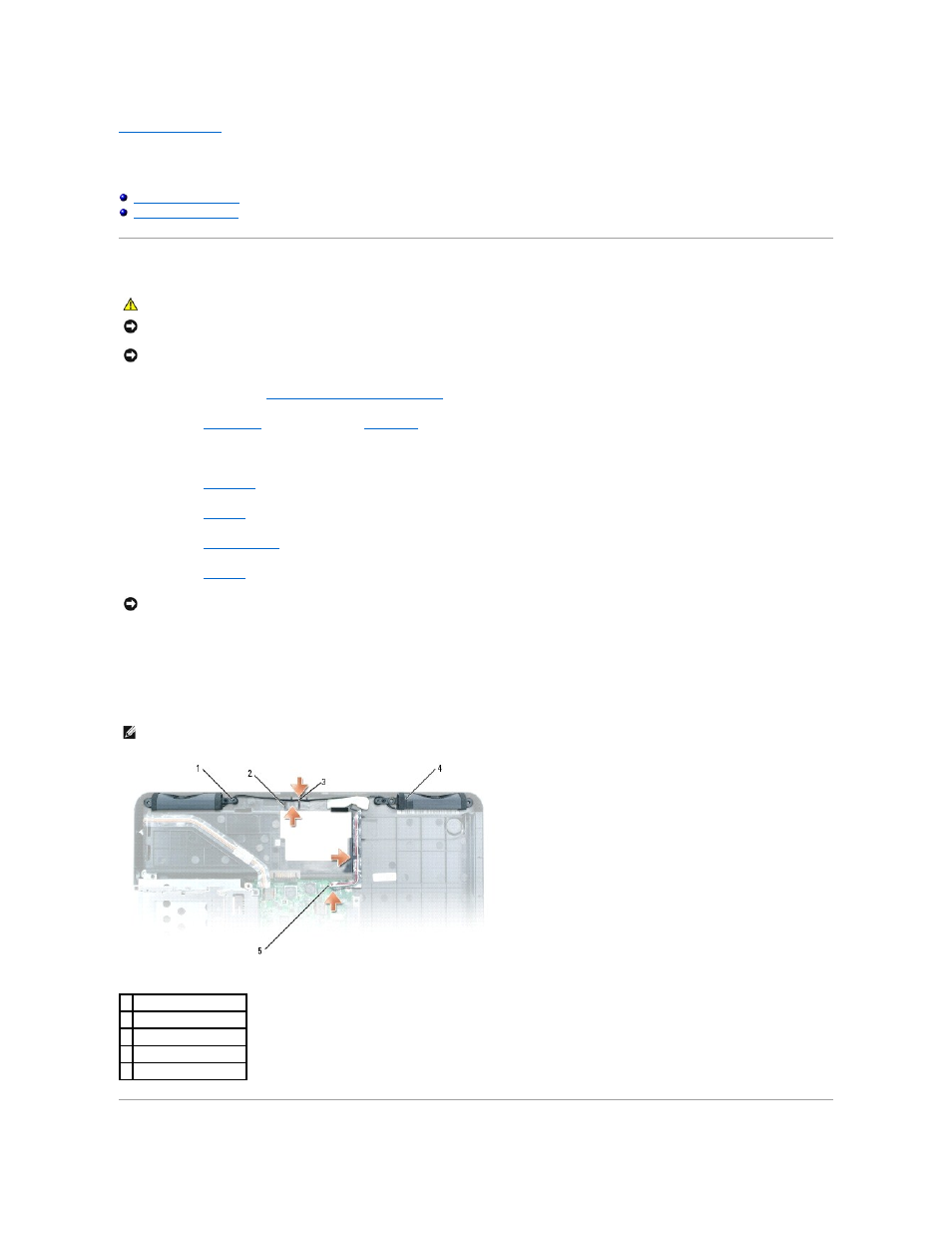

The arrows in the following illustration indicate the routing of the speaker wire.
1 M2.5 x 5-mm screws (2)
2 cable guides (4)
3 speaker cable
4 speakers (2)
5 speaker connector
