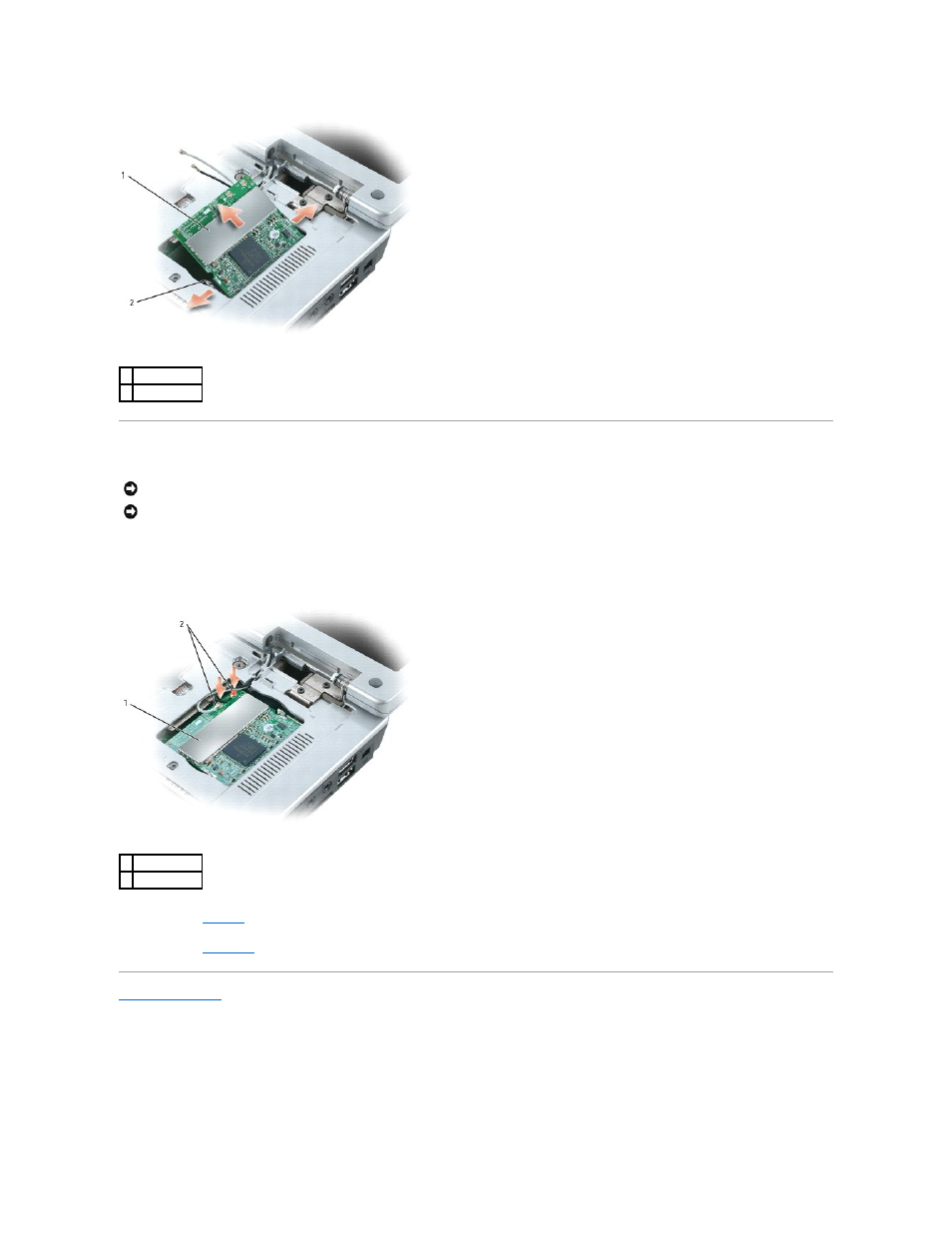

Replacing the Mini PCI Card



1.

Align the Mini PCI card with the connector at a 45-degree angle, and press the Mini PCI card into the connector until it clicks.



2.

Connect the antenna cables to the Mini PCI card.



3.

Replace the

keyboard

.




4.

Replace the

hinge cover

.

Back to Contents Page



1 Mini PCI card

2 metal clips (2)

NOTICE:

To avoid damaging the antenna cables or the Mini PCI card, never place the cables underneath the card.

NOTICE:

The connectors are keyed to ensure correct insertion. If you feel resistance, check the connectors and realign the card.

1 Mini PCI card

2 metal clips (2)
