Dell Dimension 4700 - Manual (Page 47)

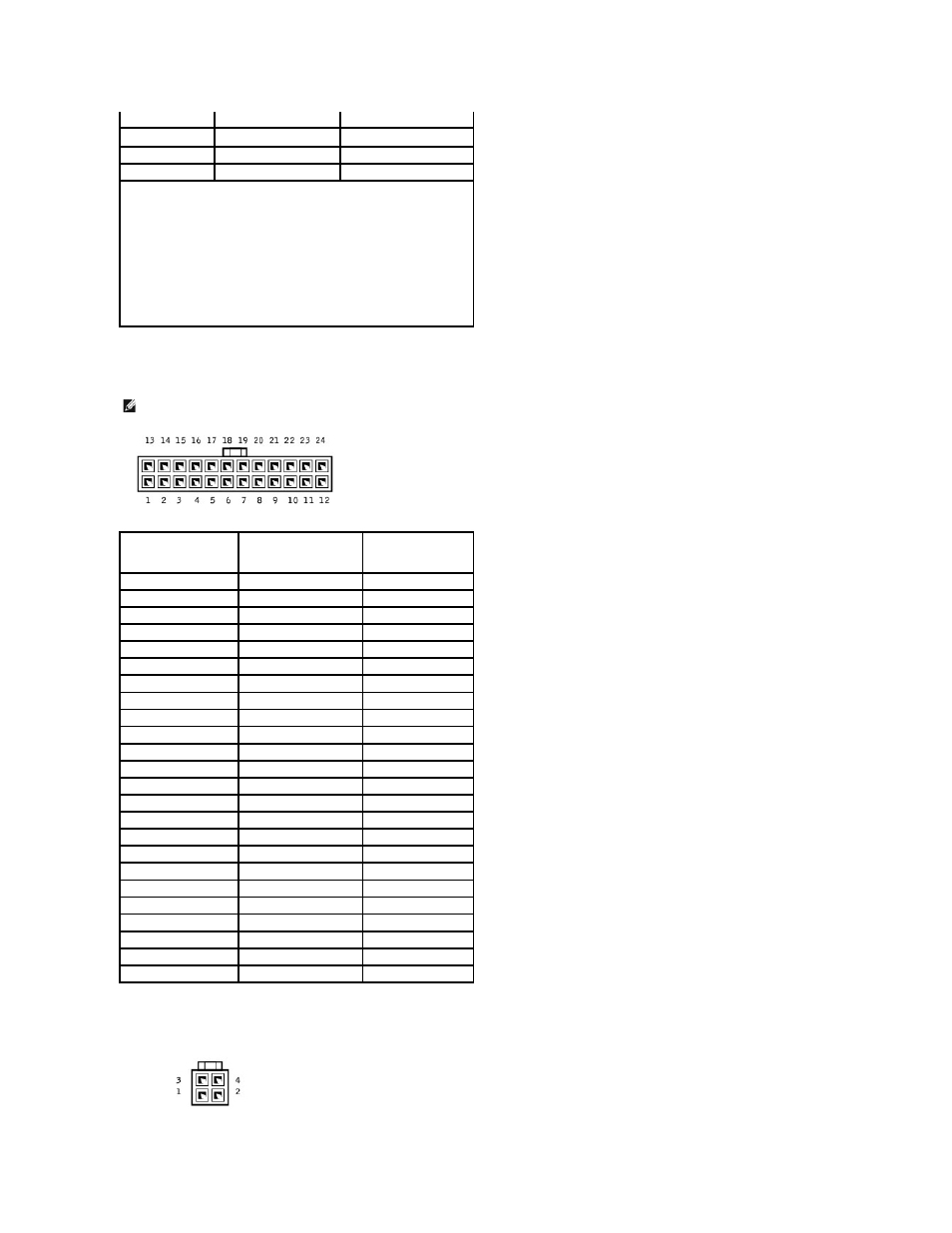

DC Power Connector P1
DC Power Connector P2
+12A VDC 0.0 18.0 3,4
+12B VDC 0.0 18.0 3,4
-12 VDC 0.0 1.0
+5 VFP 0.0 2.0
1 Maximum continuous total DC output cannot exceed 305 W. Maximum
continuous combined load on +5-VDC and +3.3-VDC outputs cannot exceed
150 W.
2 In system applications where +3.3 VDC is not used, these values may be 0
A without affecting the regulation of the other outputs.
3 Maximum +12A and +12B VDC output (up to 19.0 A) will not exceed 15
seconds in duration. Under this condition, tolerance on the +12A and +12B
VDC output, may be +/- 10%.
4 +12A VDC and +12B VDC maximum combined power may not exceed 264W.
NOTE: The +3.3 VDC output wires (orange) must be 16 AWG. All other output wires must be 18 AWG.
Pin Number Signal name Wire Color
1 +3.3 VDC Orange
2 +3.3 VDC Orange
3 COM Black
4 +5 VDC Red
5 COM Black
6 +5 VDC Red
7 COM Black
8 POK Gray
9 +5 VFP Purple
10 +12B VDC White
11 +12B VDC White
12 +3.3 VDC Orange
13 +3.3 VDC Orange
14 -12 VDC Blue
15 COM Black
16 PS_ON Green
17 COM Black
18 COM Black
19 COM Black
20 N/C N/C
21 +5 VDC Red
22 +5 VDC Red
23 +5 VDC Red
24 COM Black
